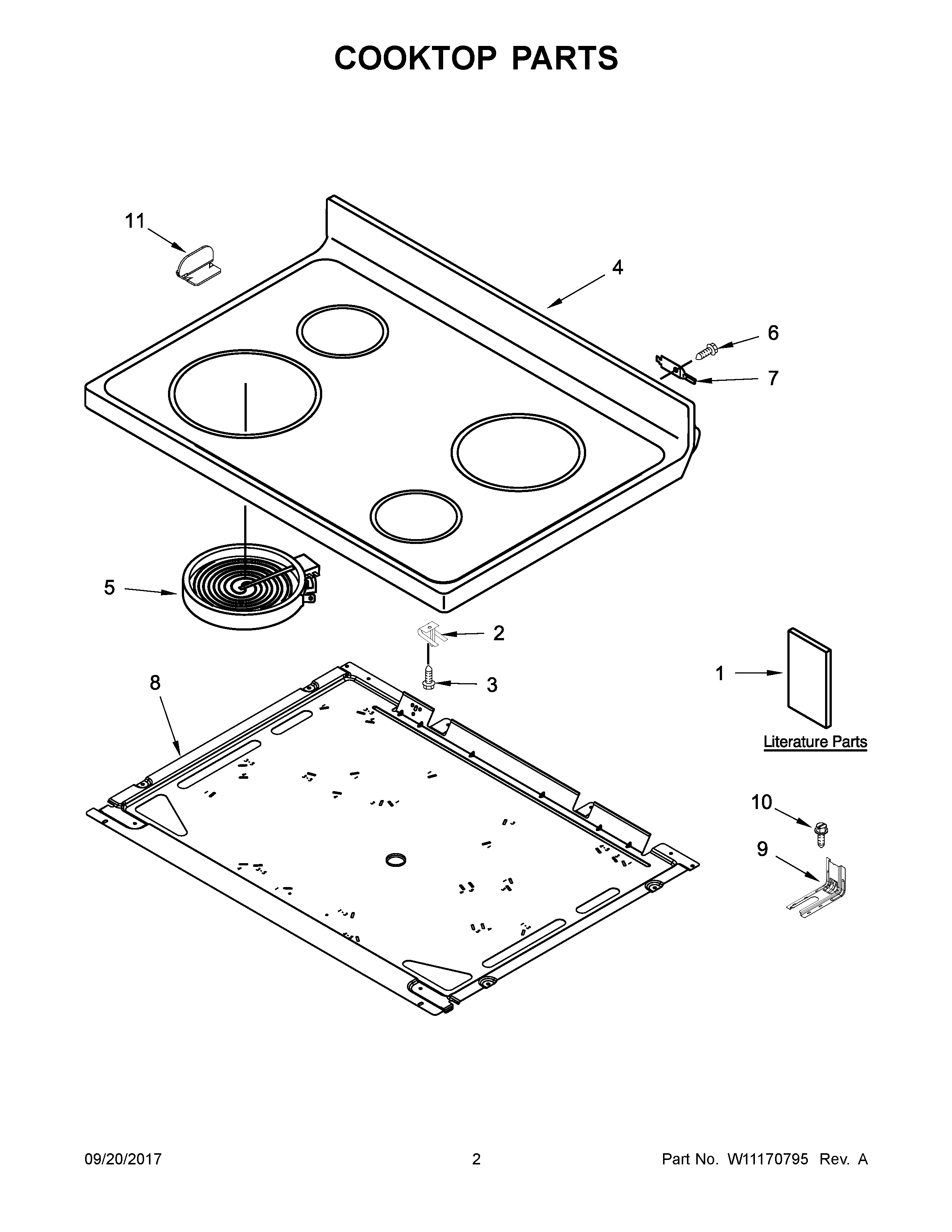

YIES350XW3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10144763 Whirlpool Tie Wire
NI	W11172424 Whirlpool Wire Harness
NI	WP3196154 Whirlpool Screw Assembly
NI	3184020 Whirlpool Oven Wire
NI	W11244557 Whirlpool Screw
NI	Clip, Ground Wire
NI	HARNESS, MAIN
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11226497 Whirlpool Power Cord
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	INSTALLATION INSTRUCTIONS
1A	OWNERS MANUAL
1D	SAFER COOKING TIPS (ENGLISH
1E	Safer Cooking Tips (French)
2	WPW10225448 Whirlpool Spring Assembly
4	W10248202 Whirlpool Cooktop
5	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
5A	WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
6	WP3196557 Whirlpool Screw
7	WP3195060 Whirlpool Cooktop Pin
8	PAN
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11A	W10607642 Whirlpool Clip
11	W10607641 Whirlpool Clip
