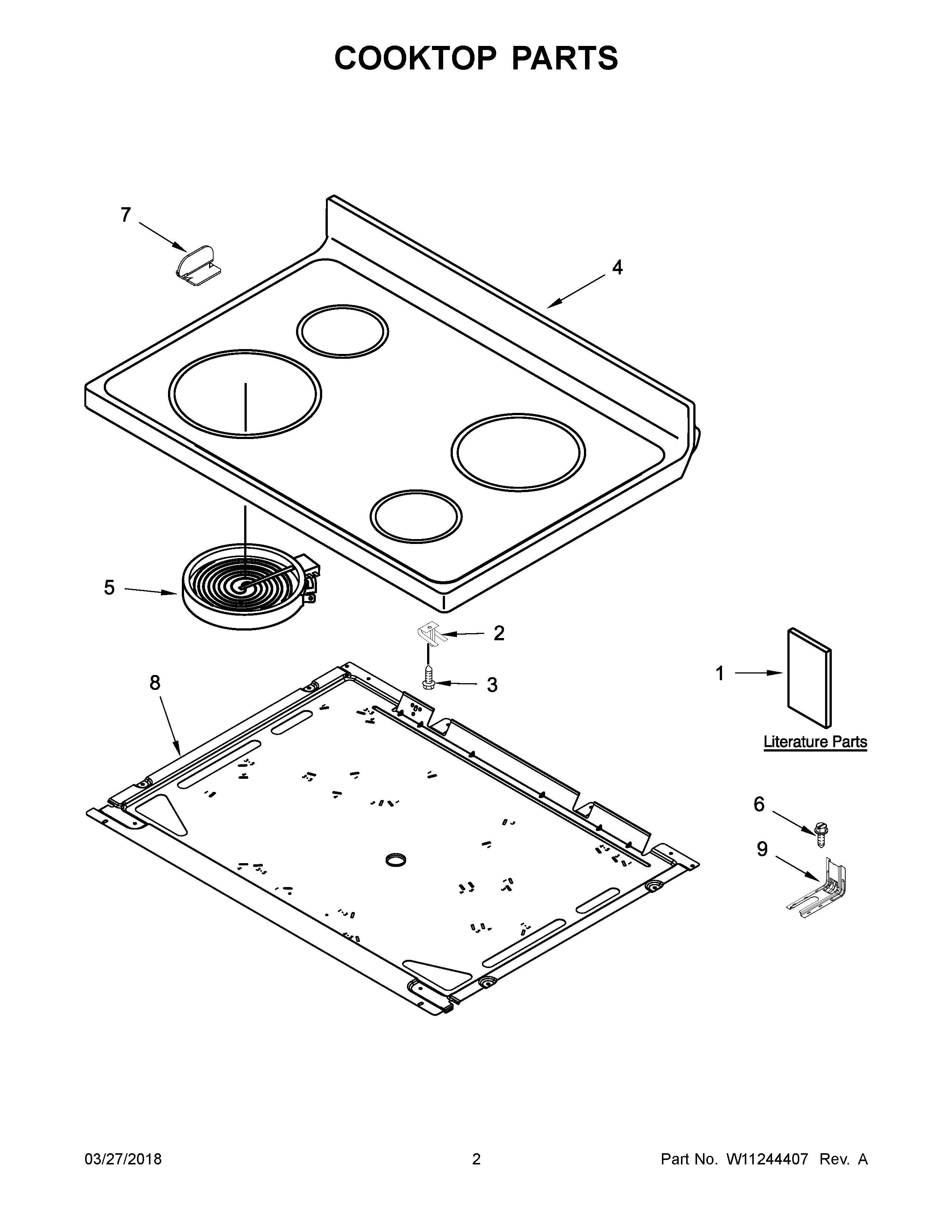

YIES350XW4 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, MAIN
NI	W11172424 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP RIGHT)
1	INSTALLATION INSTRUCTIONS
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1A	USE AND CARE GUIDE
2	WPW10225448 Whirlpool Spring Assembly
3	WP3196557 Whirlpool Screw
4	W10248202 Whirlpool Cooktop
5A	WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
5	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
6	SCREW, ANTI-TIP KIT
7A	W10607642 Whirlpool Clip
7	W10607641 Whirlpool Clip
8	PAN
9	W11447673 Whirlpool Range Tip Anchor
