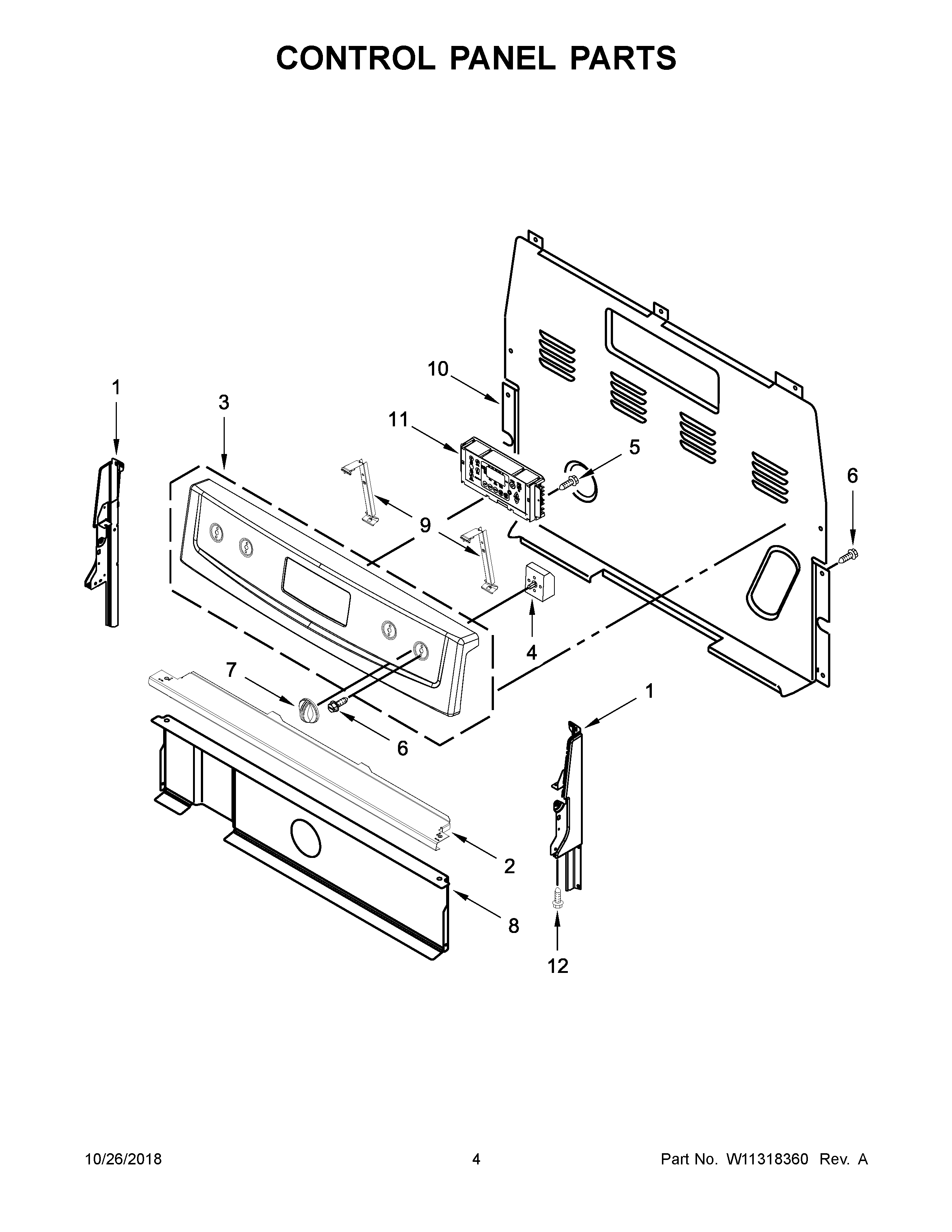

YIES360GW0 03 – CONTROL PANEL PARTS

YIES360GW0 03 – CONTROL PANEL PARTS

Written by

in

YIES360GW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219370 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3W11252172 Whirlpool Control Panel
4AWP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5SCREW
6WP3400882 Whirlpool Screw
7W11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W11536795-includeCORE Whirlpool W11536795 Electronic Control Board + Core
12WP3196175 Whirlpool Screw
