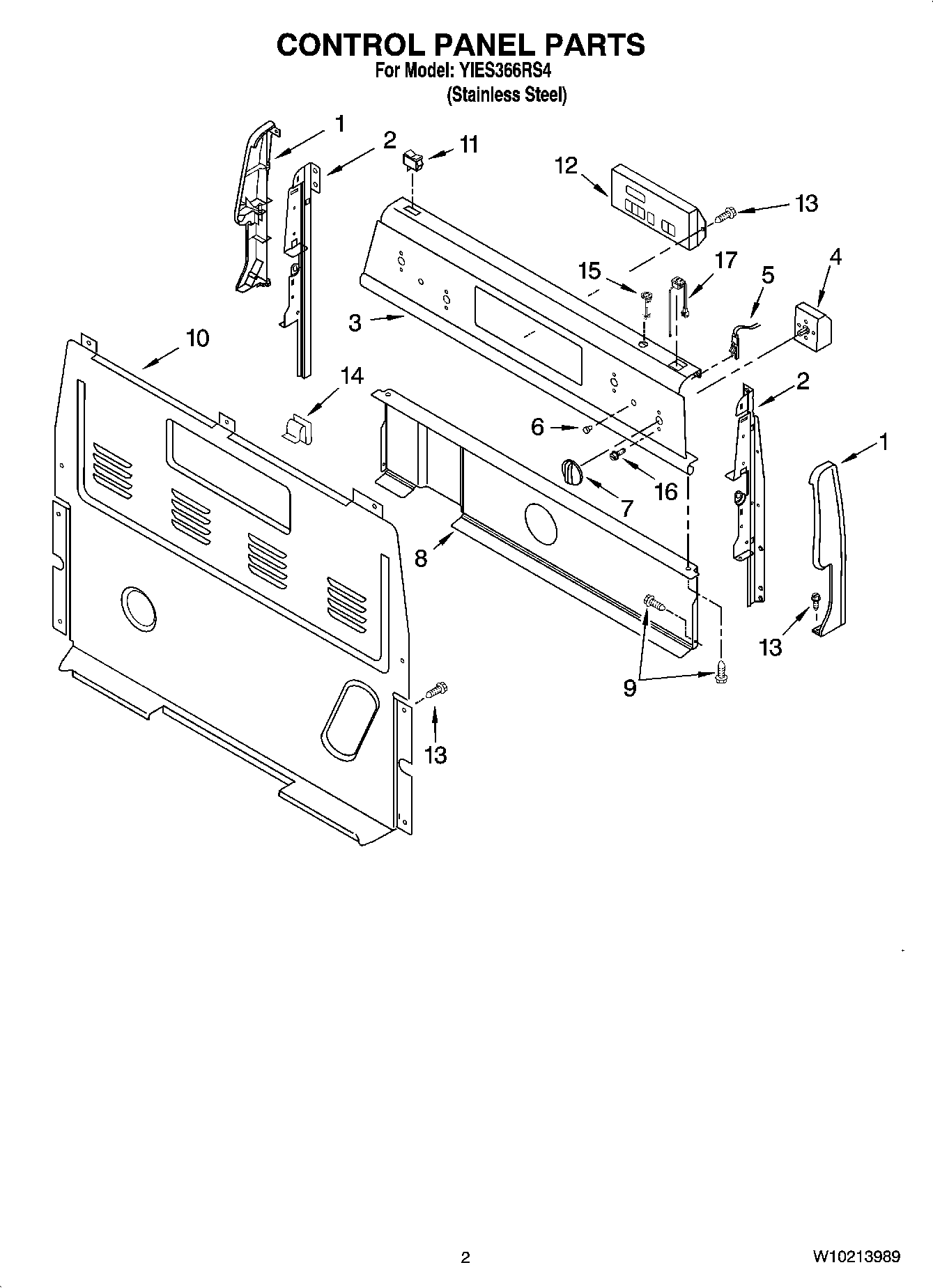

YIES366RS4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
79758786 Whirlpool Oven Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11WP4314961 Whirlpool Lite Switch
12Control, Range
13SCREW
14WP8273564 Whirlpool Clip
15WP9757602 Whirlpool Breaker
16WP3400882 Whirlpool Screw
17Receptacle (Black)
