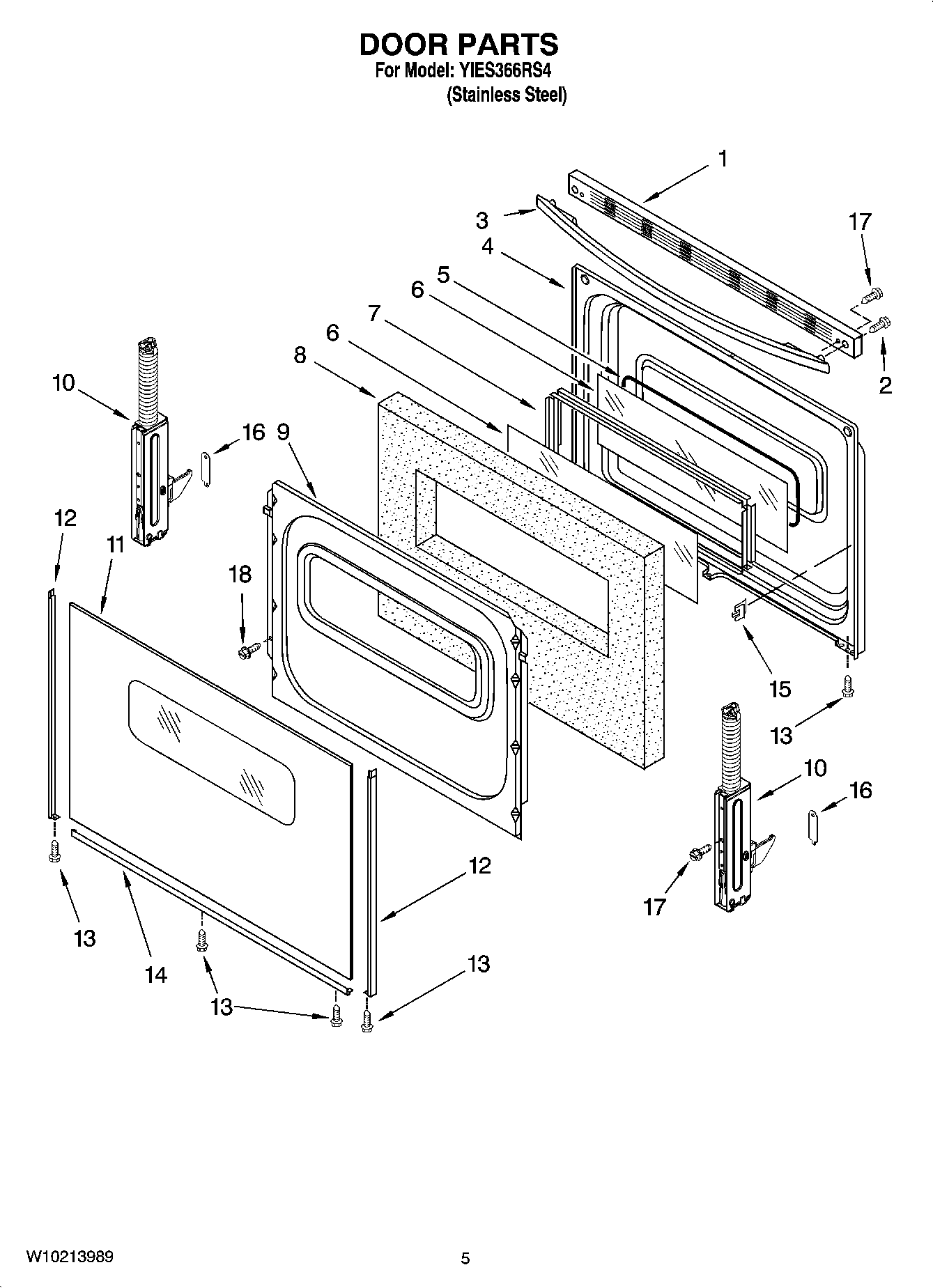

YIES366RS4 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2Mounting Bolt
3Handle, Door
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
11Glass, Outer Door
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
15W10137382 Whirlpool Clip
169761517 Whirlpool Oven Clip Assembly
17W10777162 Whirlpool Screw
18WPW10031790 Whirlpool Screw
