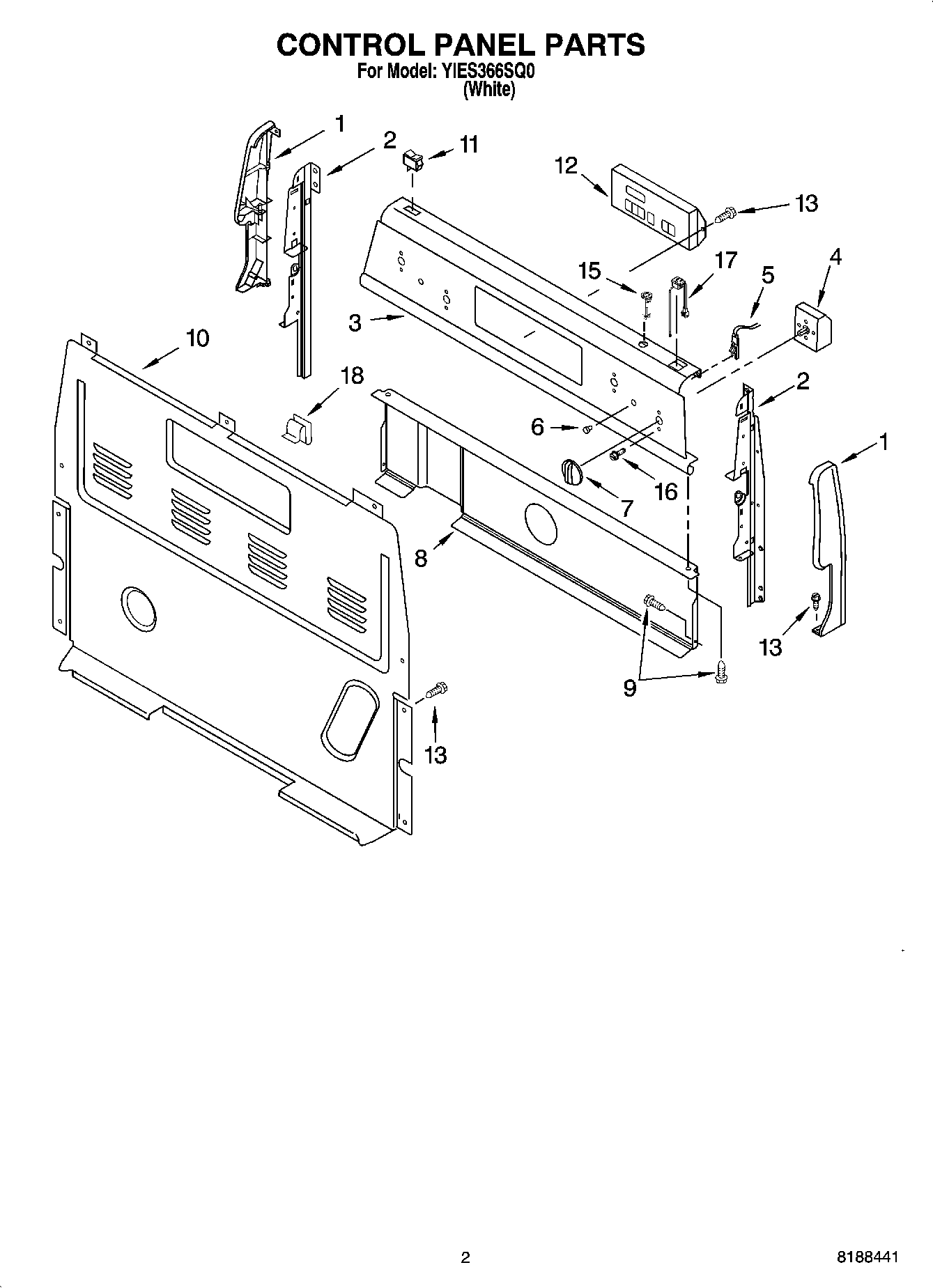

YIES366SQ0 02 – CONTROL PANEL PARTS

YIES366SQ0 02 – CONTROL PANEL PARTS

Written by

in

YIES366SQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Control
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
79758785 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
12Control, Range
13SCREW
15WP9757601 Whirlpool Breaker
16WP3400882 Whirlpool Screw
17Receptacle (2)
18WP8273564 Whirlpool Clip
