YIES426AS0 01 – COOKTOP PARTS

YIES426AS0 01 – COOKTOP PARTS

Written by

in

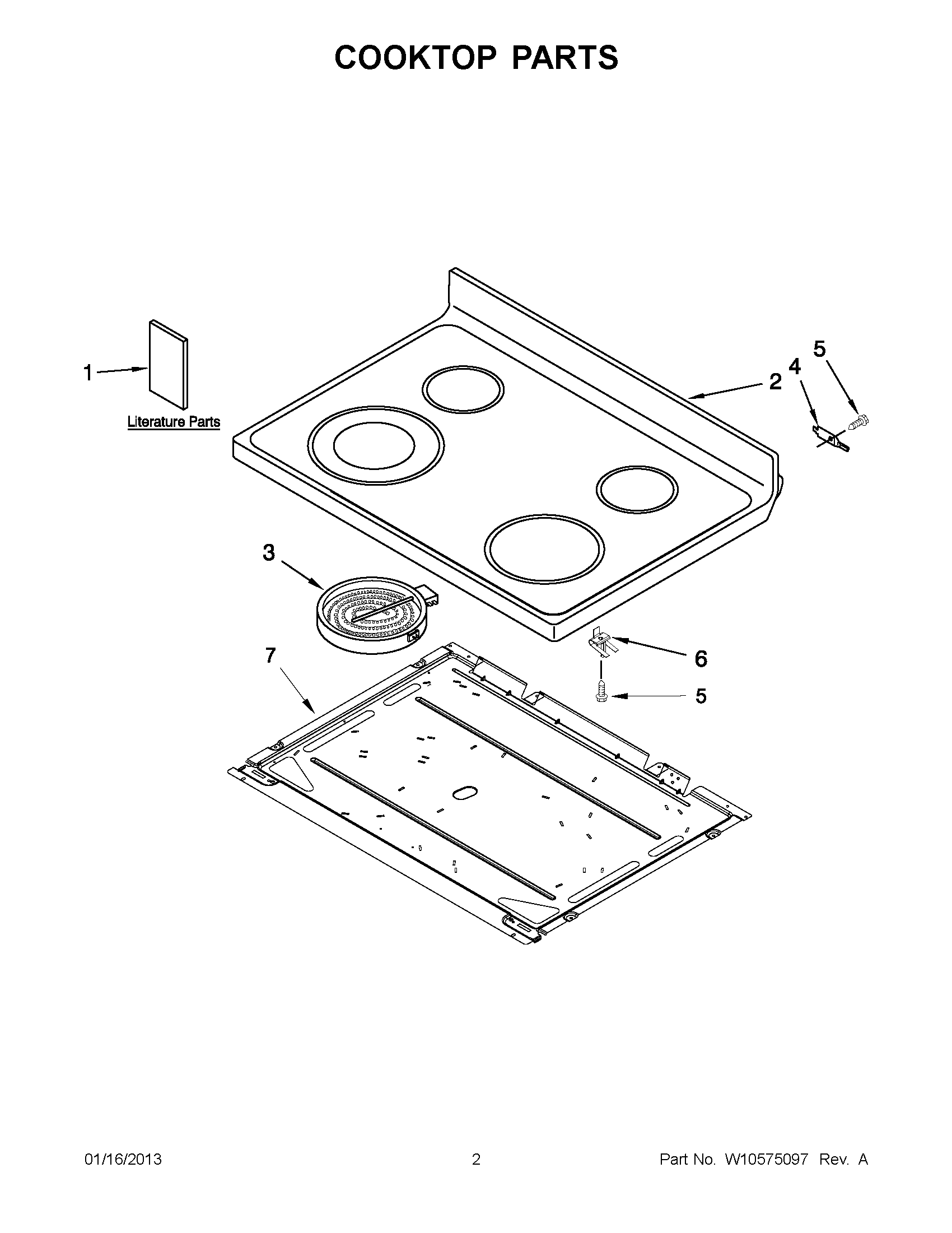

YIES426AS0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1OWNERS MANUAL
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2W10245805 Whirlpool Range Black Glass Cooktop
3W10823696 Whirlpool Radiant Surface Element
3W10823711 Whirlpool Surface Element Left Front and Right Rear
3ELMNT-SURF
4WP3195060 Whirlpool Cooktop Pin
5WP3196557 Whirlpool Screw
6WPW10225448 Whirlpool Spring Assembly
7PAN
