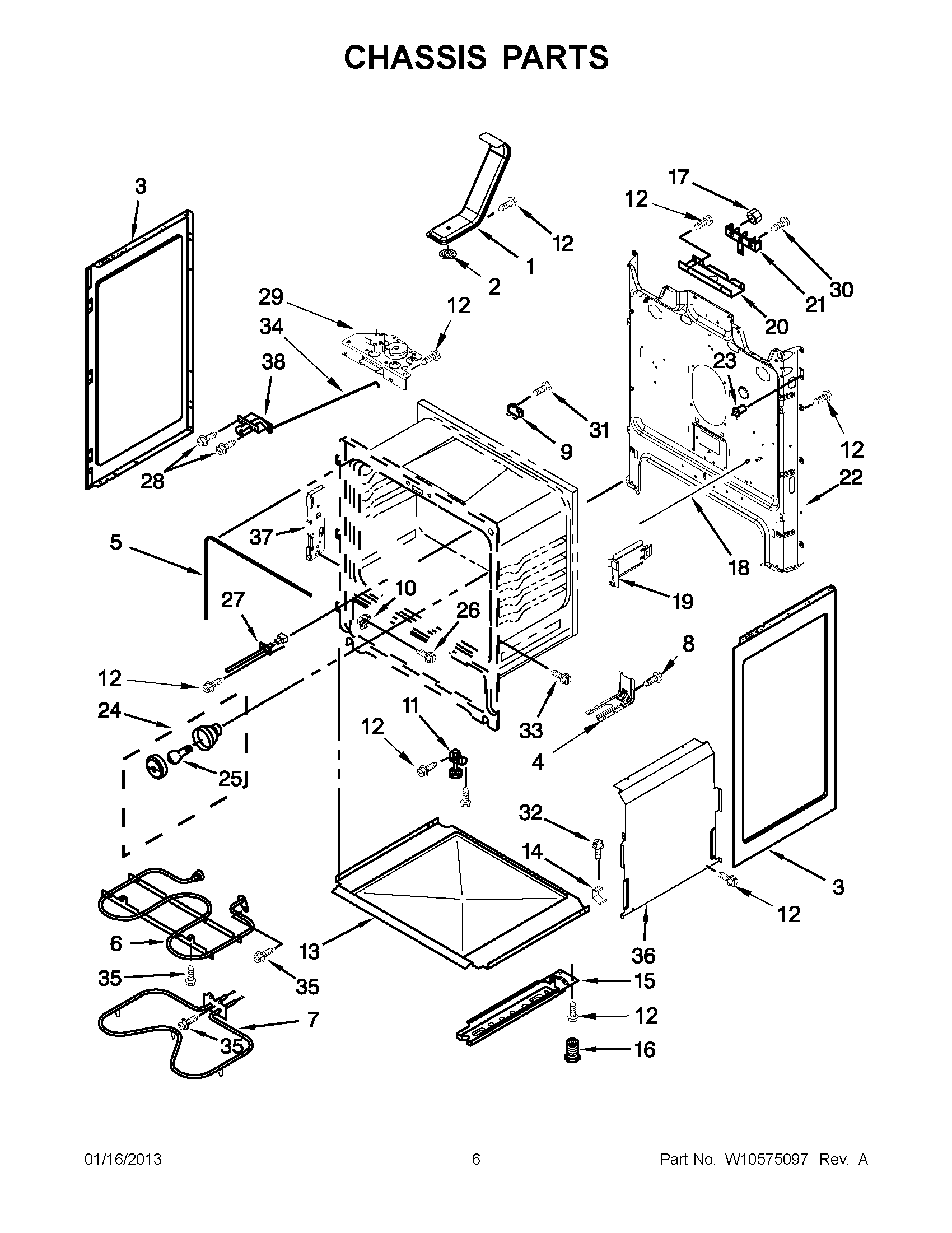

YIES426AS0 03 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	W11684918 Whirlpool Insulation
NI	WP8272612 Whirlpool Insulation
1	WPW10134285 Whirlpool Vent Tube
2	9761301 Whirlpool Oven Screen
3	W11730303 Whirlpool Side Panel
4	W11447673 Whirlpool Range Tip Anchor
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	SCREW, ANTI-TIP KIT
9	WP3196548 Whirlpool Thermal Fuse
10	GLIDE-RANGE DRAWER KIT
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WP3196557 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	Nut
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10326122 Whirlpool Black Cover
22	BACK, MAIN
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3196175 Whirlpool Screw
27	WPW10181986 Whirlpool Oven Sensor
28	W11169708 Whirlpool Screw
29	WPW10107840 Whirlpool Door Latch
30	WP3400016 Whirlpool Screw Assembly
31	3196172 Whirlpool Oven Screw
32	W10777162 Whirlpool Screw
33	WPW10067840 Whirlpool Screw
34	Rod, Latch
35	WP3196174 Whirlpool Screw
36	W10450380 Whirlpool Retainer
37	W10647259 Whirlpool Hinge Receiver
38	WP9761013 Whirlpool Door Latch
