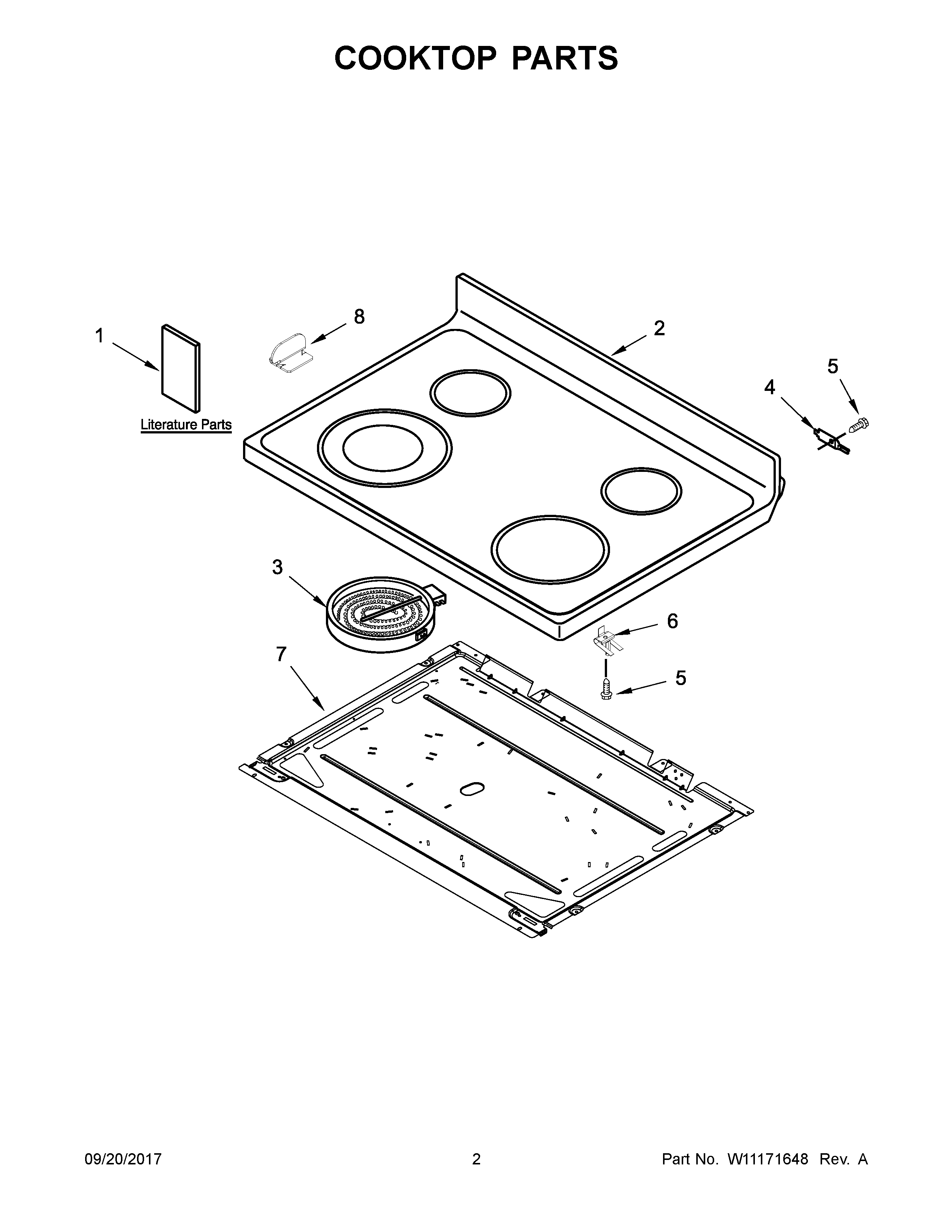

YIES426AS1 02 – COOKTOP PARTS

YIES426AS1 02 – COOKTOP PARTS

Written by

in

YIES426AS1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134601 Whirlpool Wire Harness
NIW11134602 Whirlpool Wire Harness
1OWNERS MANUAL
1BTECH SHEET (FRENCH)
1ATECH SHEET (ENGLISH)
1CINSTRUCTIONS, INSTALLATION
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
2W10245805 Whirlpool Range Black Glass Cooktop
3AW11047722 Whirlpool Radiant Surface Element
3ELMNT-SURF
3BELMNT-SURF
4WP3195060 Whirlpool Cooktop Pin
5WP3196557 Whirlpool Screw
6WPW10225448 Whirlpool Spring Assembly
7PAN
8W10607641 Whirlpool Clip
8AW10607642 Whirlpool Clip
