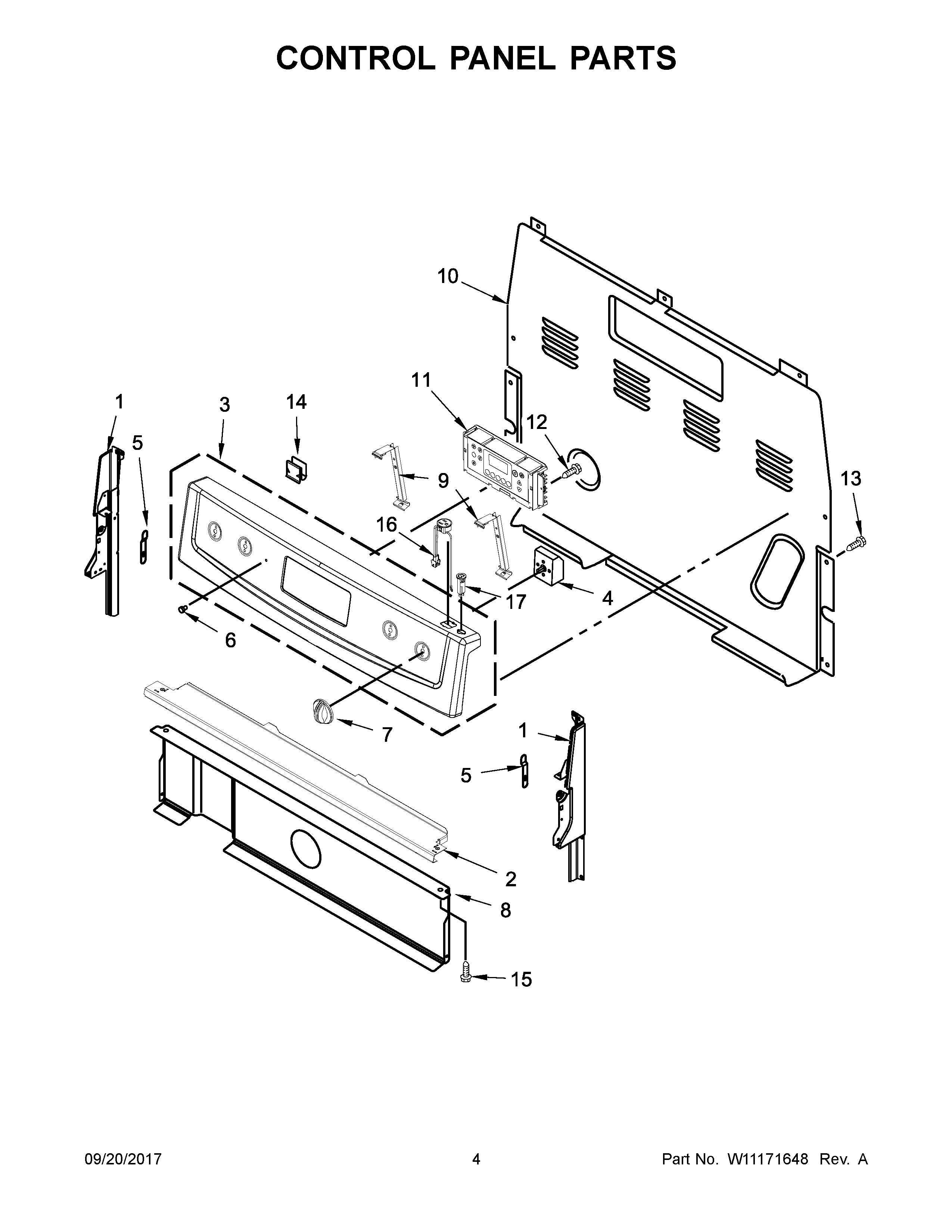

YIES426AS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W10525121 Whirlpool Control Bracket
3	PANEL, CONTROL (STAINLESS)
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	W11193834 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	W11230932 Whirlpool Bracket Mounting
10	WP8272473 Whirlpool Rear Cover
11	W11171123-includeCORE Whirlpool W11171123 Refrigerator Electronic Control Board + Core
12	WP3196557 Whirlpool Screw
13	WP3400882 Whirlpool Screw
14	WP8273564 Whirlpool Clip
15	SCREW
16	RECEPTACLE (BLACK)
17	WP9757602 Whirlpool Breaker
