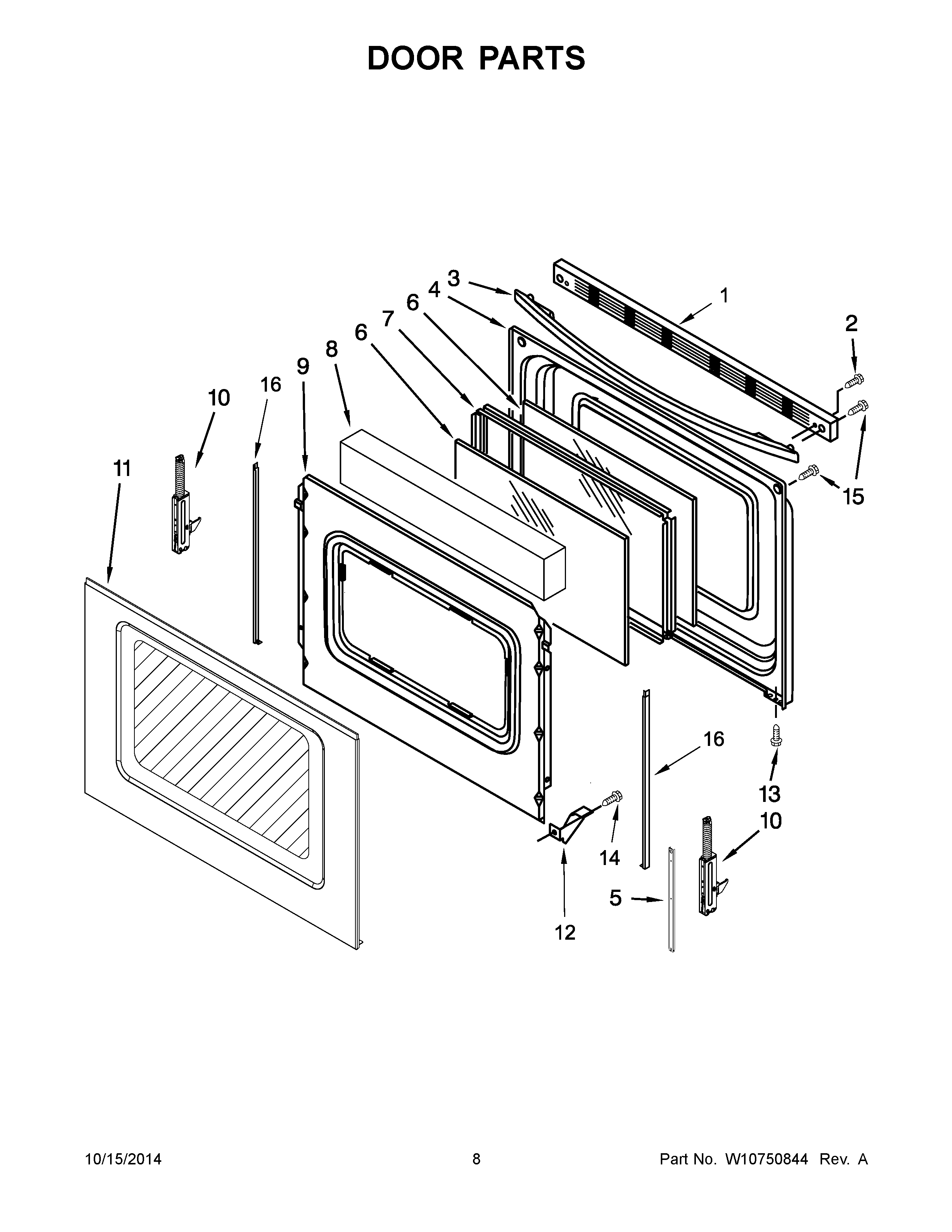

YIES505DS0 05 – DOOR PARTS

YIES505DS0 05 – DOOR PARTS

Written by

in

YIES505DS0 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3WPW10144883 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W11502236 Whirlpool Door Trim
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10AWPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10WPW10299227 Whirlpool Range Door Hinge
11WPW10330077 Whirlpool Door Glass
12W10137382 Whirlpool Clip
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15W11396735 Whirlpool Screw
16AW10761018 Whirlpool Dishwasher Left Door Trim
16W10761014 Whirlpool Right Door Trim
