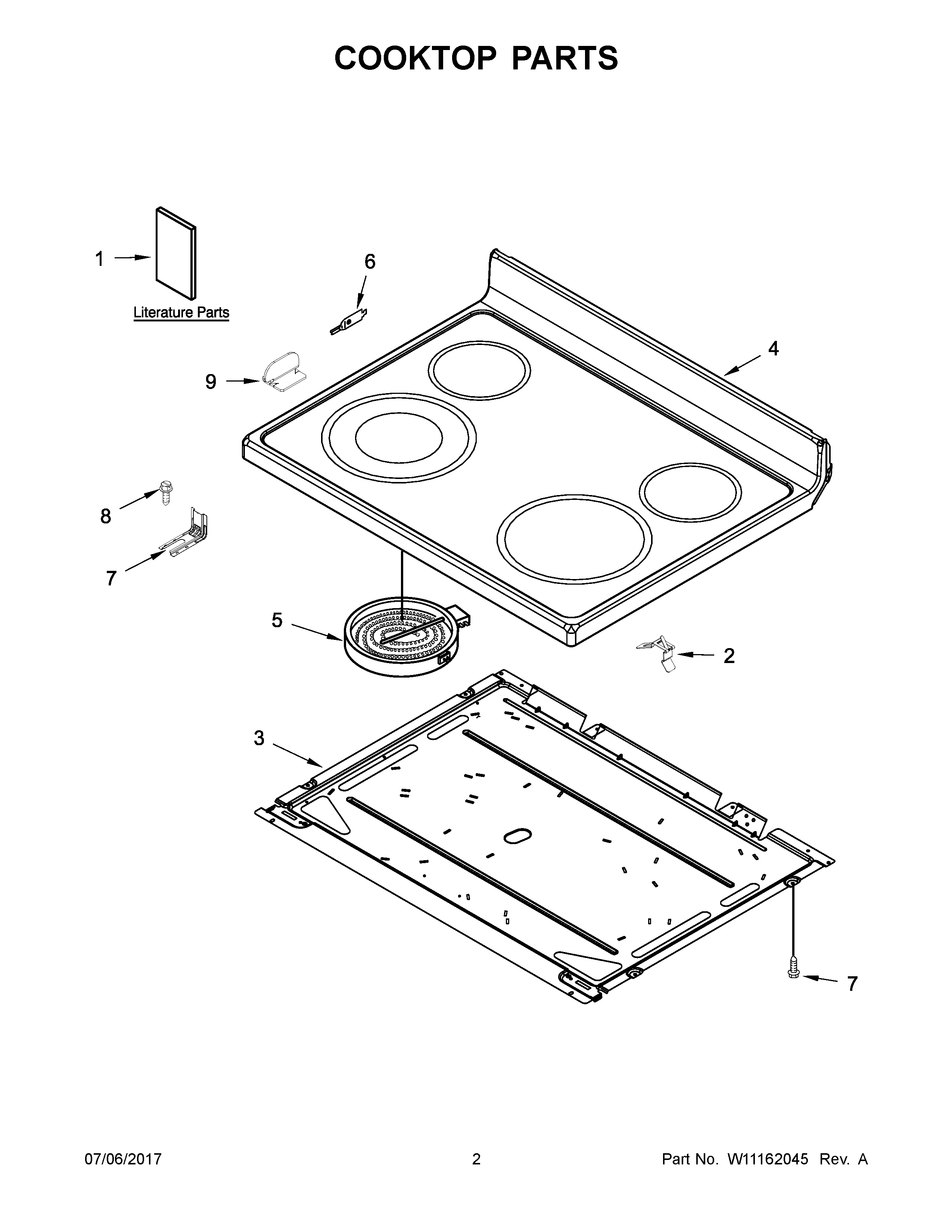

YIES505DS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10261085 Whirlpool Wire Harness
NI	W10084710 Whirlpool Wire Harness
NI	W11134596 Whirlpool Wire Harness
NI	W10183541 Whirlpool Clip Assembly
NI	HARNESS, MAIN
NI	WPW10281322 Whirlpool Connector
NI	W10465644 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1A	GUIDE, USE AND CARE
1D	TECH SHEET (ENGLISH)
1E	TECH SHEET (FRENCH)
1C	Safer Cooking Tips (French)
1B	SAFER COOKING TIPS (ENGLISH
1	INSTALLATION INSTRUCTIONS
2	WPW10225448 Whirlpool Spring Assembly
3	PAN
4	W10789871 Whirlpool Cooktop
5B	ELMNT-SURF
5	WPW10535150 Whirlpool Surface Element
5A	W11047722 Whirlpool Radiant Surface Element
6	WP3195060 Whirlpool Cooktop Pin
7	W11447673 Whirlpool Range Tip Anchor
8	SCREW, ANTI-TIP KIT
9A	W10607642 Whirlpool Clip
9	W10607641 Whirlpool Clip
