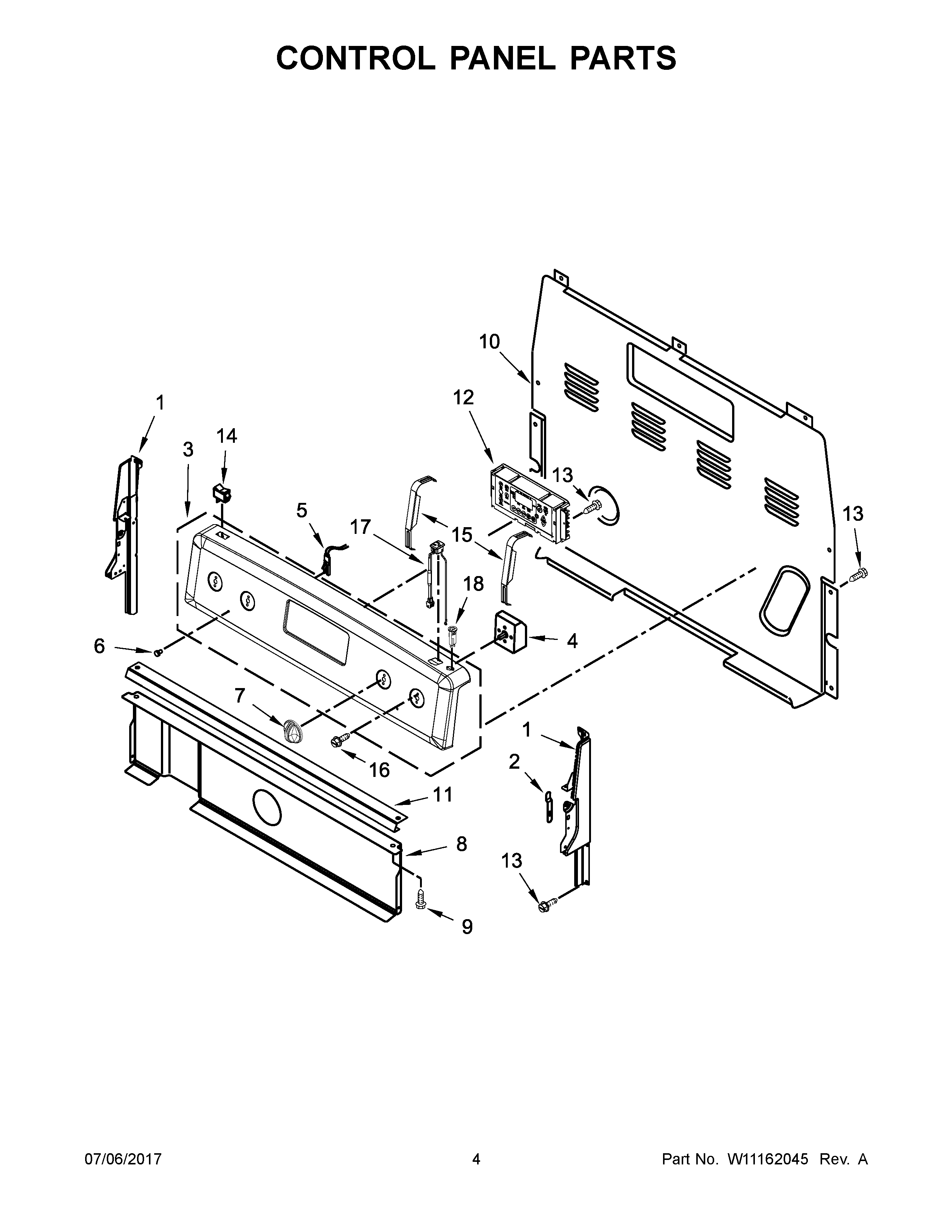

YIES505DS1 03 – CONTROL PANEL PARTS

YIES505DS1 03 – CONTROL PANEL PARTS

Written by

in

YIES505DS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3PANEL, CONTROL (BLACK)
4BWP3149400 Whirlpool Oven Infinite Switch
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10339450 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196557 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10687553-includeCORE Whirlpool WPW10687553 Refrigerator Electronic Control Board with Core
13SCREW
14WP4314961 Whirlpool Lite Switch
15W11230932 Whirlpool Bracket Mounting
16WP3400882 Whirlpool Screw
17RECEPTACLE (BLACK)
18WP9757602 Whirlpool Breaker
