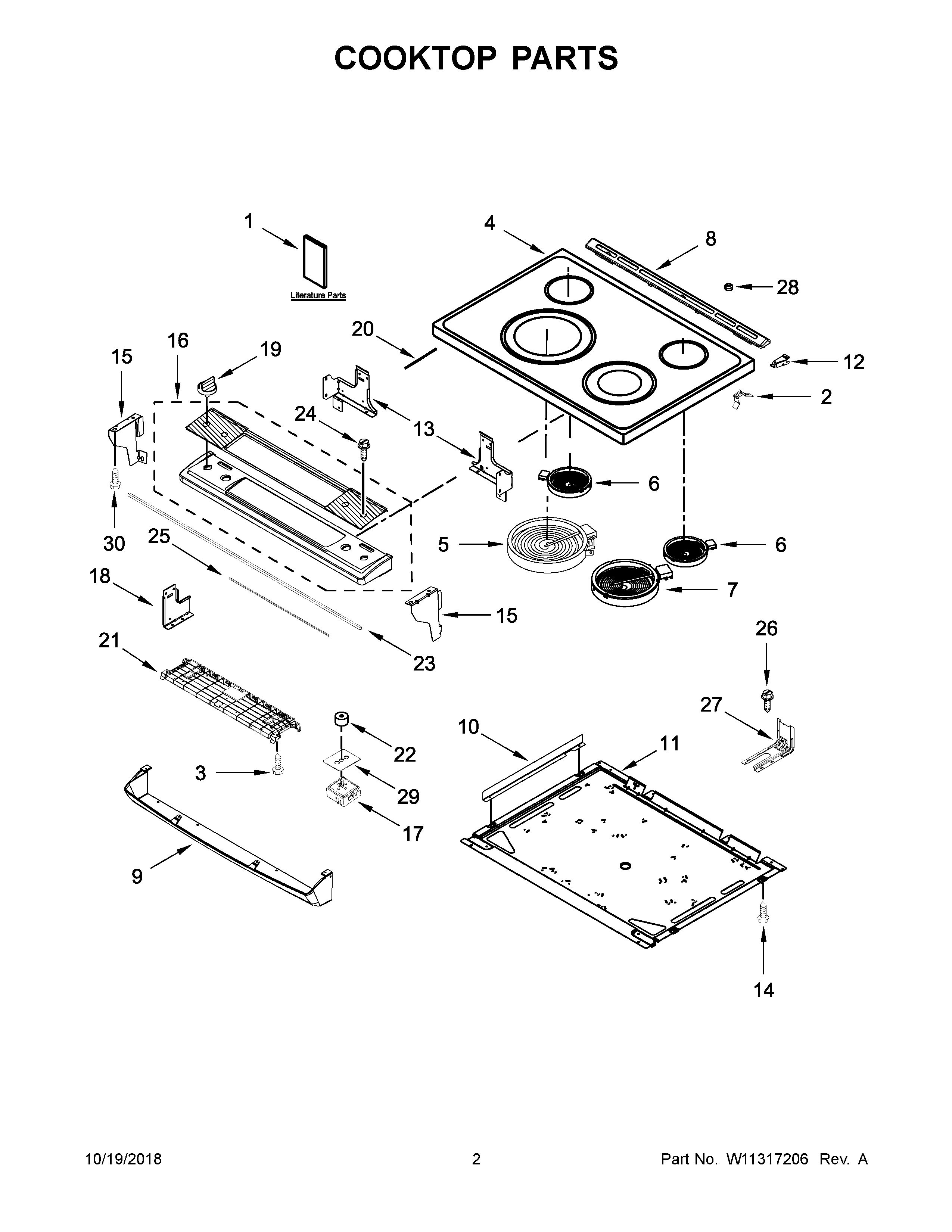

YIES790GS0 02 – COOKTOP PARTS

Products

Position	Product
NI	16515 Whirlpool Clip
NI	CLAMP, WIRE
NI	HARNESS, CONSOLE
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP
NI	W10664316 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET (ENGLISH/FRENCH/SPANISH)
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
1C	DIAGRAM, WIRING (ENGLISH/FRENCH/SPANISH)
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	COOKTOP (BLACK)
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WP8273993 Whirlpool Surface Element
8	W11240519 Whirlpool Vent Trim
9	W10894124 Whirlpool Control Panel
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13A	W10814304 Whirlpool Support Bracket
13	SUPPORT, COOKTOP (LEFT)
14	W11244557 Whirlpool Screw
15	W10547960 Whirlpool Endcap Panel
15A	W10547961 Whirlpool Endcap Panel
16	CONSOLE (STAINLESS)
17B	W11661906 Whirlpool Range Infinite Switch
17	SWITCH-INF
17A	W10911303 Whirlpool Infinite Switch
18	W10814305 Whirlpool Bracket Support
19	W11553330 Whirlpool Knob
20	W11744482 Whirlpool Gasket Assembly
21	W11536798-includeCORE Whirlpool W11536798 Refrigerator Electronic Control Board
22	W10702912 Whirlpool Switch Gasket
23	W10802441 Whirlpool Gasket
24	W10674068 Whirlpool Screw
25	W10802457 Whirlpool Gasket
26	SCREW, ANTI-TIP KIT
27	W11502257 Whirlpool Anchor Tip
28	W11690600 Whirlpool Bumper
29	GASKET, SWITCH
30	W11245710 Whirlpool Refrigerator Screw
