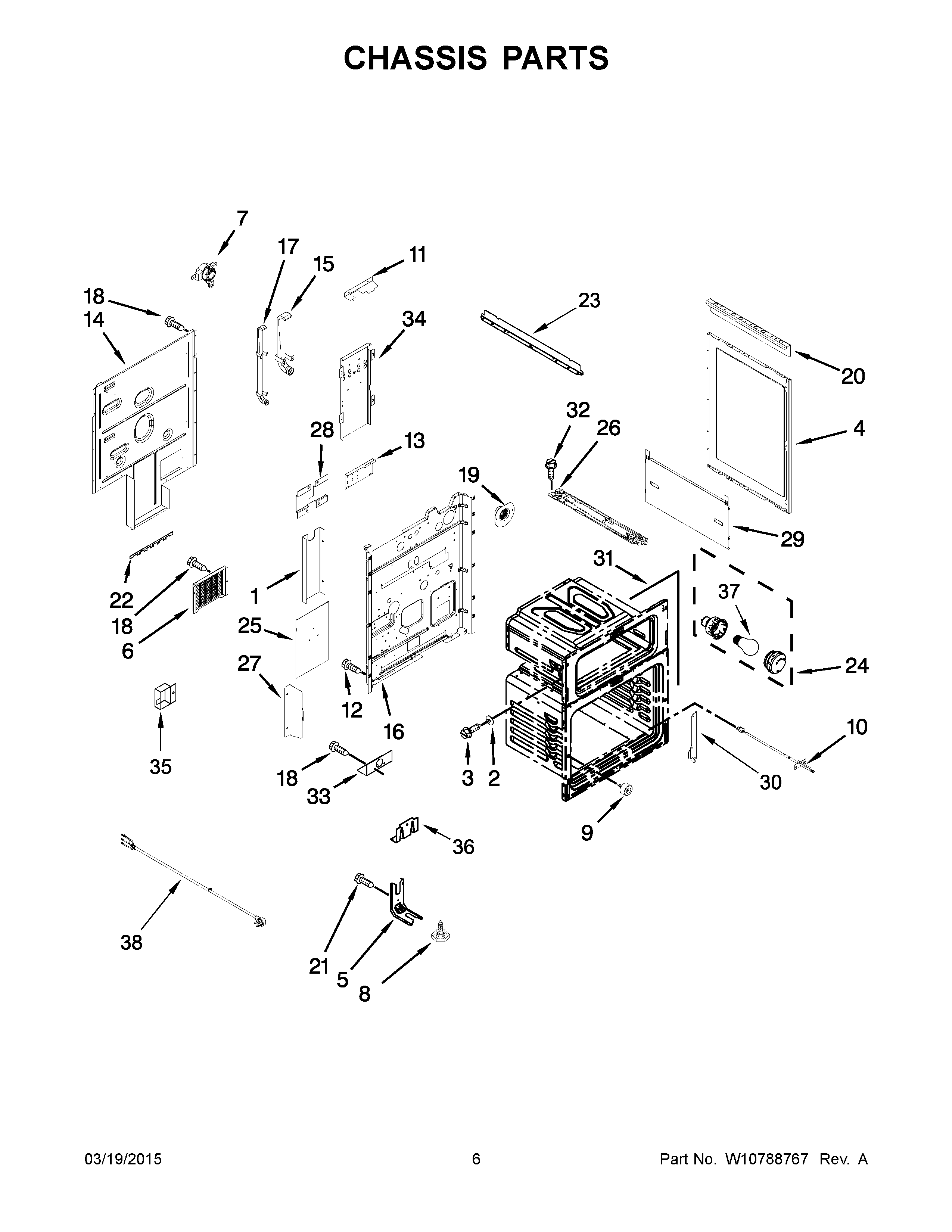

YIES900DS01 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10271637 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11685361 Whirlpool Insulation
NI	INSULATION, WRAPPER
NI	WPW10204079 Whirlpool Insulation
NI	WPW10322111 Whirlpool Insulation
1	W10332459 Whirlpool Heat Shield
2	WPW10237689 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4	W10832695 Whirlpool Side Panel
5	BRACKET, ANTI TIP
6	W10312612 Whirlpool Black Cover
7	SWITCH, HIGH LIMIT
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	W10268559 Whirlpool Cover Wire
12	SCREW
13	W10332449 Whirlpool Heat Shield
14	WPW10261386 Whirlpool Wire Cover
15	W10337391 Whirlpool Vent Tube
16	W10668730 Whirlpool Rear Cover
17	WPW10323793 Whirlpool Vent Tube
18	SCREW
19	W10322408 Whirlpool Extension Tube
20	W10319087 Whirlpool Support Bracket
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	W10357697 Whirlpool Spacer Panel
24	W11594027 Whirlpool Range Oven Light Socket
25	W10311987 Whirlpool Heat Shield
26	WPW10471348 Whirlpool Door Latch
27	W10268560 Whirlpool Wire Cover
28	INSULATOR,HEAT SHIELD
29	SHIELD-SIDE INSULATION
30A	W10410461 Whirlpool Cover
30	W10410463 Whirlpool Cover Assembly
31A	WPW10269069 Whirlpool Door Gasket
31	W10337392 Whirlpool Door Gasket
32	SCREW
33	W10190166 Whirlpool Service Bracket
34	W10261388 Whirlpool Mounting Bracket
35	8285593 Whirlpool Oven Wire Cover
36	W10260703 Whirlpool Support
37	RANGE ONLY 40W 120V APPL BULB
38	W11226497 Whirlpool Power Cord
