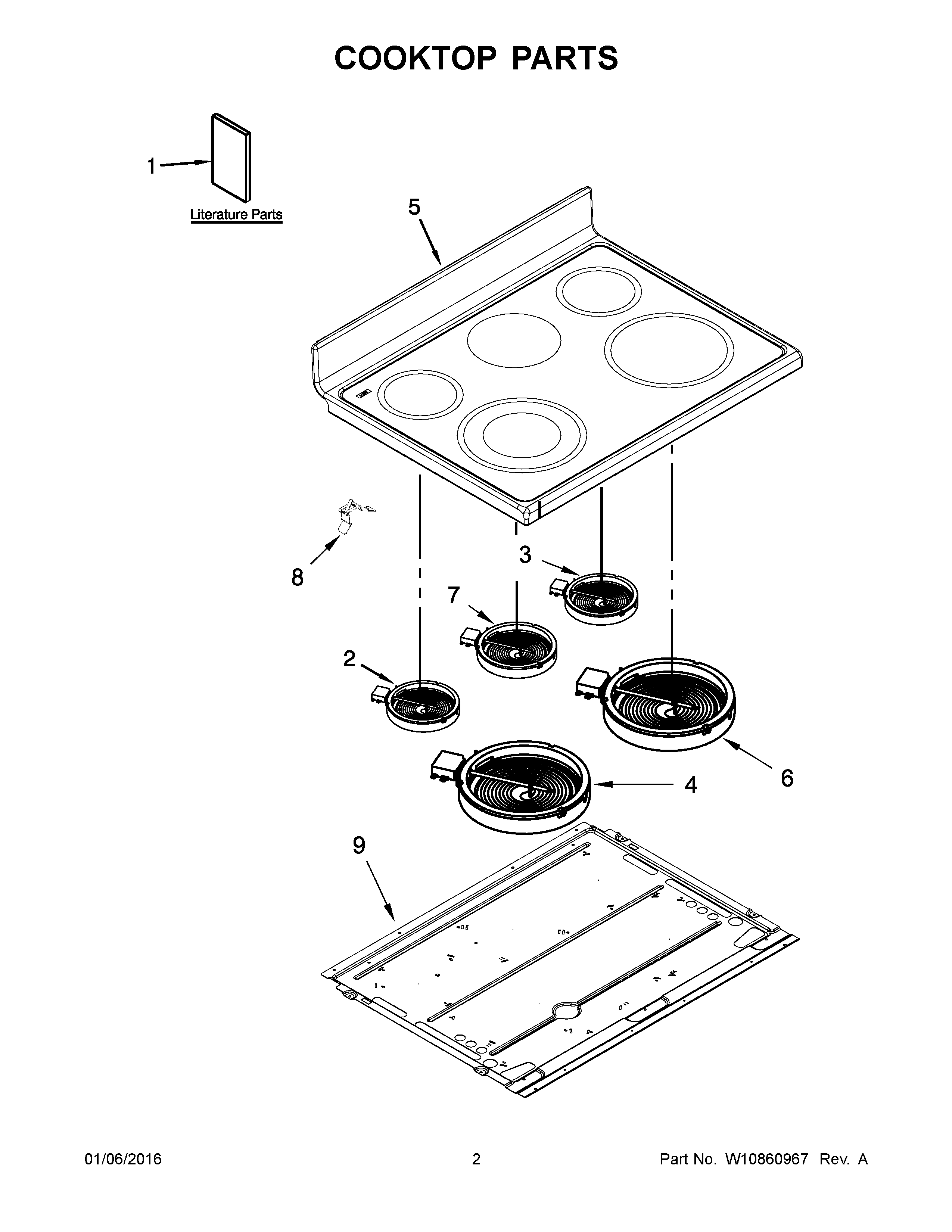

YIES900DS02 02 – COOKTOP PARTS

YIES900DS02 02 – COOKTOP PARTS

Written by

in

YIES900DS02 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11172531 Whirlpool Wire Harness
NIW11157775 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NIW10537938 Whirlpool Wire Harness
NIW10270316 Whirlpool Wire Harness
NIW10225693 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, CLIP, WIRE
NIWIRING HARNESS PARTS, SCREW, GROUND
NIHARNESS, MAIN
1BSHEET, TECH
1AGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
2WPW10270604 Whirlpool Surface Element
3ELMNT-SURF
4W11517959 Whirlpool Electric Range Radiant Surface Element
5W10751460 Whirlpool Cooktop
6W11047722 Whirlpool Radiant Surface Element
7WP9762851 Whirlpool Surface Element
8WPW10225448 Whirlpool Spring Assembly
9WPW10260946 Whirlpool Panel
