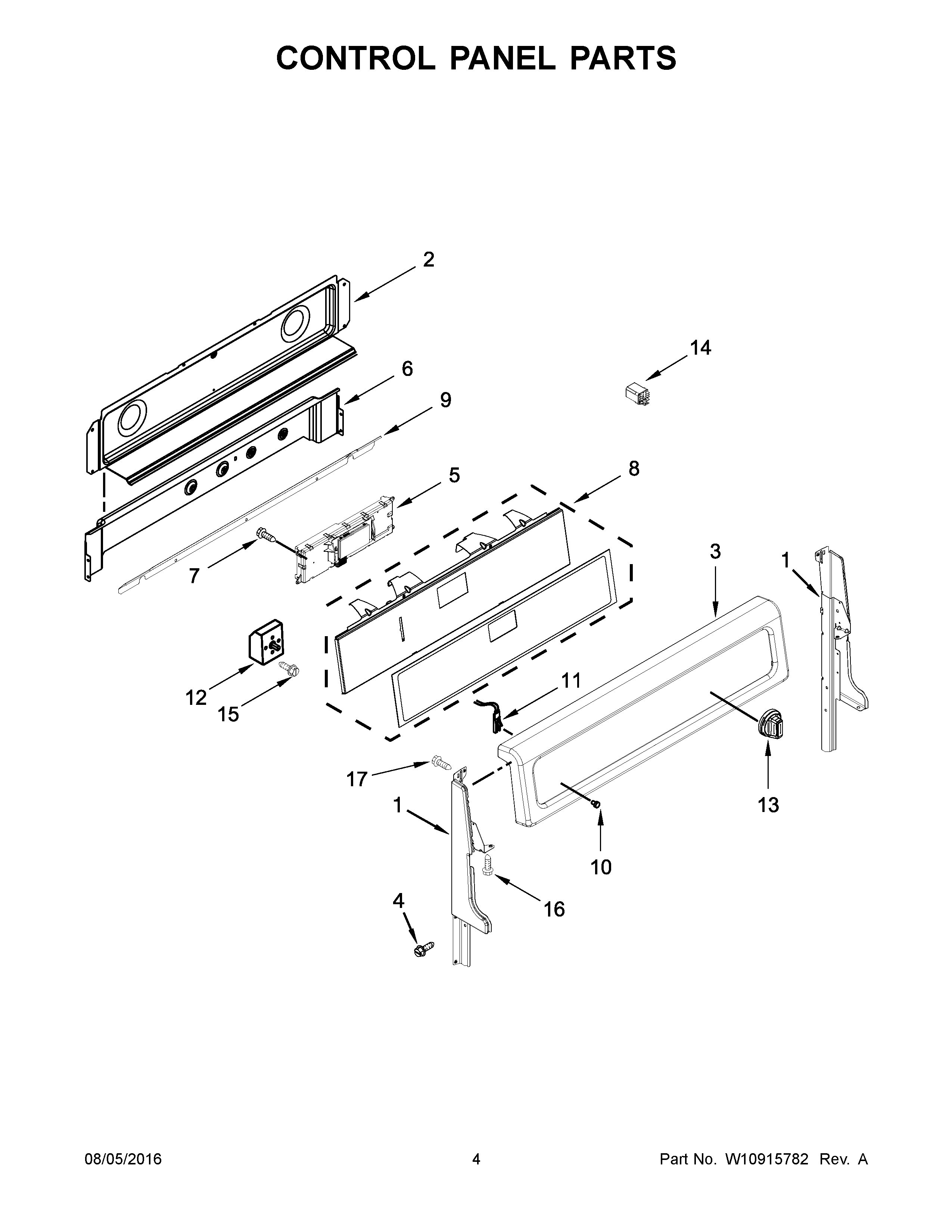

YIES900DS03 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	SUPPORT, BACK GUARD (RIGHT HAND)
1	W10319109 Whirlpool Endcap Panel
2	W10776098 Whirlpool Rear Cover
3	WPW10318550 Whirlpool Control Panel
4	SCREW (BLACK)
5	WPW10778311-includeCORE Whirlpool WPW10778311 Refrigerator Electronic Control Board with Core
6	W10278697 Whirlpool Vent Shield Assembly
7	SCREW
8	W10755953 Whirlpool Membrane Switch
10	WP3196068 Whirlpool Light Lens
11	Light, Indicator
12C	SWITCH, INFINITE (RIGHT REAR)
12B	SWITCH, INFINITE (RIGHT FRONT)
12A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
12	WPW10312185 Whirlpool Infinite Switch
13	W10294791 Whirlpool Knob
14	RELAY (12V)
15	WPL 7101P30960
16	Screw
17	Screw
