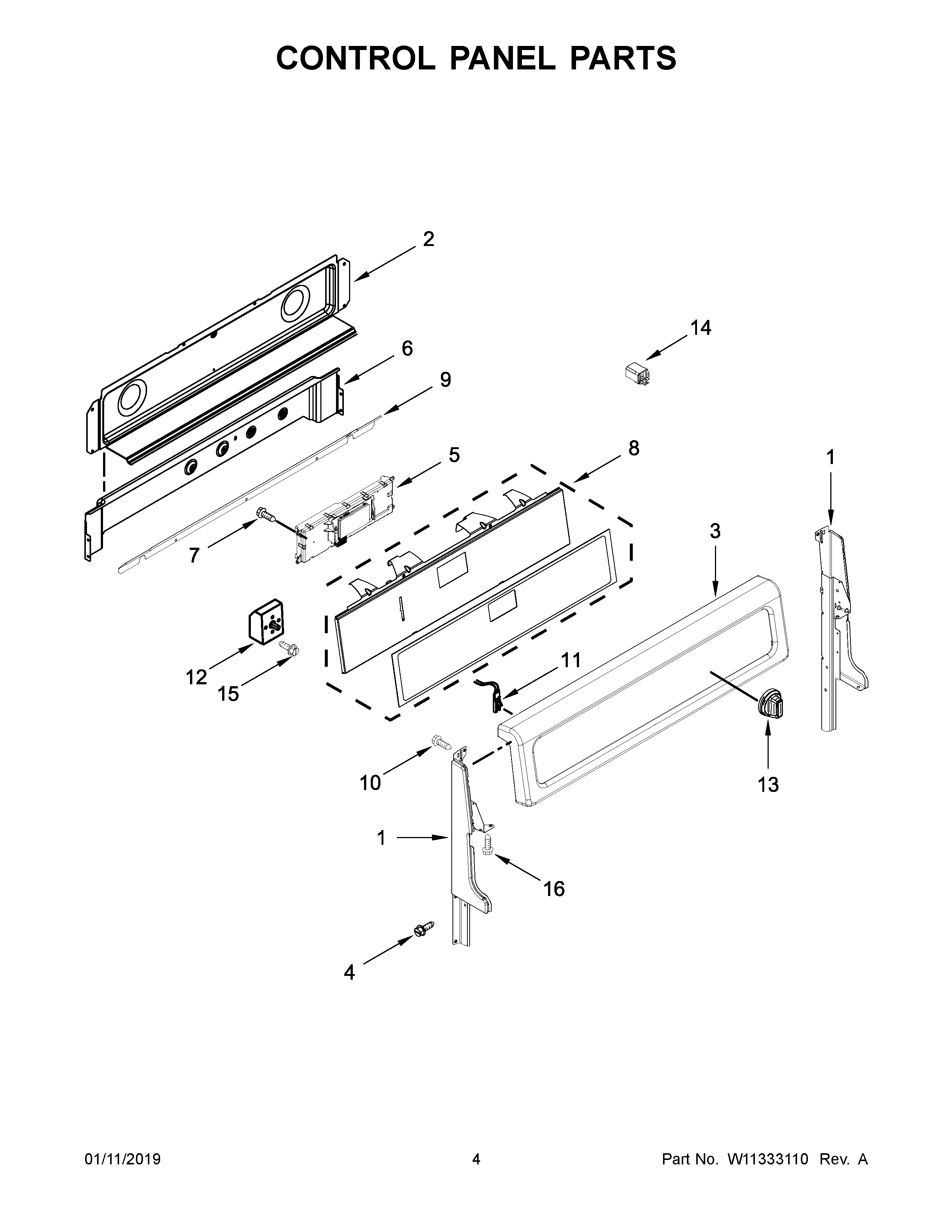

YIES900DS04 03 – CONTROL PANEL PARTS

YIES900DS04 03 – CONTROL PANEL PARTS

Written by

in

YIES900DS04 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2W10776098 Whirlpool Rear Cover
3WPW10318550 Whirlpool Control Panel
4SCREW (BLACK)
5WPW10778311-includeCORE Whirlpool WPW10778311 Refrigerator Electronic Control Board with Core
6W10278697 Whirlpool Vent Shield Assembly
7SCREW
8W10755953 Whirlpool Membrane Switch
10Screw
11Light, Indicator
12AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
12WPW10441696 Infinite Switch (Right) Front)
12BSWITCH, INFINITE (RIGHT FRONT)
12CSWITCH, INFINITE (RIGHT REAR)
13W10294791 Whirlpool Knob
14RELAY (12V)
15WPL 7101P30960
16Screw
