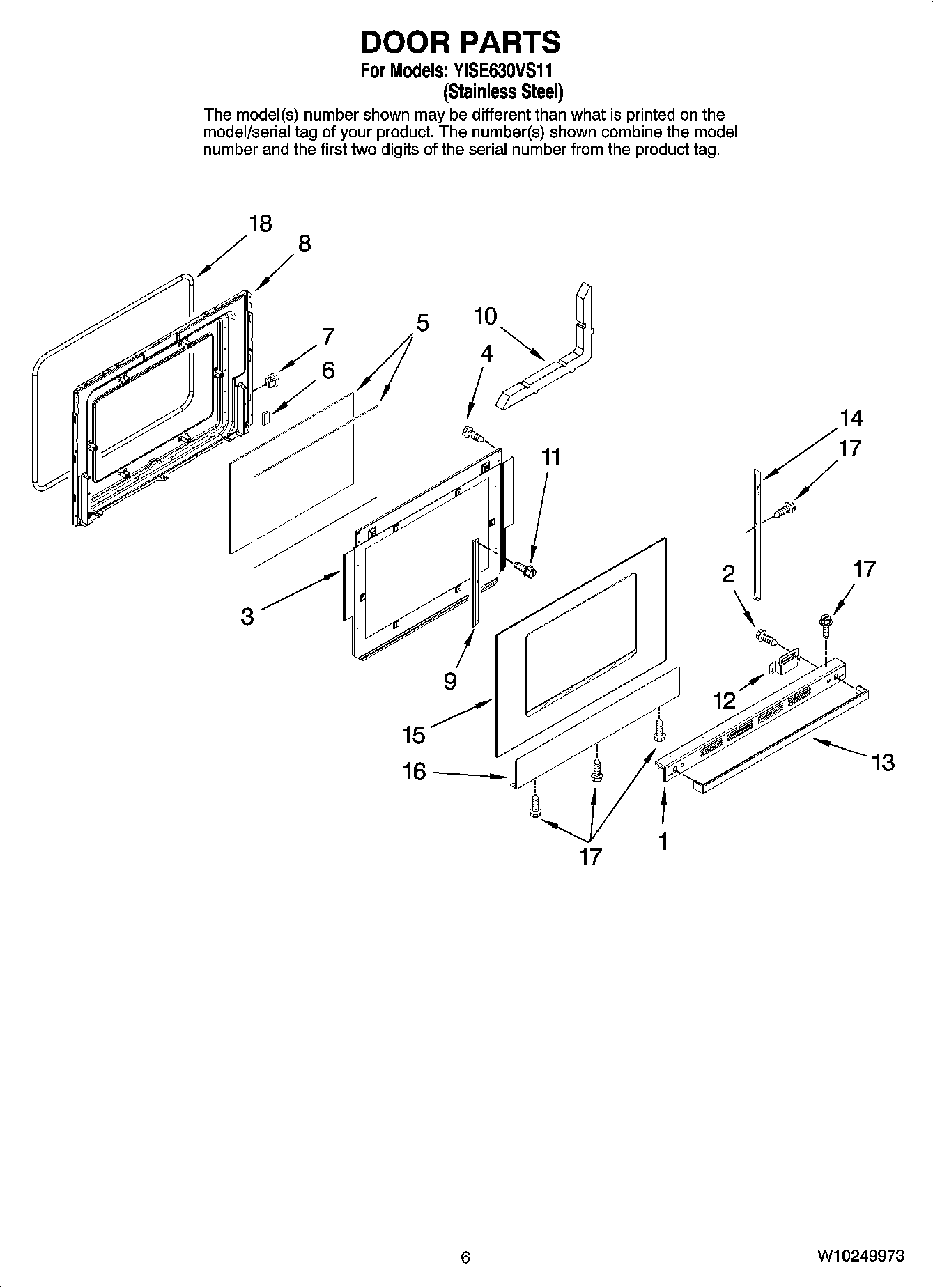

YISE630VS11 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI136930A
	8212471 Whirlpool Oven Paint
	WP3195996 Whirlpool Pan Grid
	Grease
	WPL ARI136931A
	WIRING HARNESS PARTS, SCREW, GROUND
	8019P013-60 Whirlpool Clip
	Harness, Main
	5171P553-60 Whirlpool Wire Harness
	5700P822-60 Whirlpool Wire Harness
	Harness, Sensor
	Harness, Switch (LT)
	WPL ARI136926A
	WPL ARI136927A
	WPL ARI136928A
	WPL ARI136929A
	WP3196076 Whirlpool Broil Pan
	W11447673 Whirlpool Range Tip Anchor
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	285006 Whirlpool Spray
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
1	Trim, Door Top
2	WP74006515 Whirlpool Washer Screw
3	Baffle, Retainer
4	SCREW
5	Glass, Inner (2)
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Lining, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F832-45 Whirlpool Bracket
12	3801F831-45 Whirlpool Bracket Assembly
13	Handle,Storage Dwr
14	WP3608F117-70 Whirlpool Door Trim
14	WP3608F116-70 Whirlpool Door Trim
15	Glass, Door
16	Panel, Oven Door (Bottom)
17	Screw, Trim
18	GASKT-DOOR OVEN
