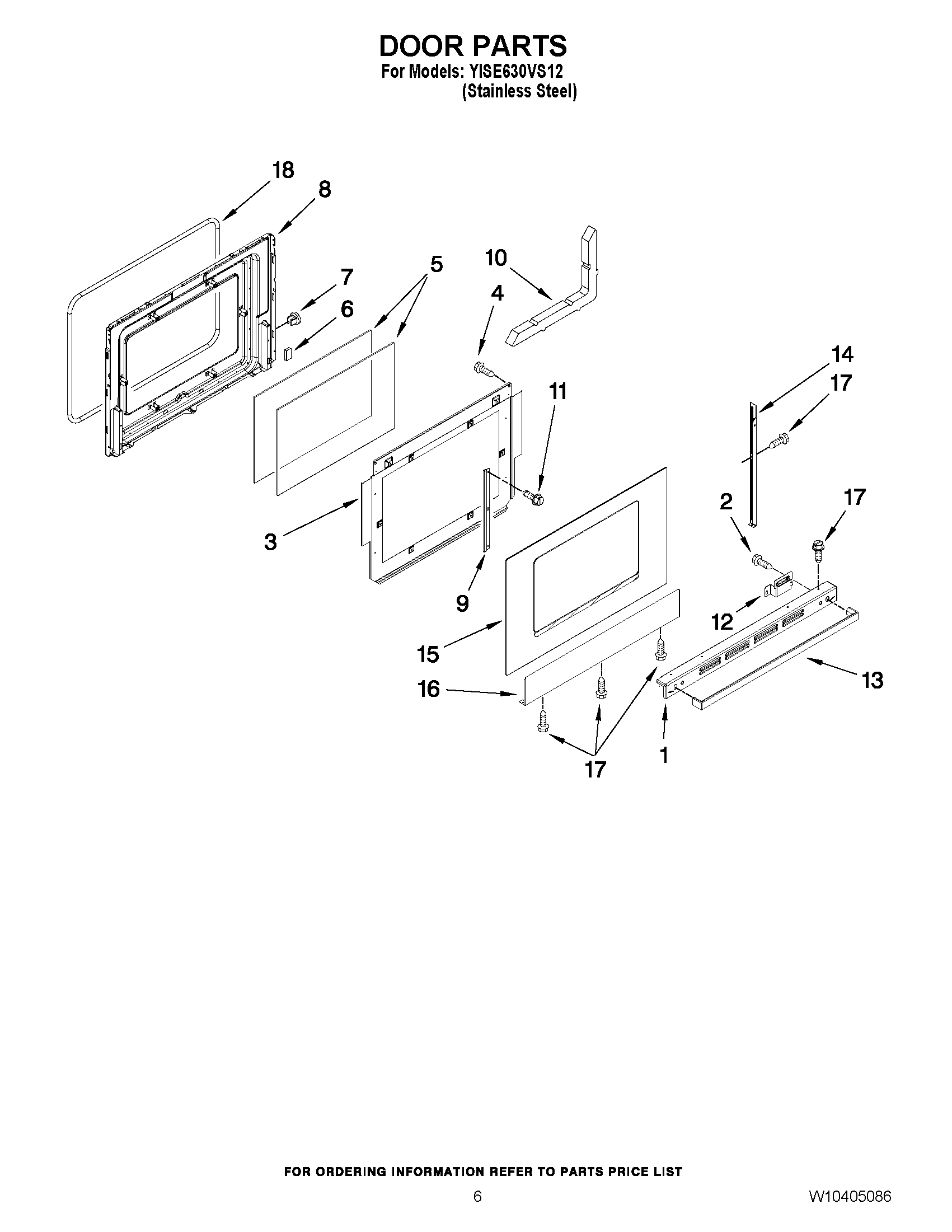

YISE630VS12 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	SCREW
3	BAFFLE, RETAINER
4	Screw, Panel
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
9	Bracket, Glass
10	INSULATION, DOOR
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	Handle,Storage Dwr
14	Trim, Door Side (Left)
14	Trim, Door Side (Right)
15	LINING, DOOR
16	Panel, Oven Door (Bottom)
17	CABINET (NOT A SERVICEABLE PART)
18	GASKT-DOOR OVEN
