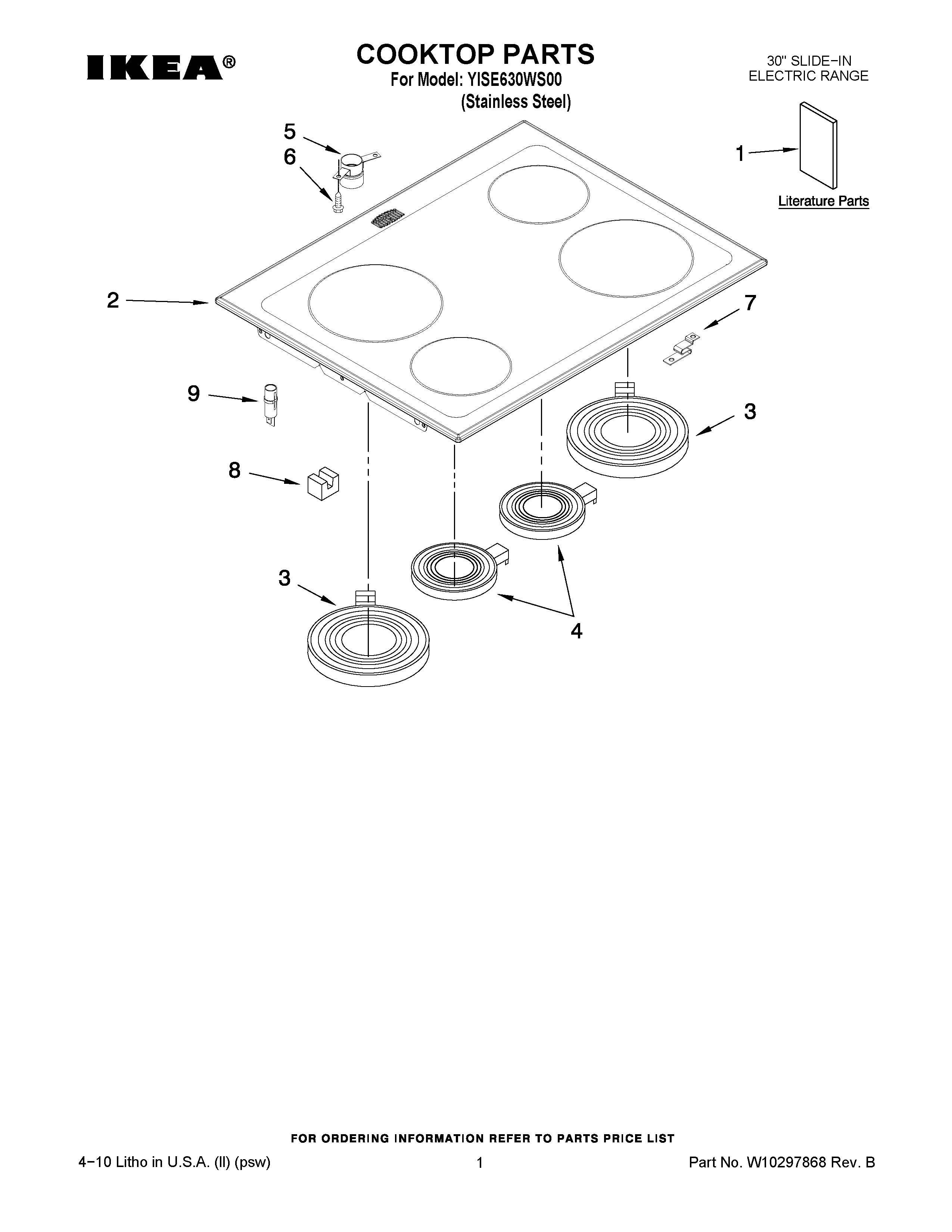

YISE630WS00 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1Wiring Diagram (French)
1Wiring Diagram (English)
1USE & CARE GUIDE
2COOKTOP
3ELEMENT RF/LR (2500W)
4ELEMENT (LF,RR)
5Tube, Vent Upper
6SCREW
7SUPPORT,ELEMENT
8KIT, HARDWARE
9LIGHT, INDICATOR
