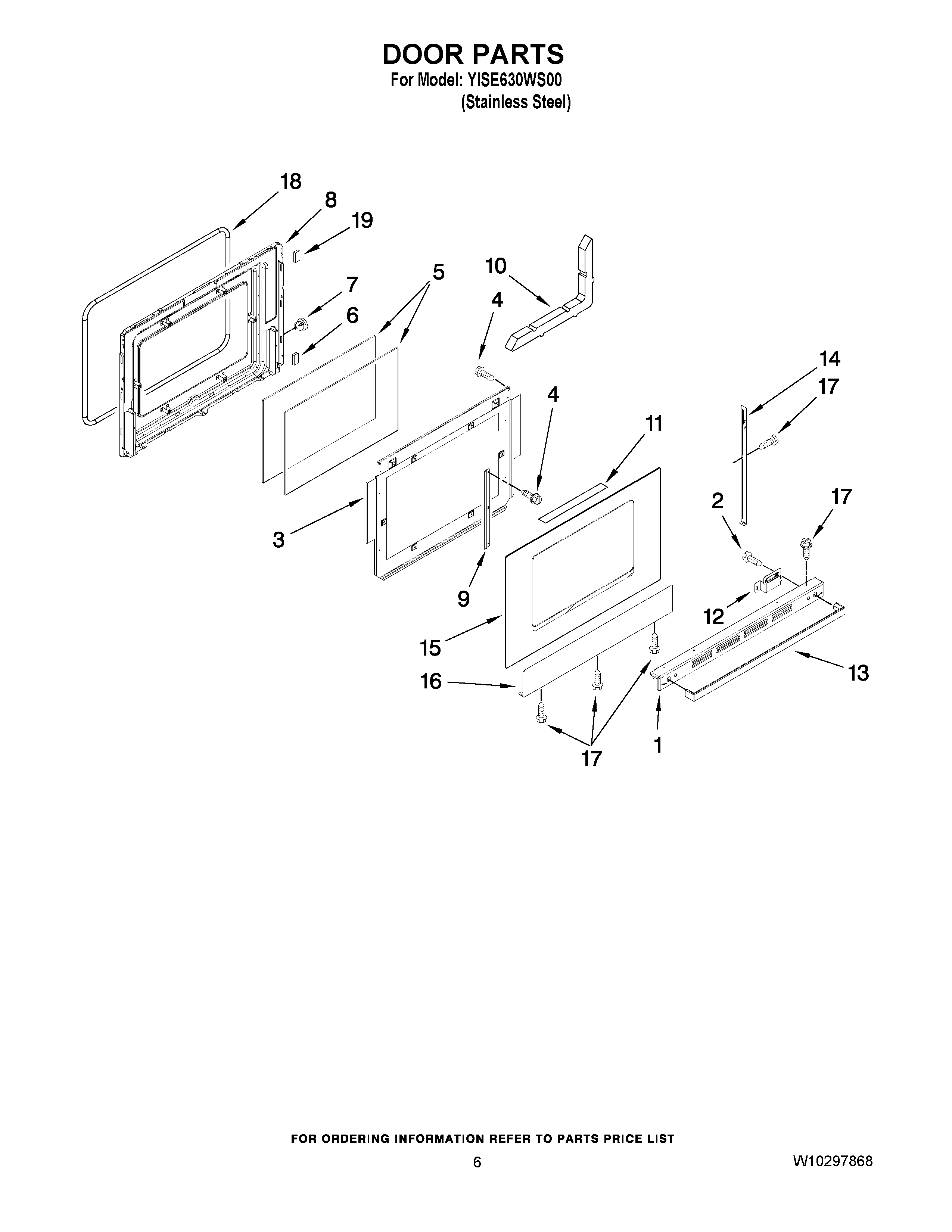

YISE630WS00 05 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	SCREW
3	BAFFLE, RETAINER
4	SCREW
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	LINING, DOOR
9	BRACKET, GLASS
10	INSULATION, DOOR
11	Insulation, Foil
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	HANDLE, DOOR
14	Trim, Door Side (Left)
14	Trim, Door Side (Right)
15	GLASS, DOOR
16	Panel, Oven Door (Bottom)
17	SCREW (BLACK)
18	GASKT-DOOR OVEN
19	Spacer, Rubber
