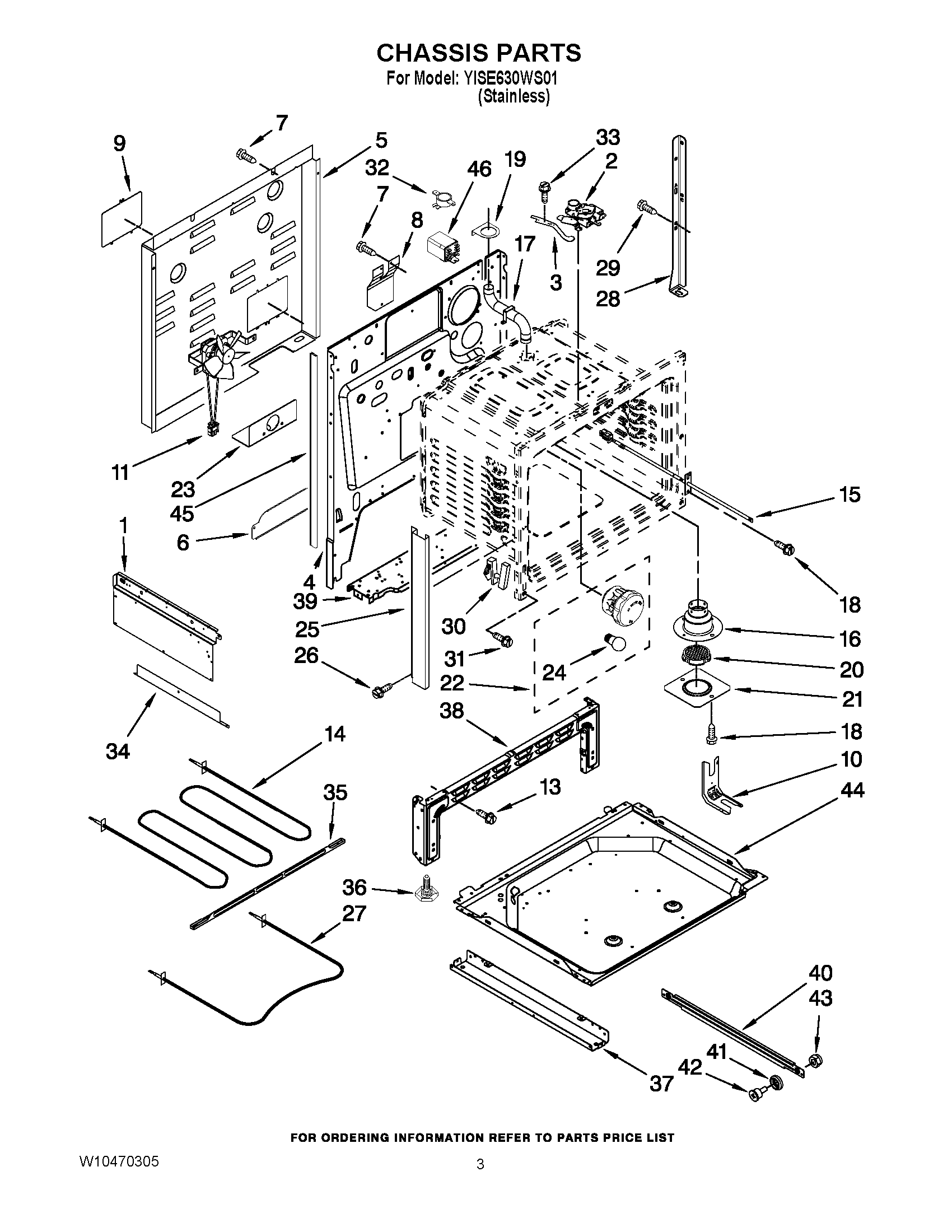

YISE630WS01 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back
NI	Insulation, Oven Bottom
NI	Insulation, Wrap
1	Panel, Shield (Left)
1	Panel, Shield (Right)
2	LATCH ASSEMBLY
3	LEVER, LATCH
4	Main Back
5	Cover, Main Wire
6	Extension, Back
8	Insulator, Cord
9	COVER, TERMINAL
10	BRACKET, ANTI TIP
11	WPW10586440 Whirlpool Blower Fan
13	SCREW
14	WP7406P218-60 Whirlpool Broil Element
15	Sensor, Oven
16	Tube, Vent Lower
17	Tube, Vent Upper
19	Holder, Vent Tube
20	SMOKE ELIMINATOR
21	PLATE, SMOKE ELM.
22	Light Assembly
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	Trim, Side
27	WPW10310274 Whirlpool Bake Element
28	SUPPORT, OVEN (REAR)
29	SCREW
30	HINGE
31	SCREW
32	LIMIT, OVEN
33	SCREW
34	Extention, Shield
35	Support, Element
36	Leg, Leveling
37	Pedestal, Bottom
38	W10271711 Whirlpool Support Bracket
39	Support
40	RUNNER, DRAWER
41	ROLLER, DRAWER
42	Shaft, Roller
43	Nut, Lock
44	Retainer, Bottom
45	GUARD, EDGE
46	RELAY, AUX
