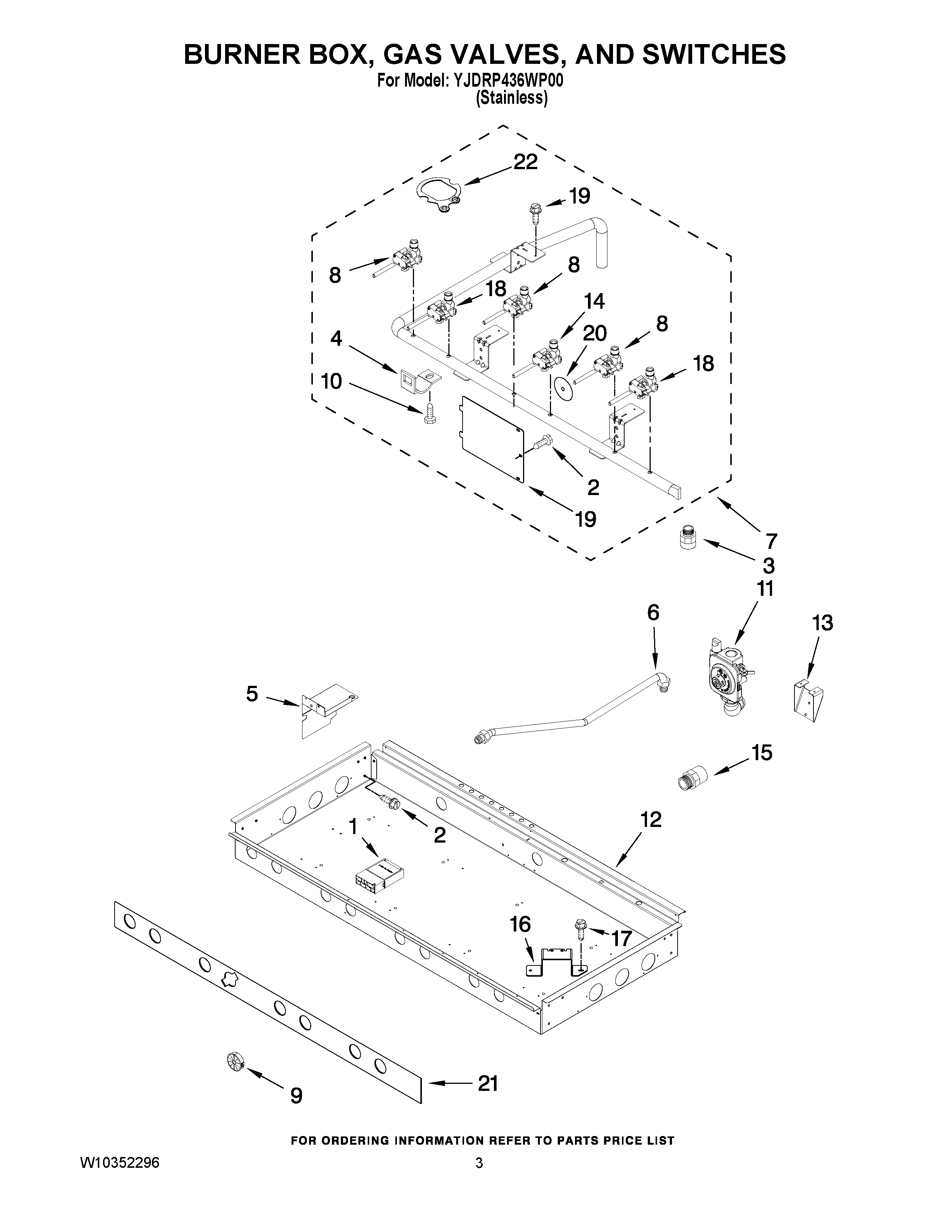

YJDRP436WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

YJDRP436WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

YJDRP436WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIMAY W10145490
NIMAY W10145488
NIMAY W10145483
NIMAY W10145482
NIMAY W10145479
NIMAY W10145480
NIMAY W10145481
NITUBING, GAS (RF – RIGHT)
1MAY 7431P039-60
3ADAPTER, FEMALE
4MAY W10189107
5MAY W10137323
6MAY W10269191
7MAY W10145507
8VALVE, SINGLE LR,CF,RR
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10293267
12MAY W10250425
13MAY W10115850
14VALVE, SINGLE (CR)
15ADAPTER, MALE
16BRACKET, BURNER (CR)
16BRACKET, BURNER (RF,RR,CF,LR,LF)
17MAY 7101P426- 60
18VALVE, GAS (LF & RF)
19MAY W10115843
20MAY W10189177
21MAY W10145622
22MAY 8286930
