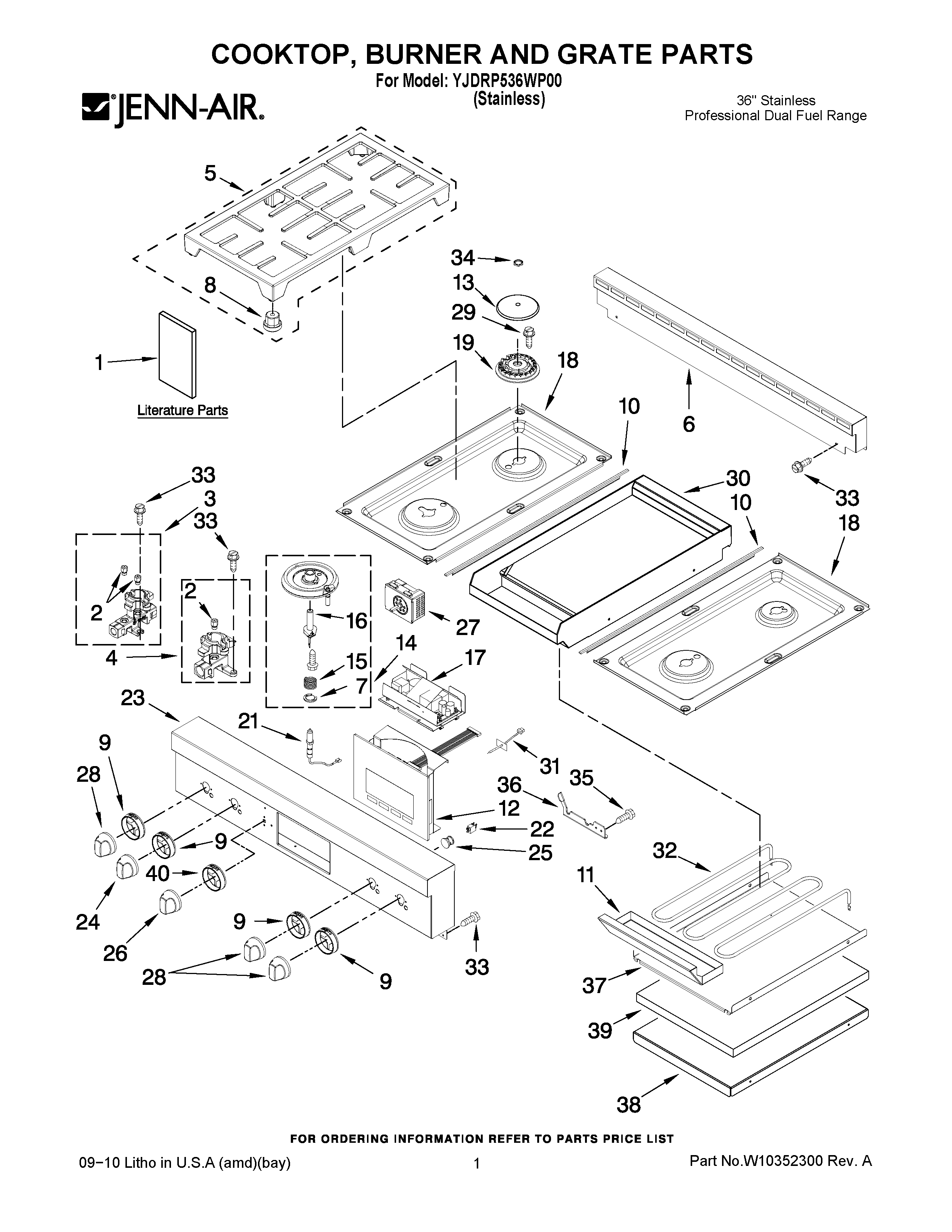

YJDRP536WP00 01 – COOKTOP, BURNER AND GRATE PARTS

YJDRP536WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

YJDRP536WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10294843
1MAY W10145393
1MAY W10294839
1MAY W10295367
1INSTR, INSTALLER
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2ORIFICE (L)
2ORIFICE (LR & RF)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (RR)
4ORIFICE HOLDER (LR & RF)
5MAY W10276551
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10L-STRIP
11DRIP, TRAY GRIDDLE
12MAY W10344181
13CAP, BURNER (RR)
13CAP, BURNER (LR & RF)
13CAP, BURNER (LF)
14BASE, BURNER (LF)
14BASE, BURNER (LR & RF)
15SPRING, ELECTRODE (LF, LR & RF)
15SPRING, ELECTRODE (RR)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
17ASSEMBLY, POWER SUPPLY
18MAY W10282192
18MAY W10189104
19BURNER HEAD (LR & RF)
19BURNER HEAD (RR)
19BURNER HEAD (LF)
21ELECTRODE, WIRE
22MAY W10116151
23MAY W10295786
24KNOB, CONTROL LF
25MAY W10294500
26MAY W10145566
27MAY W10116113
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30MAY W10276498
31MAY W10319835
32MAY W10138296
33SCREW (8BX3/8-NI)
34MAY W10115953
35MAY 7101P500-60
36BRACKET,CONSOLE (RIGHT)
36BRACKET,CONSOLE (LEFT)
37MAY W10145620
38MAY W10246074
39MAY W10145621
40MAY W10145453
