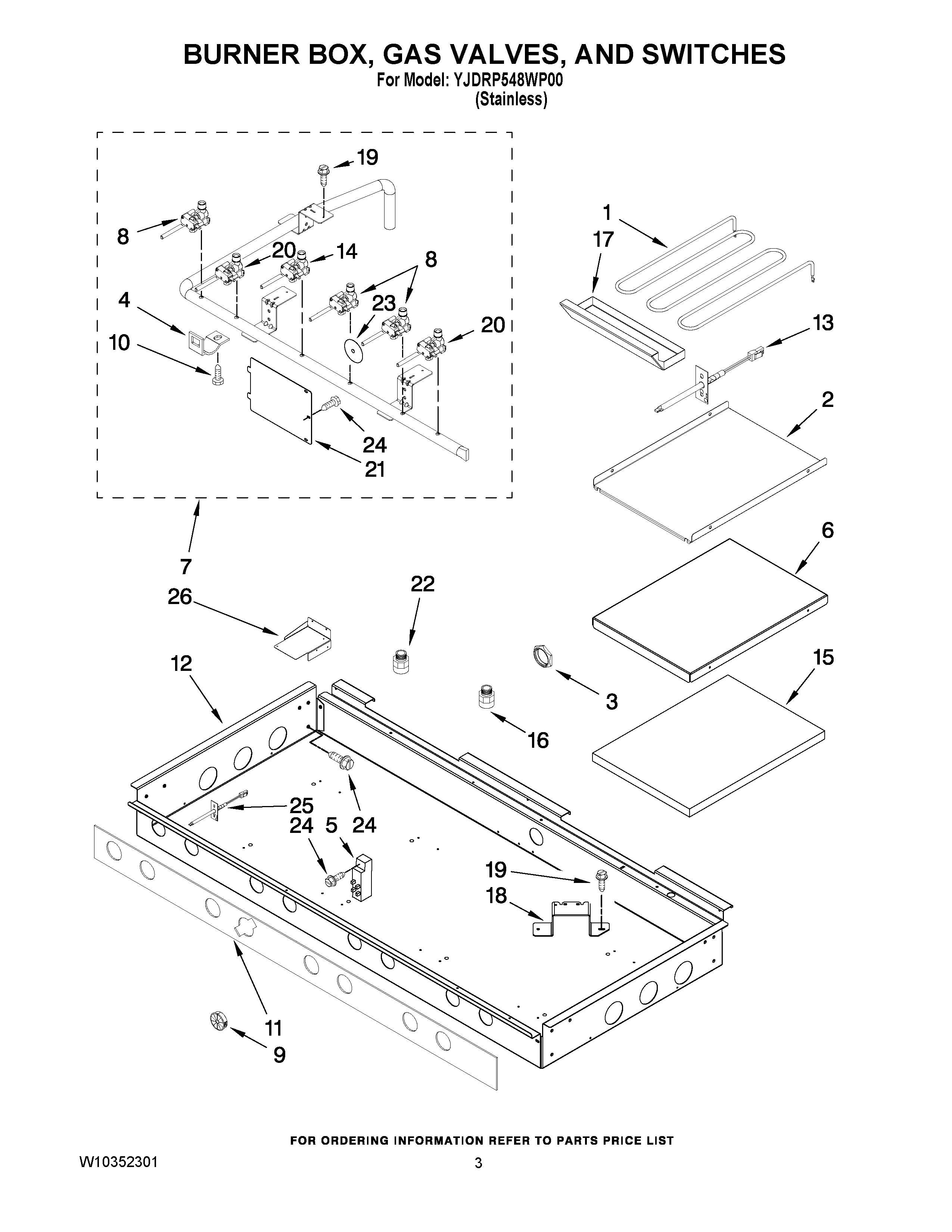

YJDRP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

YJDRP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

YJDRP548WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIMAY W10145492
NIMAY W10145491
NIMAY W10145493
NIMAY W10145494
NIMAY W10145496
NIMAY W10145499
NIMAY W10145497
NIMAY W10145498
1MAY W10138296
2MAY W10145620
3MAY W10115953
4MAY W10189107
5MAY 7431P039-60
6MAY W10246074
7MAY W10145509
8VALVE, SINGLE LR,CF,RR
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10160202
12MAY W10250424
13MAY W10319835
14VALVE, SINGLE (CR)
15MAY W10145621
16ADAPTER, FEMALE
17DRIP, TRAY GRIDDLE
18BRACKET, BURNER (CR)
18BRACKET, BURNER (RF,RR,CF,LR,LF)
19MAY 4450800
20VALVE, GAS (LF & RF)
21MAY W10115843
22ADAPTER, MALE
23MAY W10189177
24MAY 7101P426- 60
25MAY W10131825
26MAY W10137323
