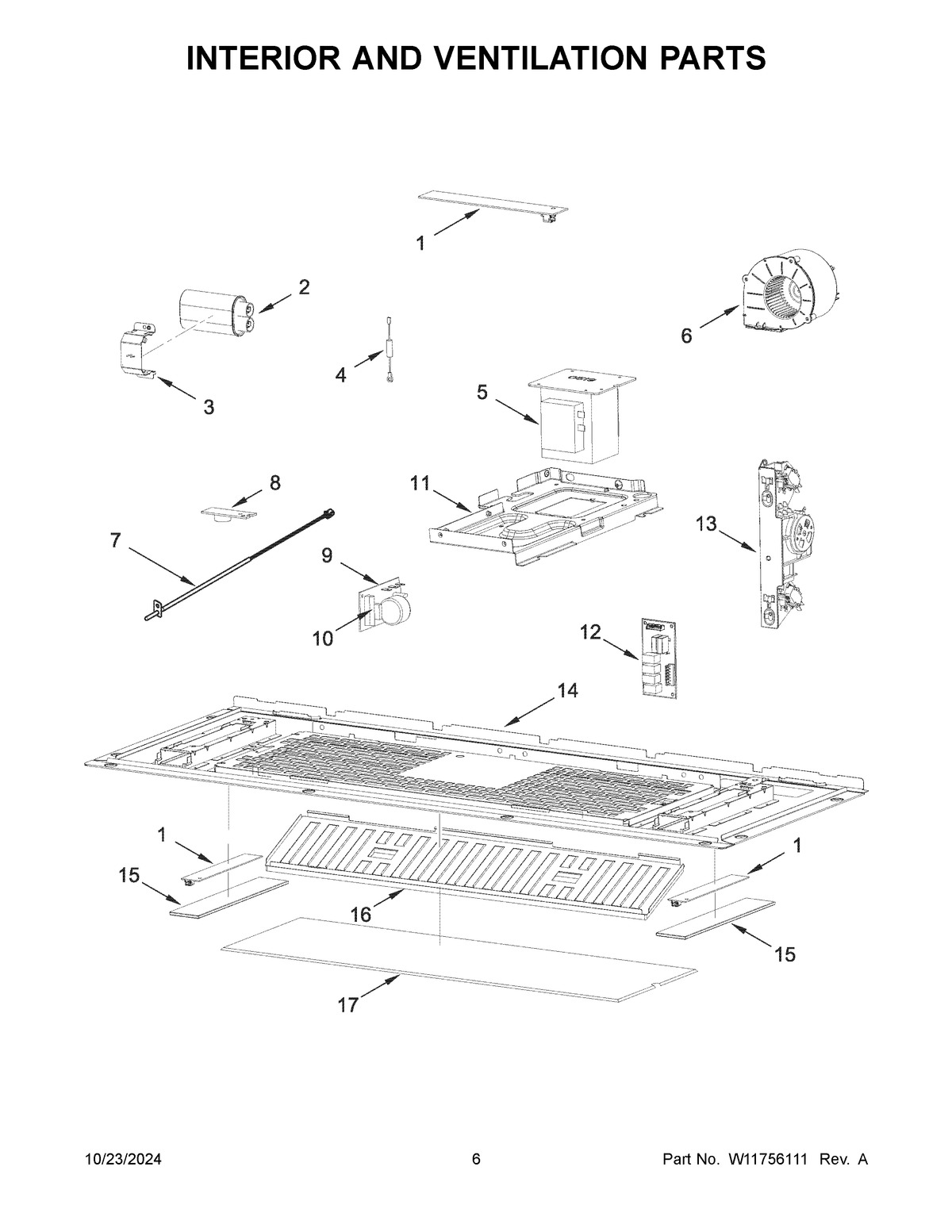

YJMHF930RSS00 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	LIGHT
2	8206562 Whirlpool Microwave Capacitor MG
3	W11095808 Whirlpool Compactor Bracket
4	W11256462 Whirlpool Microwave Diode
5	TRANSFORMR
6	MOTOR-FAN
7	THERMOSTAT, CONVECTION
8	W10163422 Whirlpool Microwave Thermistor
9	WPW10531156 Whirlpool Microwave Filter
10	FUSE-THRML
11	PLATE, HVT SUPPORT
12	W11707312-includeCORE Whirlpool W11707312 Dishwasher Electronic Control Board with Core
13	W11662685 Whirlpool Interlock Assembly
14	PLATE, BOTTOM
15	GLASS, LIGHT
16	FILTER, CHARCOAL
17	FILTER, GREASE
