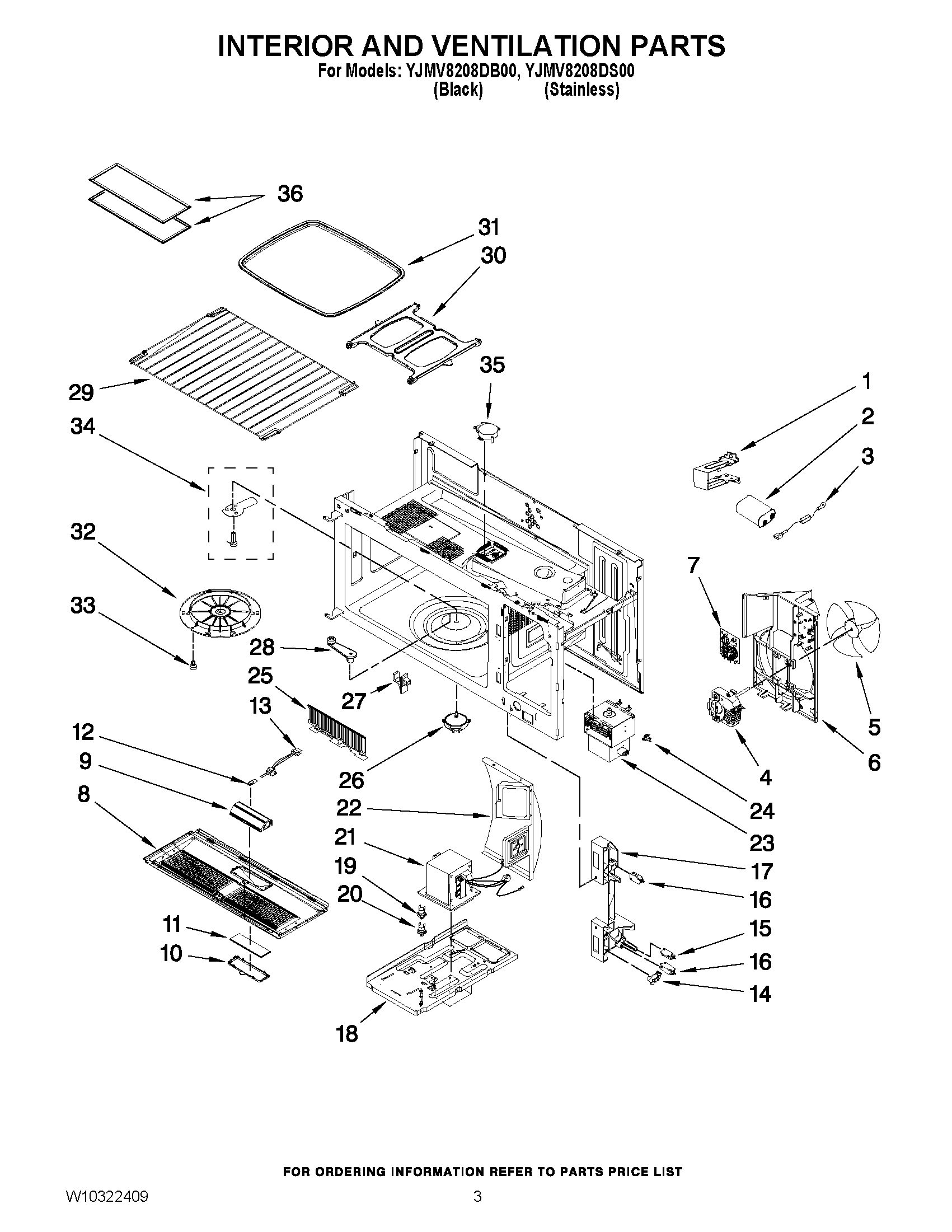

YJMV8208DB00 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY DE61-00115A
2	2501-001035 Samsung Microwave C-Oil High Voltage Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	MAY W10250841
5	BLADE, FAN
6	MAY W10197780
7	MAY W10182040
8	MAY W10192477
10	DE63-00137B Samsung Cover-Glass Cooktop
11	DE64-00911A Samsung Glass Cooktop Lamp
12	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13	DE47-00032B Samsung Microwave Oven HALOGEN Lamp Light Socket
14	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15	MAY 3405-001033
16	WP3405-001034 Whirlpool Microwave Switch
17	LATCH BOARD
18	MAY W10187747
20	DE47-20034A Samsung Microwave Thermostat
21	MAY W10261240
22	MAY W10197689
23	WPW10126786 Whirlpool Microwave Magnetron
24	DE47-20007A Samsung Microwave Oven Thermostat
25	MAY W10197680
26	Motor, Turntable
27	DE61-00375A Samsung Holder Rack
28	MAY W10258244
29	DE97-00369A Samsung Wire Assembly Rack
30	MAY DE61-00855A
31	MAY DE63-00383A
32	MAY W10258285
33	MAY DE66-20095B
34	MAY W10197709
36	DE63-00196A Samsung Aluminum Air Filter
