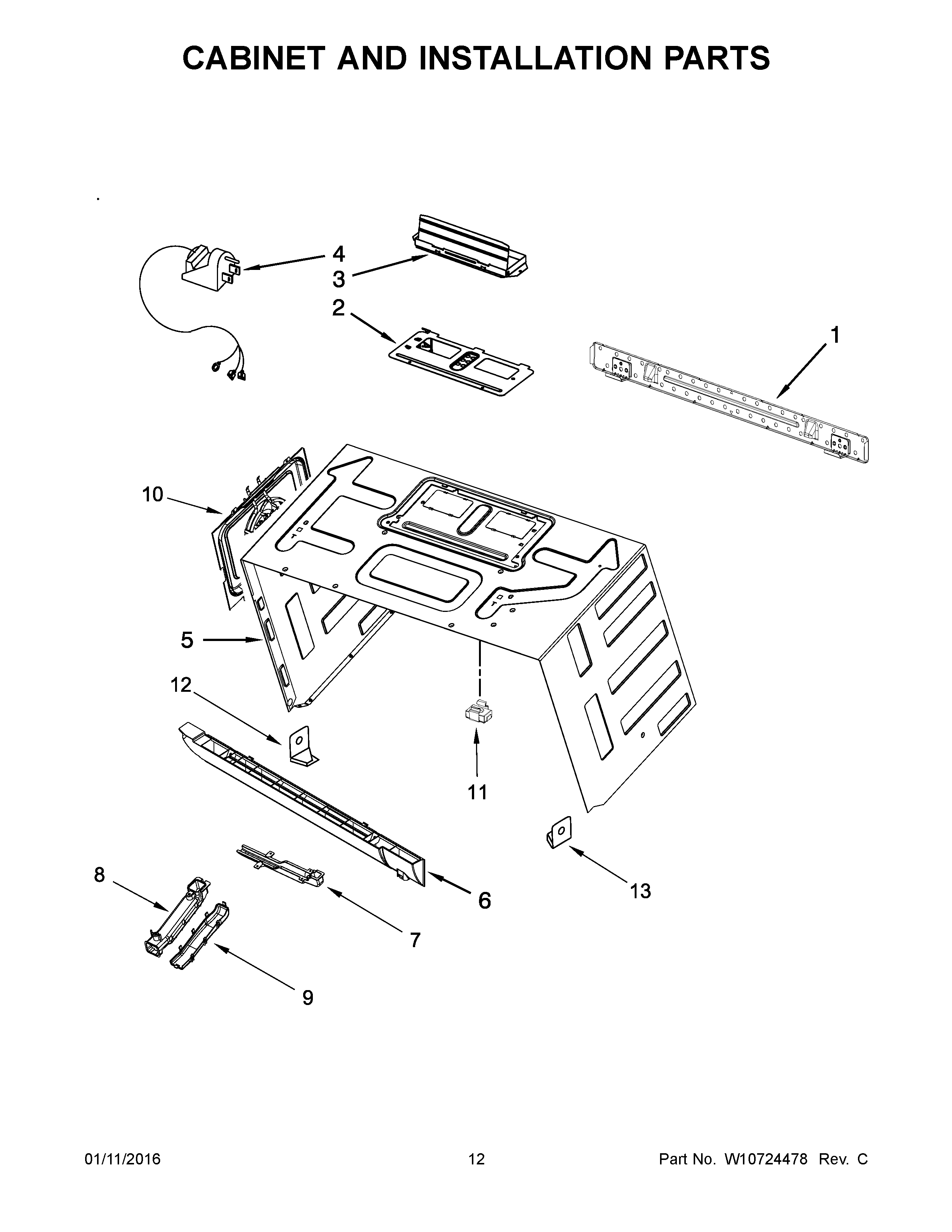

YJMV9196CS0 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MISCELLANEOUS PARTS, HARNESS, DOOR CONTROL LIGHT CABLE
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NI	MAY W10571450
NI	MAY W10571451
NI	MAY W10571454
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, ACCESSORIES, PLATE, DOOR BAFFLE (HEAT REFLECTOR)
NI	Installation, Hardware
NI	MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	MAY 8206442
4	CORD, POWER
5	MAY W10571408
6	MAY W10701701
7	MAY W10570212
8	MAY W10533488
9	MAY W10533489
10	MAY W10722311
11	ASSEMBLY, MOUNTING NUT
12	HOLDER, VENT LEFT SIDE (BLACK)
13	HOLDER, VENT RIGHT SIDE (BLACK)
