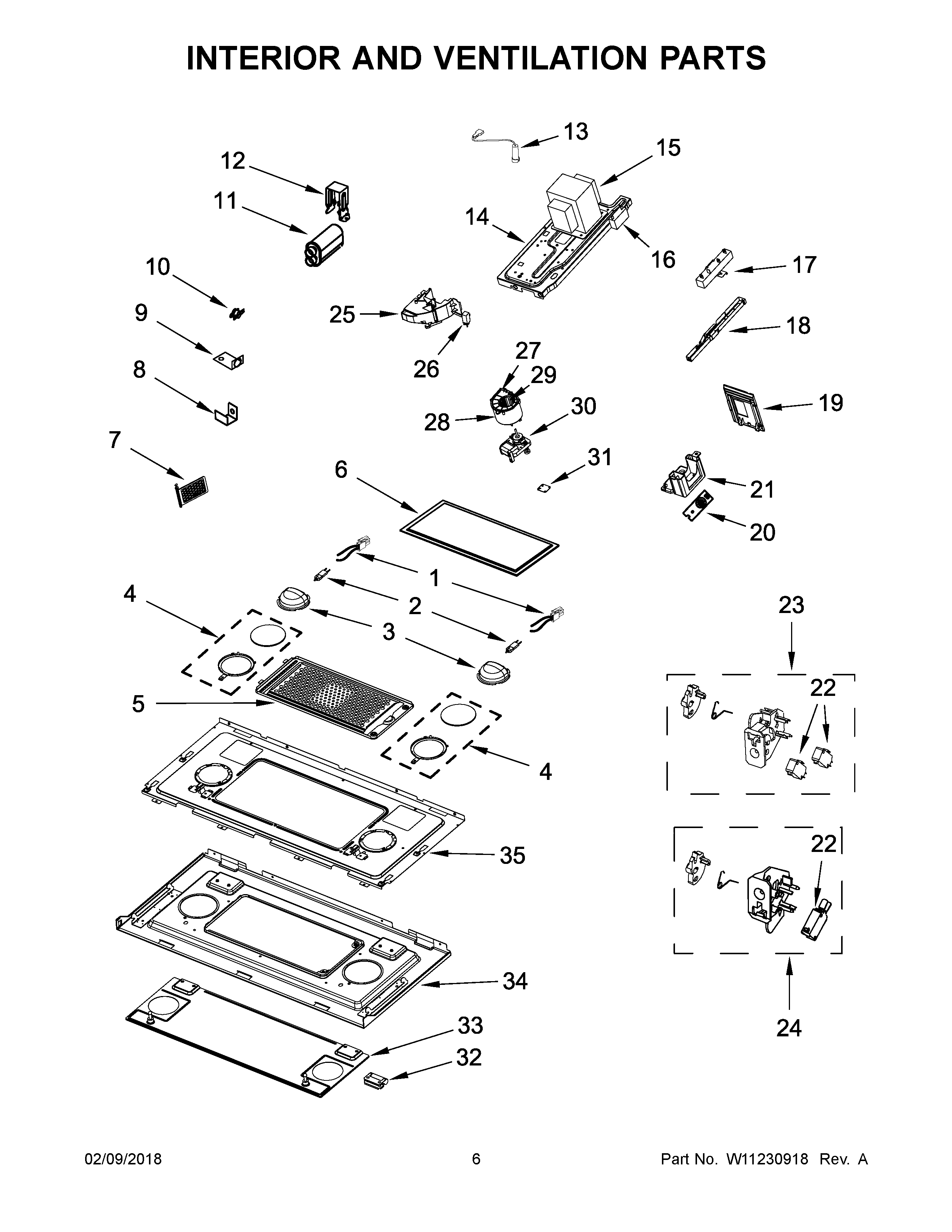

YJMV9196CS2 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY W10572351
2	LAMP, HALOGEN
3	MAY W10574986
4	MAY W10666614
5	MAY W10614204
6	MAY W10208631
7	MAY W10533486
8	CLIP
9	MAY W10259248
10	MAY W10599629
11	MAY W10654462
12	BRACKET, CAPACITOR
13	MAY W10575765
14	CHASSIS
15	TRANSFORMER, HIGH VOLTAGE
16	MAY W10605897
17	MAY W10568805
18	MAY W10540718
19	MAY W10533107
20	MAY W10536989
21	MAY W10533480
22	LINER (NOT A SERVICEABLE PART)
23	ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
24	ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
25	MAY W10631701
26	MAY W10458325
27	MAY W10533502
28	MAY W10533501
29	MAY W10533503
30	MOTOR, COOLING FAN
31	MAY W10523009
32	MAY W10574978
33	MAY W10614211
34	MAY W10614222
35	MAY W10614209
