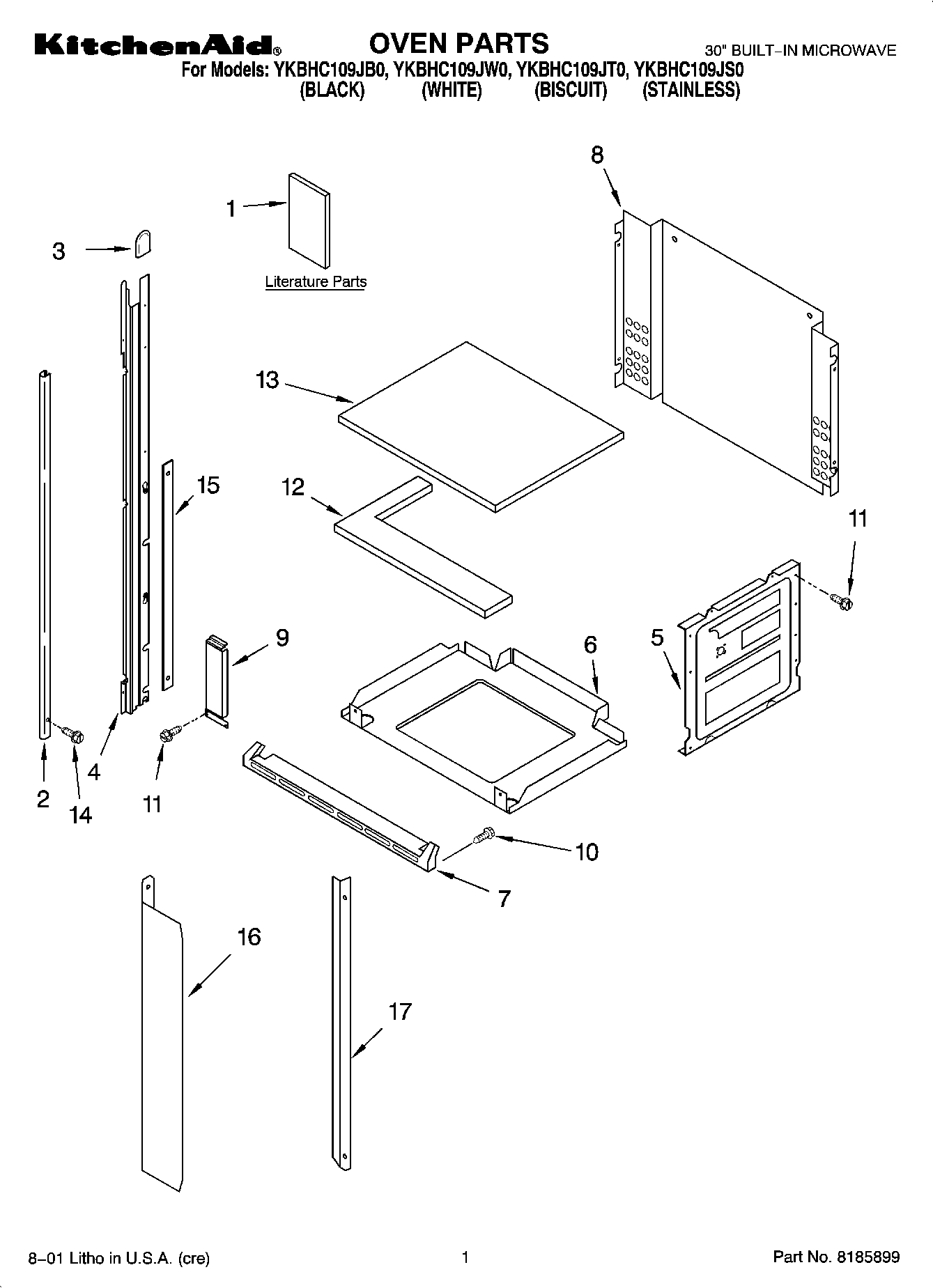

YKBHC109JS0 01 – OVEN PARTS

YKBHC109JS0 01 – OVEN PARTS

Written by

in

YKBHC109JS0 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet (English))
1Literature Parts (Use & Care Guide Lower (French))
1Literature Parts (Easy Set Guide (French))
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Chart, High Speed Cooking)
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (French))
1Literature Parts (Easy Set Guide)
2Trim, Side (RH Stainless)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (LH White)
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2Trim, Side (LH Stainless)
3Cap, Spacer
4Rail, Side (Left Side)
4Rail, Side (Right Side)
5Side, Combo
6Base, Chassis
7Trim, Bottom (White)
7Trim, Bottom (Biscuit)
7Trim, Bottom (Stainless)
7Trim, Bottom (Black)
8Chassis, Back
9Extension Filler
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
12WPL 4452492
13WPL 4452491
14WP8281236 Whirlpool Screw
14WP694091 Whirlpool Screw
15Spacer
16Bracket
17Bracket
