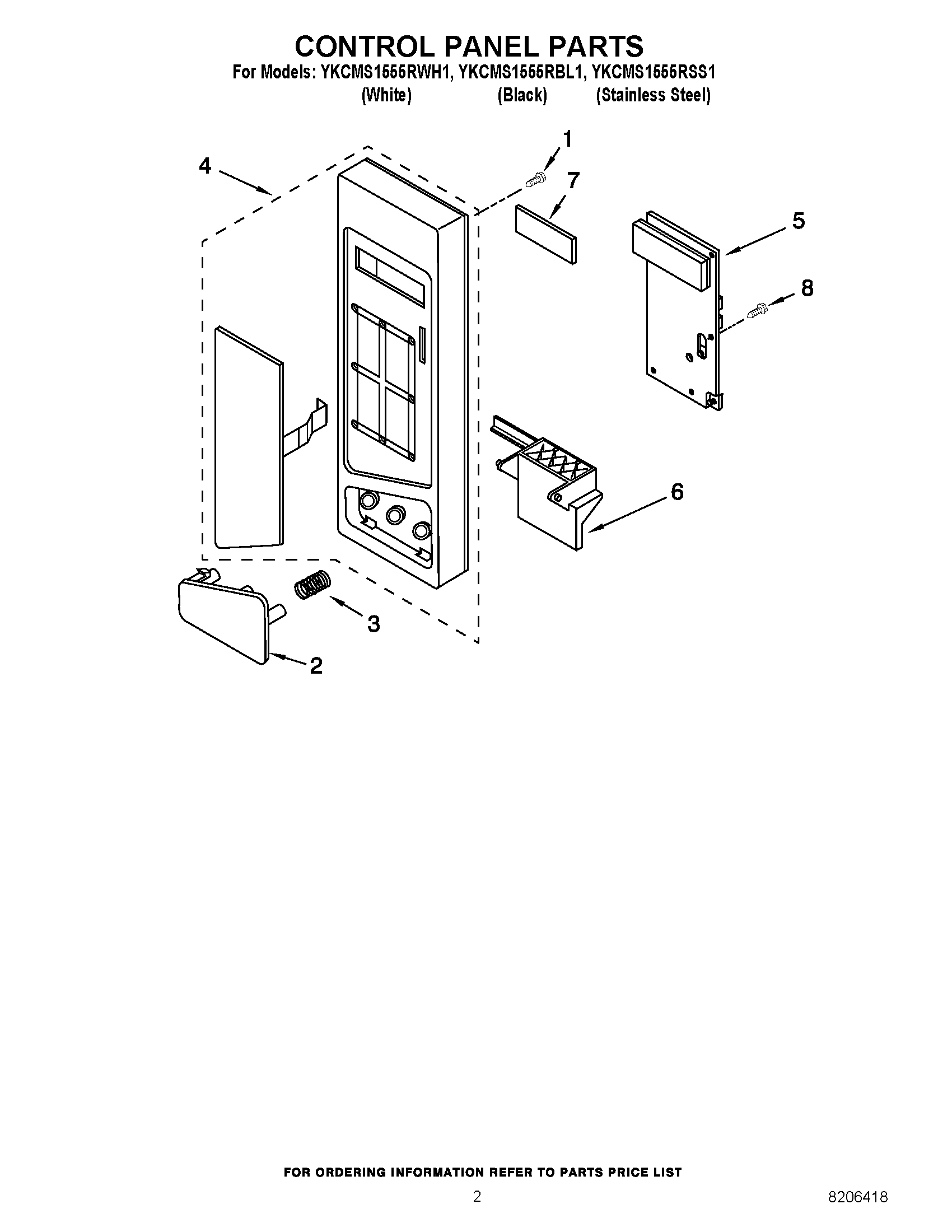

YKCMS1555RBL1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Screw
2Release Button (Black)
2Release Button (White)
2Release Button (Stainless)
3WP4158178 Whirlpool Microwave Spring
4Control Panel (Stainless)
4Control Panel (White)
4Control Panel (Black)
5P.C.B Sub Assembly
6WP8205451 Whirlpool Door Latch Bracket
7Lens
8Screw
