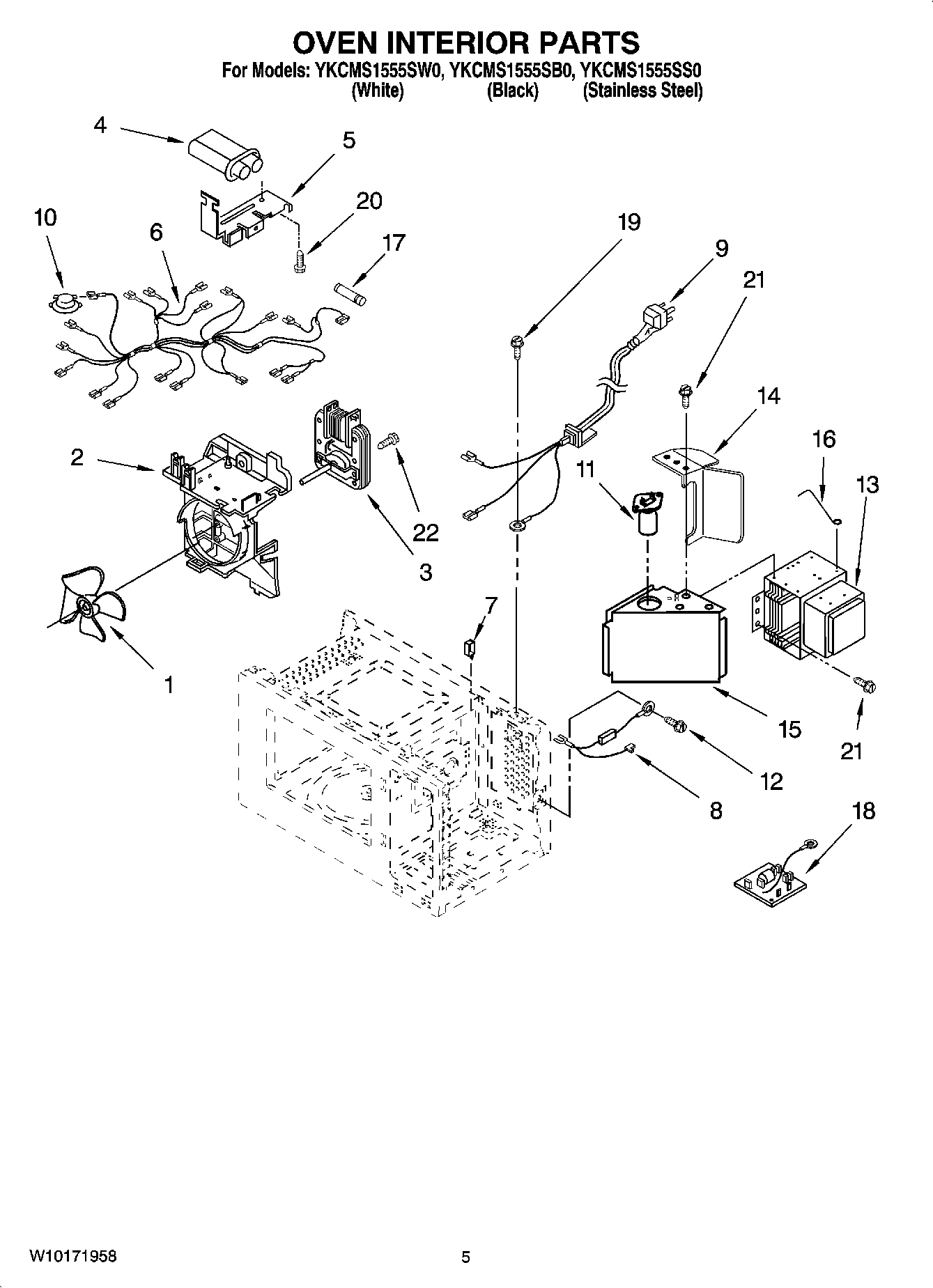

YKCMS1555SW0 05 – OVEN INTERIOR PARTS

YKCMS1555SW0 05 – OVEN INTERIOR PARTS

Written by

in

YKCMS1555SW0 05 – OVEN INTERIOR PARTS

Products

PositionProduct
1Blade, Fan
2Guide, Suction
3Motor, Fan
4H.V. Capacitor
5H.V.C Bracket
68206282 Whirlpool Microwave Wire Harness
7Holder
8WP8205489 Whirlpool Microwave Voltage Wire
98206281 Whirlpool Microwave Power Cord
10Thermostat
11Lamp, Baseless
12Screw
13W10859575 Whirlpool Magnetron
14Bracket
15Duct, Air
16Bracket, Support
17WP8183507 Whirlpool Microwave Fuse
18Filter, Noise
19Screw
20Screw
214344826 Whirlpool Refrigerator Screw
22Screw
