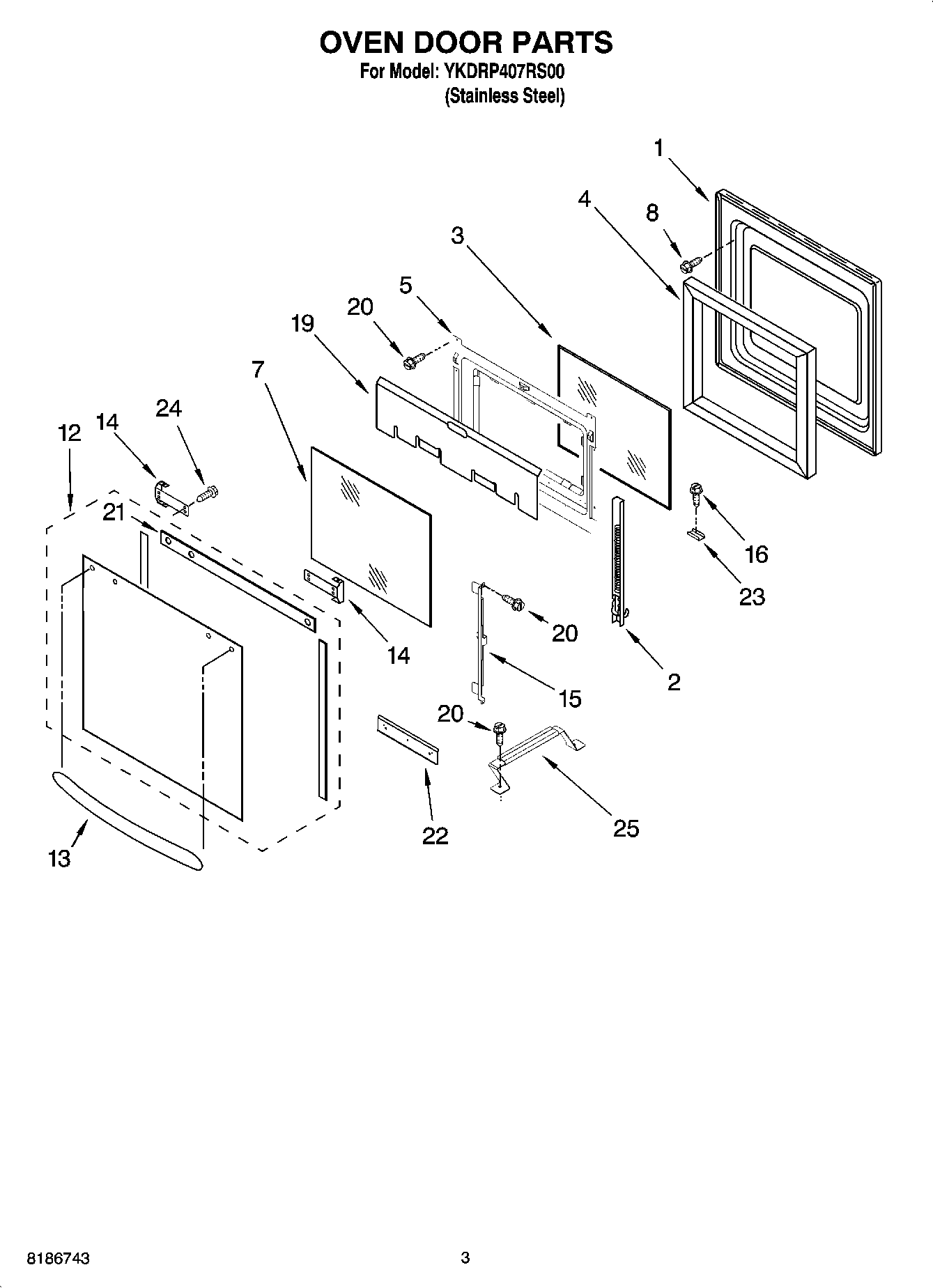

YKDRP407RS00 02 – OVEN DOOR PARTS

YKDRP407RS00 02 – OVEN DOOR PARTS

Written by

in

YKDRP407RS00 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760578 Whirlpool Oven Left Door Hinge
2WP9760577 Whirlpool Oven Right Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
7WP9759225 Whirlpool Inner Door Glass
8WP4449743 Whirlpool Screw
12W10401225 Whirlpool Oven Outer Door Glass
13Door Handle (Stainless Steel)
144455803 Whirlpool Oven Bracket
14Bracket, Handle (L.Hand)
15WP9759229 Whirlpool Mounting Bracket
16WP3400832 Whirlpool Screw
19Shield, Heat
20WP4449809 Whirlpool Screw
21Seal, Door Top
224457114 Whirlpool Oven Heat Shield
23Retainer, Glass-Clip (Stainless Steel)
24WPW10132940 Whirlpool Dishwasher Screw
25Bracket (3rd Glsss)
