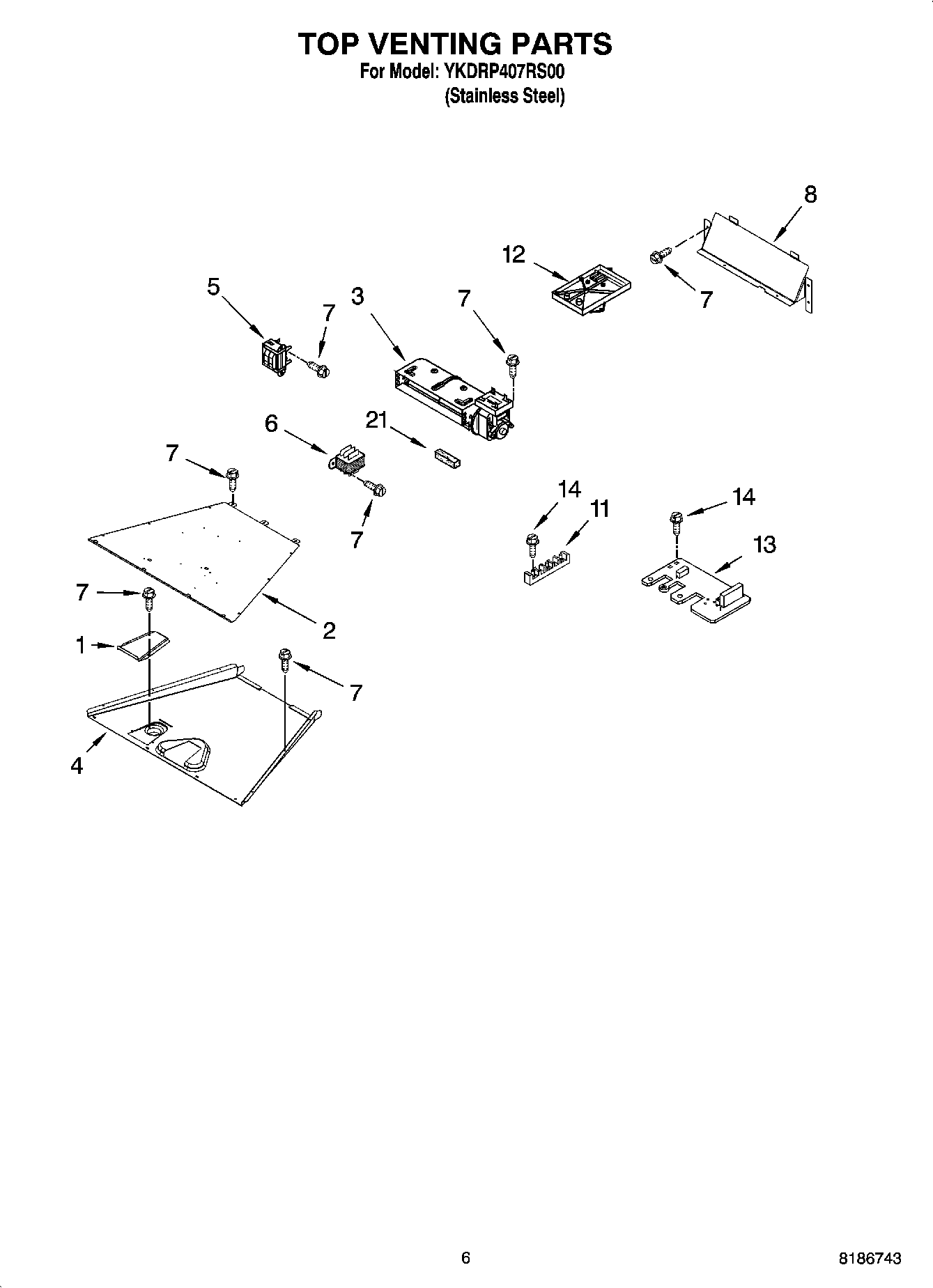

YKDRP407RS00 05 – TOP VENTING PARTS

Written by

Products

Position	Product
1	Vent, Exhaust
2	Vent-Top
3	Blower 60MM
4	Vent-Bottom
5	WP9760588 Whirlpool Transformer
6	Transformer, Control
7	WP4449809 Whirlpool Screw
8	Bracket, Blower
11	WP8203546 Whirlpool Terminal Block
12	Control, Zodiac
13	WP4451985 Whirlpool Noise Filter Board
14	Screw
21	W10491987 Whirlpool Foam Seal
