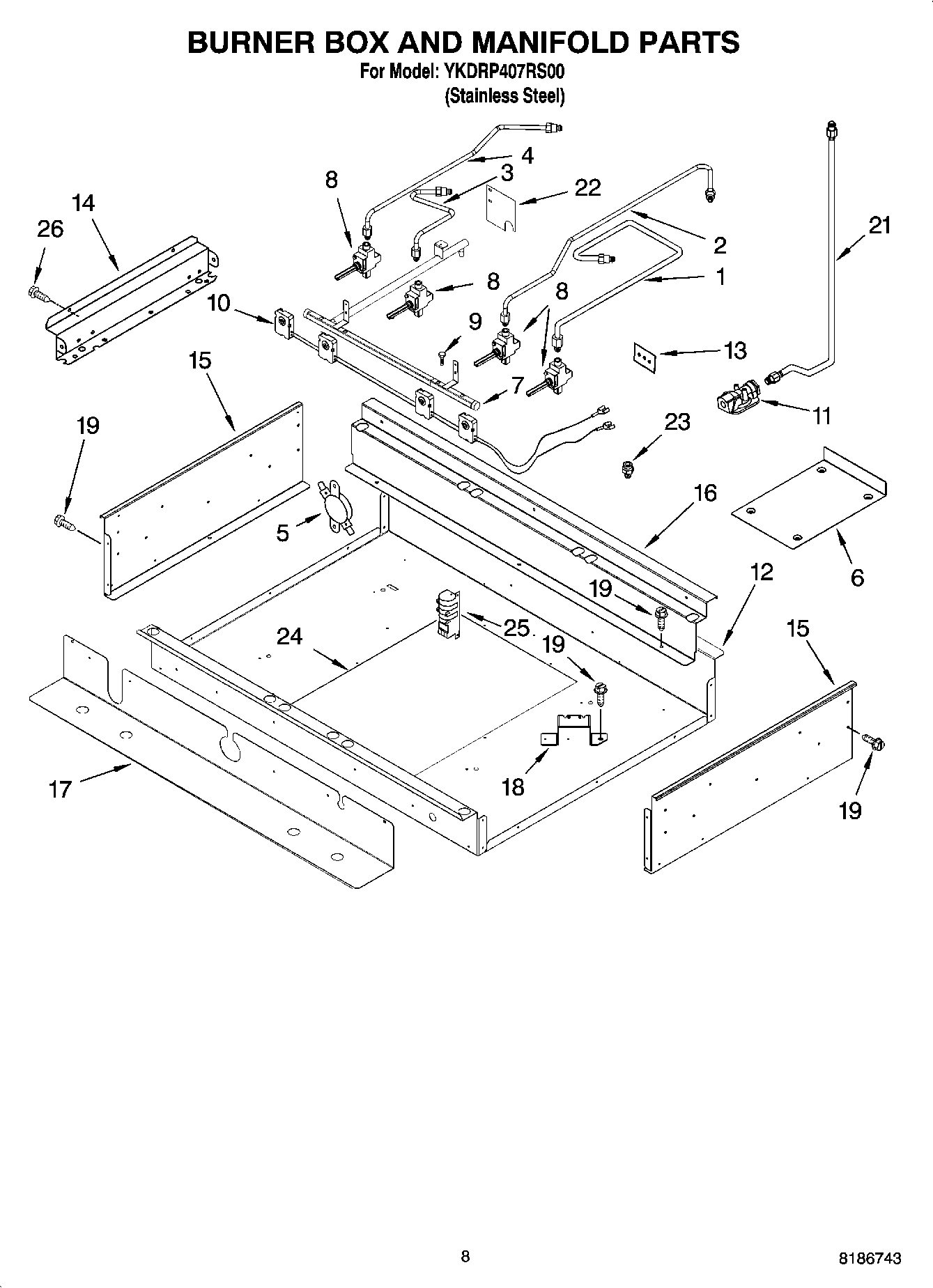

YKDRP407RS00 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – LF
4Tubing, Gas Burner – LR
5WPW10017820 Whirlpool Thermostat
6Shield, Heat
7Manifold
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10WP3188425 Whirlpool Seal Switch
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Box, Burner
13W10491984 Whirlpool Switch Seal
14Side, Control Top (L.Hand)
14Side, Control Top (R.Hand)
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
17Support, Cooktop
18Bracket, Burner
19WP3177991 Whirlpool Screw
21Tube, Manifold
22Cover, Manifold
23WP4450118 Whirlpool Nut
234453115 Whirlpool Oven Adapter
234453116 Whirlpool Oven Adapter
24Cover, Burner Box
25WPW10110491 Whirlpool Spark Module
26WP4449809 Whirlpool Screw
