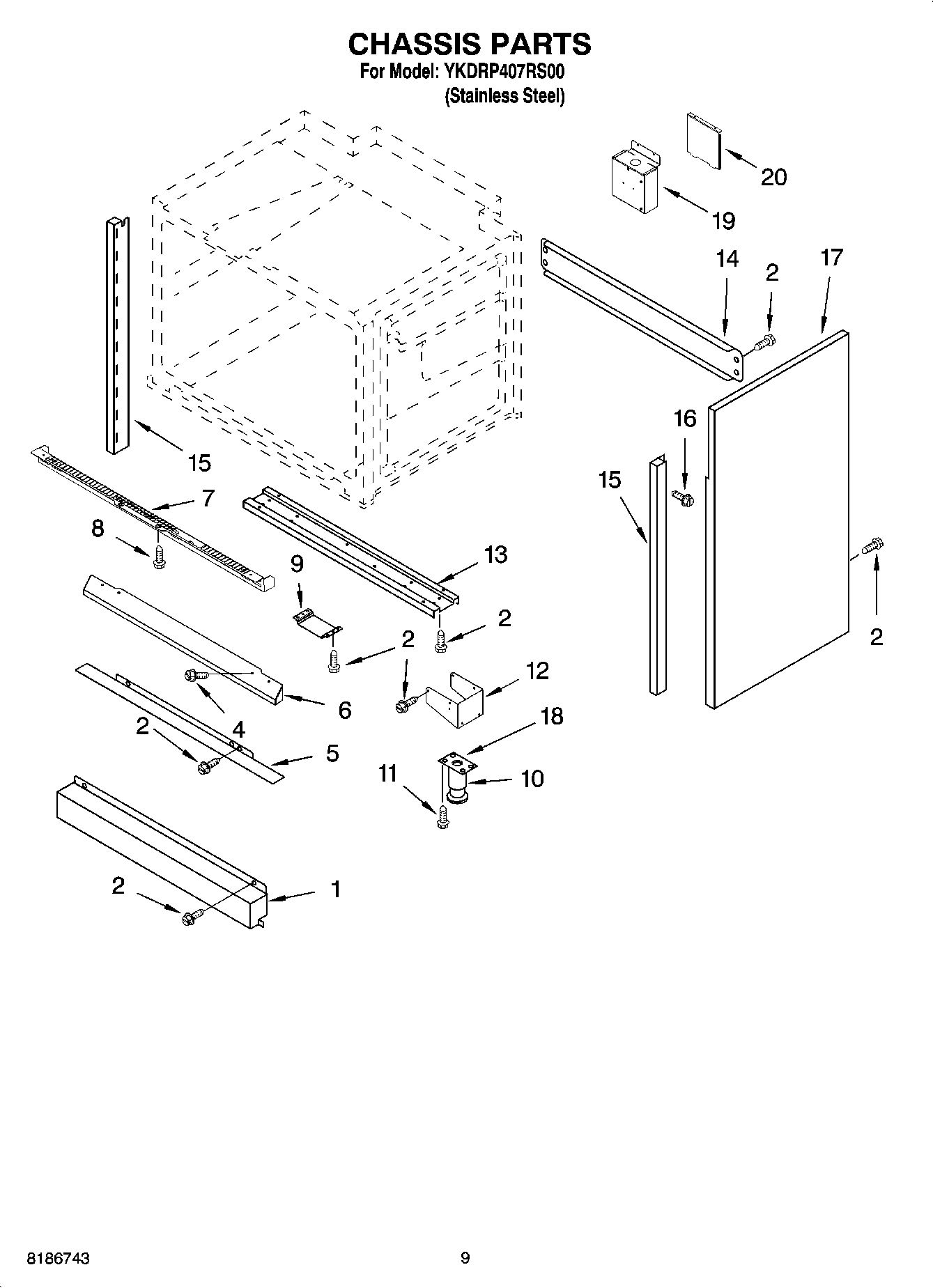

YKDRP407RS00 08 – CHASSIS PARTS, OPTIONAL PARTS

Products

Position	Product
	8303865 Whirlpool Oven Wire Harness
	4453191 Whirlpool Seal
	ADHESIVE, SEAL, RIBBON CABLE
	Harness, Wire (Spark Module)
	WP9759877 Whirlpool Retainer
	Bushing, Fiber
	Bushing
	Cleaner, Stainless Steel
	Harness, Wire (Ignitor 42“)
	Spud Kit
	4456627 Whirlpool Wire Harness
	W10138103 Whirlpool Anti-Tip Bracket
	WPL W10008760
	WPL ARI136983A
	WPL ARI136982A
	WPL ARI136981A
	WPL ARI136980A
	WPL 9760828
	4456626 Whirlpool Wire
	Cord, Power
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	Spacer, Harness
	WP112432 Whirlpool Nut Assembly
	WP4448444 Whirlpool Grommet
	814381 Whirlpool Pin
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WP482338 Whirlpool Refrigerator Adhesive
	WPW10339879 Whirlpool Wire Tie
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WP4449809 Whirlpool Screw
	4450800 Whirlpool Oven Screw
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
1	Vent, Bottom Lower
4	WP3400805 Whirlpool Screw Assembly
5	Deflector, Center
6	Vent, Bottom Upper
7	Vent, Center
7	Gasket
9	Bracket, Mounting Regulator
10	WP9759117 Whirlpool Leveling Foot
11	3400518 Whirlpool Oven Foot Mount Screw
12	Gusset
13	Support, Channel
14	Brace, Rear
15	Trim, Front (Left Side)
15	Trim, Front (Right Side)
16	WP3196557 Whirlpool Screw
17	Side Chassis (Right Side)
17	Side Chassis (Left Side)
18	WP9759118 Whirlpool Mounting Plate
19	Box, Terminal
20	Cover, Terminal Box
