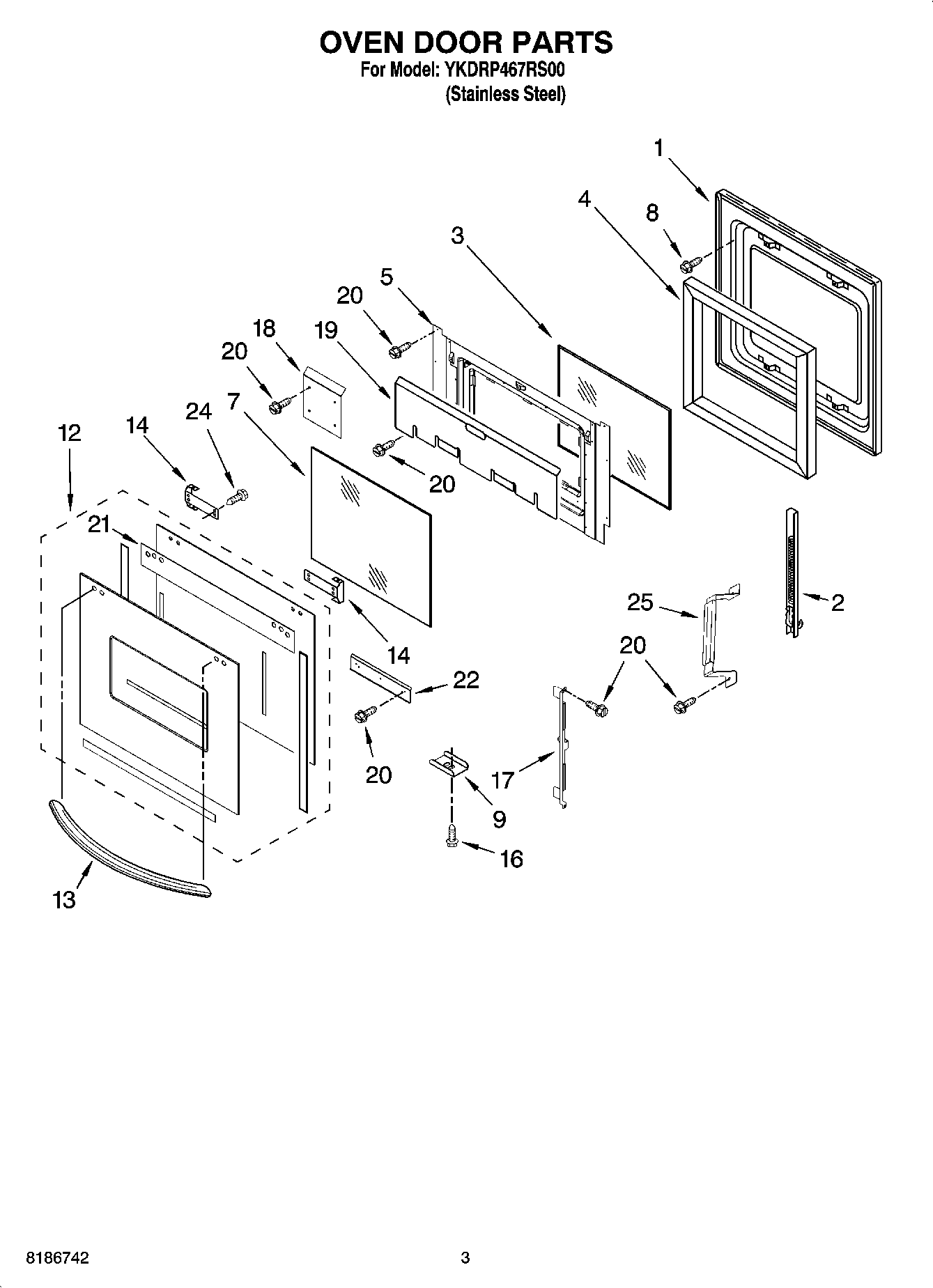

YKDRP467RS00 02 – OVEN DOOR PARTS

YKDRP467RS00 02 – OVEN DOOR PARTS

Written by

in

YKDRP467RS00 02 – OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
2WP9760579 Whirlpool Right Door Hinge
2HINGE-DOOR LH/SS DOOR SPRING
3WP4449259 Whirlpool Glass Window
4Insulation, Door
5Retainer, Glass
7WP9759225 Whirlpool Inner Door Glass
8WP4449743 Whirlpool Screw
9Retainer, Glass
12Assy, Door Glass
13Door Handle
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
16WP3400832 Whirlpool Screw
17WP9759229 Whirlpool Mounting Bracket
18Shield, Heat
19Shield, Top Heat
20WP4449809 Whirlpool Screw
21Seal, Door Top
22Heat Shield (Btm)
24WPW10132940 Whirlpool Dishwasher Screw
25Bracket (3rd Glsss)
