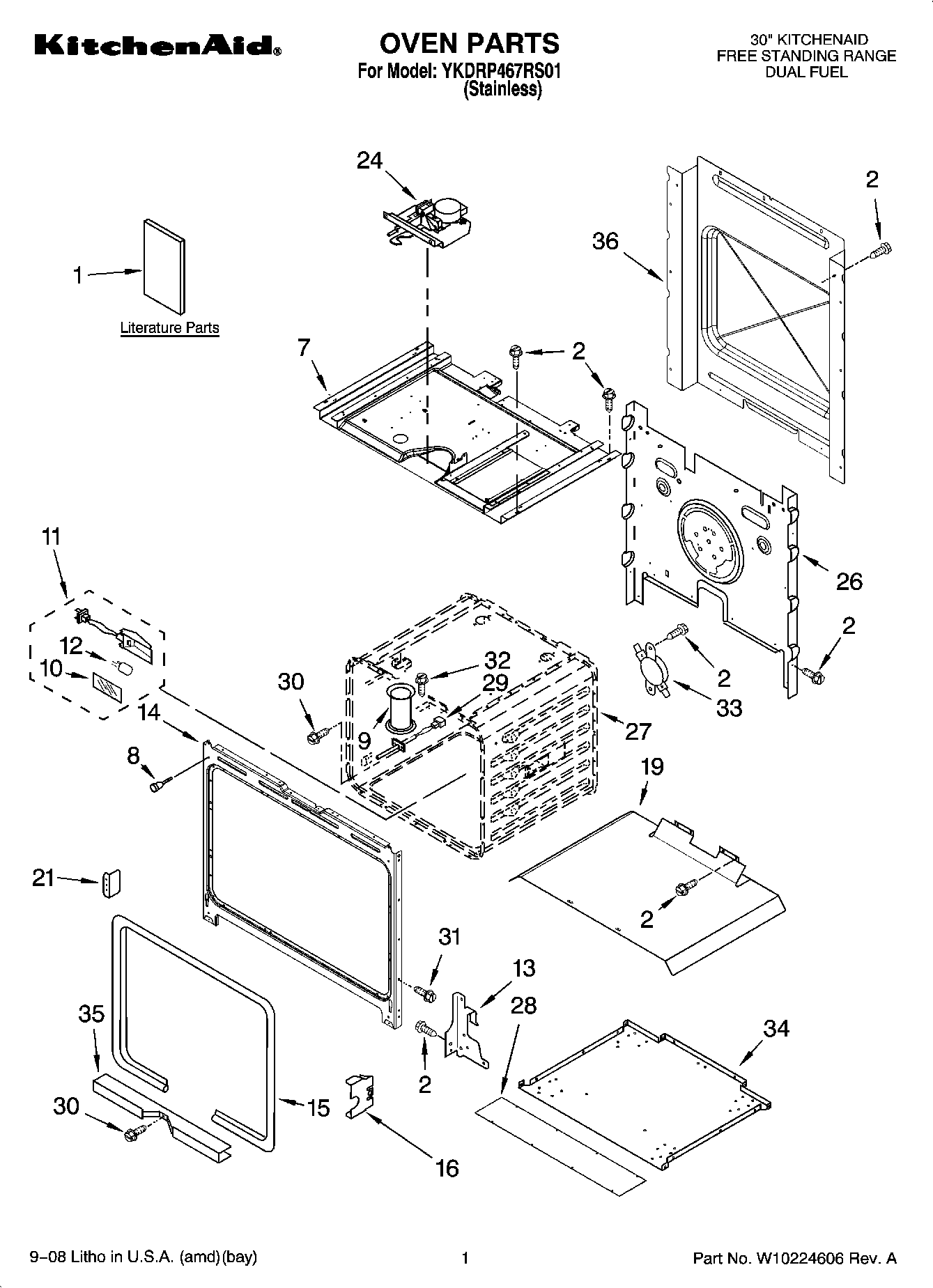

YKDRP467RS01 01 – OVEN PARTS

Products

Position	Product
	Insulation, Wrap
	Insulation, Back
	Insulation
	Following Parts Not Illustrated
1	Use & Care Guide
1	Conversion Instructions
1	Tech Sheet
1	Installation Instructions
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	WP4449809 Whirlpool Screw
7	Top, Chassis
8	W10105790 Whirlpool Bumper
9	W10861715 Whirlpool Vent Tube
10	W10169756 Whirlpool Light Lens
11	WPW10307114 Whirlpool Light
12	BULB-LIGHT
13	WP4455606 Whirlpool Right Hand Hinge
13	WP4455605 Whirlpool Left Hand Hinge
14	Frame, Front
15	W10858111 Whirlpool Door Gasket
16	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
21	Bracket, Support
24	WP9760889 Whirlpool Door Latch
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	Extension, Chassis Base
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WP4449154 Whirlpool Screw
31	Screw
32	SCREW
33	WP4450249 Whirlpool Thermostat
34	Base, Chassis
35	WP4448933 Whirlpool Retainer
36	WPL 9758583
