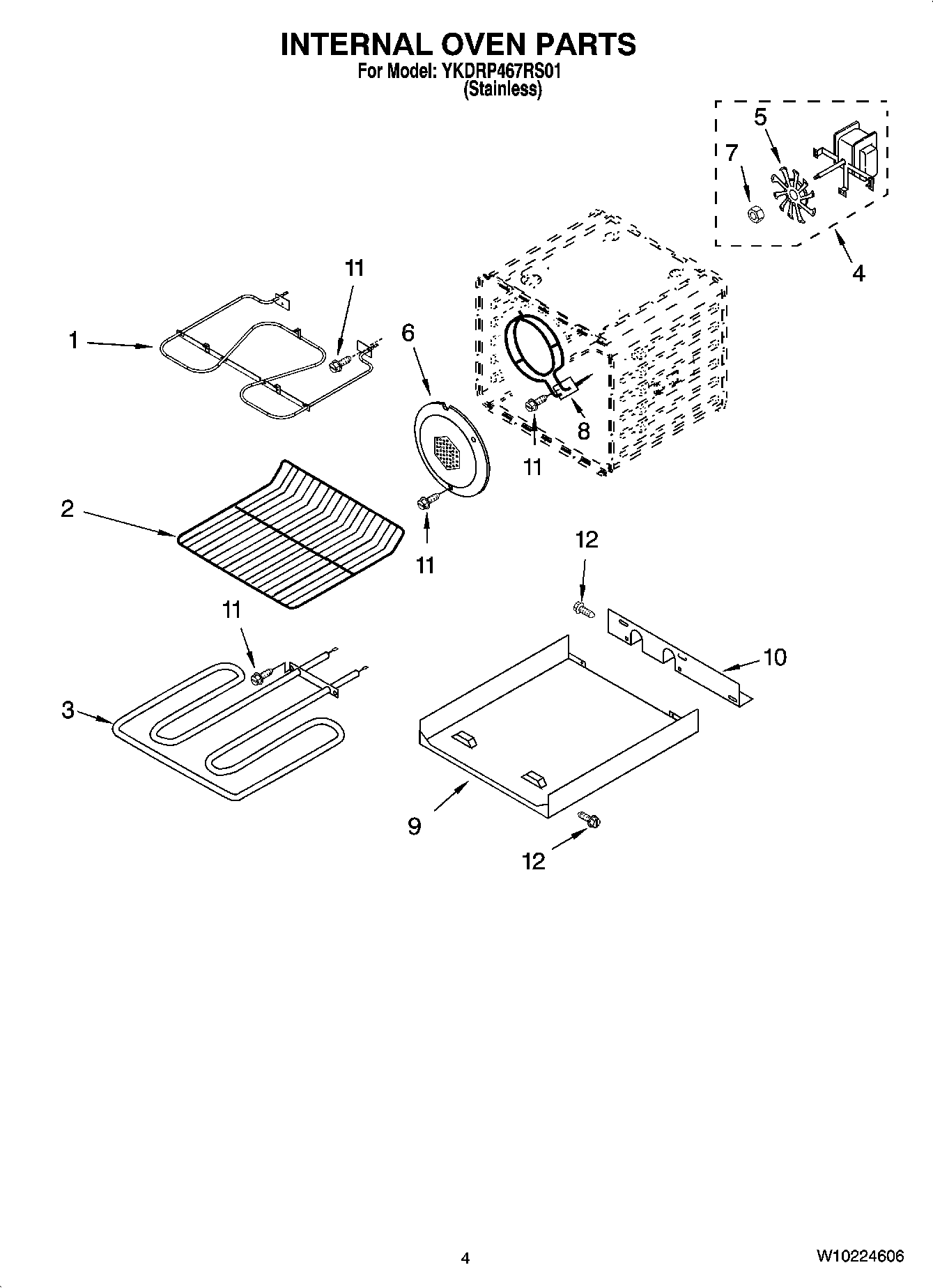

YKDRP467RS01 03 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	9760773 Whirlpool Oven Broil Element
2	Rack, Oven
3	Element, Bake
4	W10794022 Whirlpool Oven Cooktop Fan Motor
5	W10758272 Whirlpool Convection Fan
6	WPW10160821 Whirlpool Fan Cover
7	WPW10116349 Whirlpool Nut
8	W11643125 Whirlpool Element
9	Tray, Hidden Bake
10	Cover, Access
11	WP4449154 Whirlpool Screw
12	WP4449809 Whirlpool Screw
