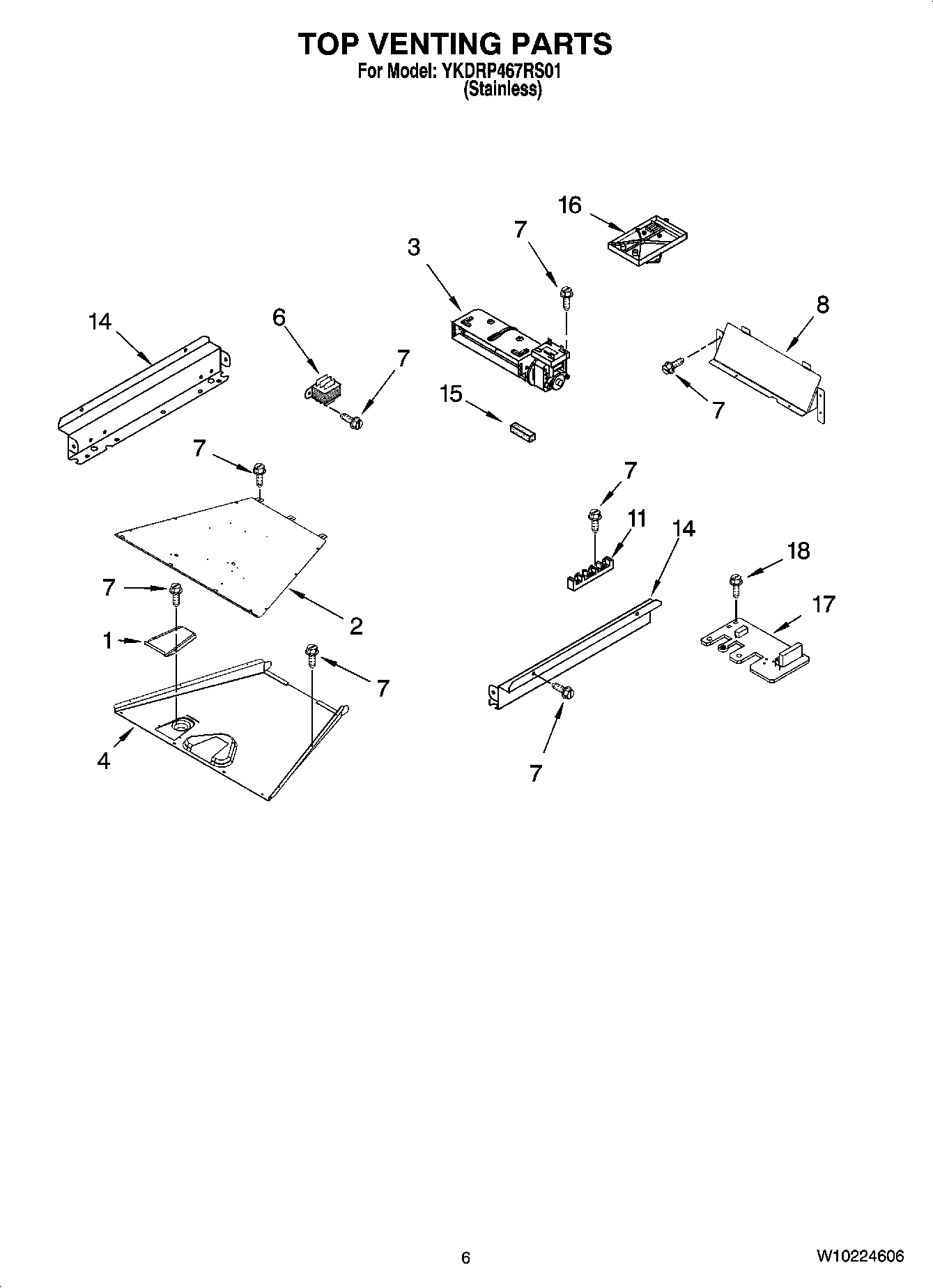

YKDRP467RS01 05 – TOP VENTING PARTS

Products

Position	Product
1	Deflector, Flue
2	Panel, Cooling Vent
3	Blower 60MM
4	Vent-Bottom
6	Transformer
7	WP4449809 Whirlpool Screw
8	Bracket, Mounting Cooling Fan
11	WP8203546 Whirlpool Terminal Block
14	Side, Control Top (R.Hand)
14	Side, Control Top (L.Hand)
15	W10491987 Whirlpool Foam Seal
16	Control, Zodiac
17	WP4451985 Whirlpool Noise Filter Board
18	Screw
