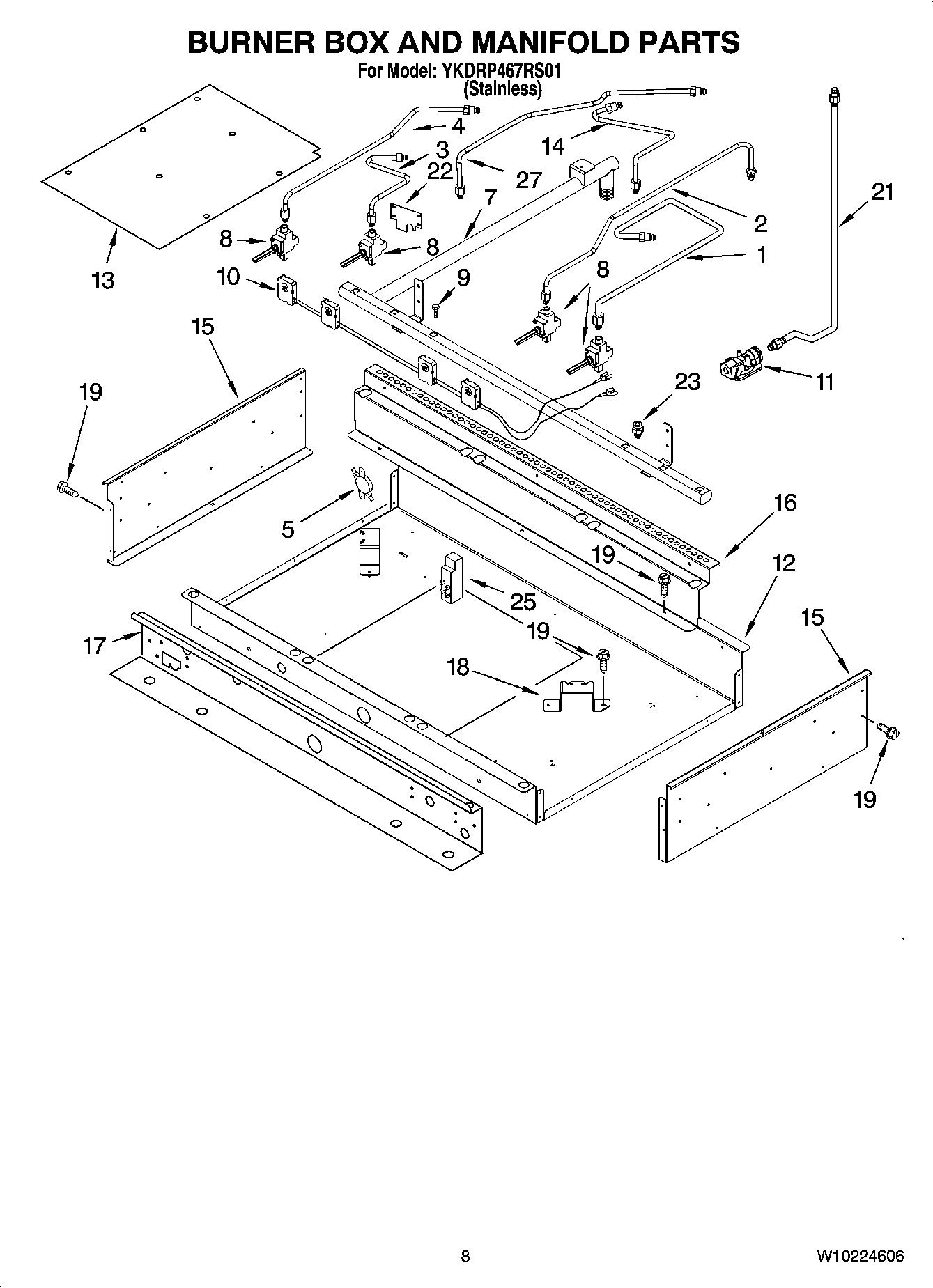

YKDRP467RS01 07 – BURNER BOX AND MANIFOLD PARTS

YKDRP467RS01 07 – BURNER BOX AND MANIFOLD PARTS

Written by

in

YKDRP467RS01 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – LF
4Tubing, Gas Burner – LR
5WPW10017820 Whirlpool Thermostat
7Manifold
8Valve, Burner (Bronze)
8WP4456816 Whirlpool Burner Valve
9WP3186217 Whirlpool Screw
10WP3188425 Whirlpool Seal Switch
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Box, Burner
13Plate, Burner Holder
14Tubing, Gas Burner – CF
15Side, Burner Box (Right Side)
15Side, Burner Box (Left Side)
16Support, Rear
17Support, Cooktop
18Bracket, Burner
19WP3177991 Whirlpool Screw
21Tube, Manifold
22Cover, Manifold Slot
23Adapter (Plug, Close)
234453115 Whirlpool Oven Adapter
23WP4450118 Whirlpool Nut
234453116 Whirlpool Oven Adapter
25WPW10110486 Whirlpool Spark Module
27Tubing, Gas Burner – CR
