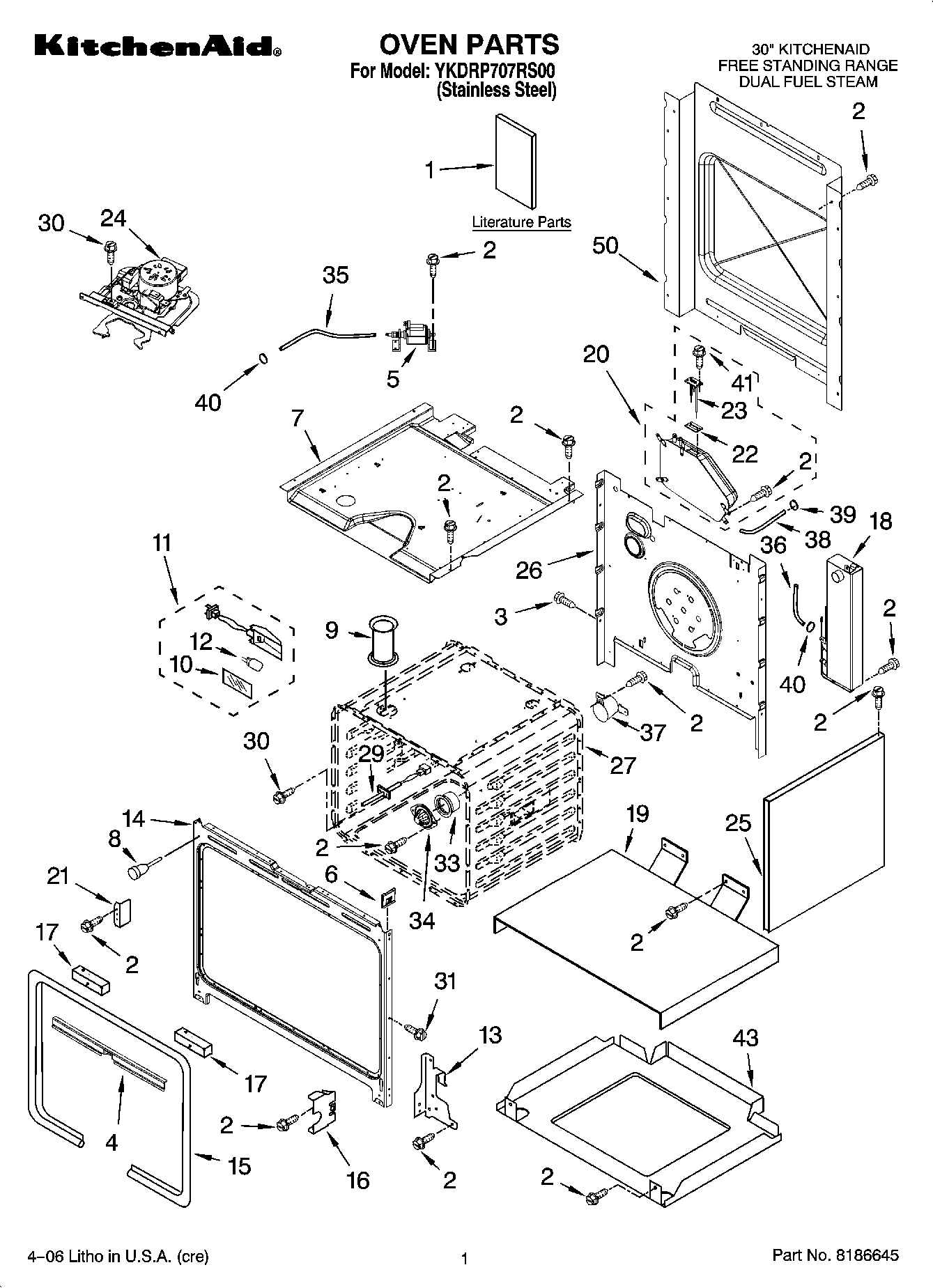

YKDRP707RS00 01 – OVEN PARTS

Products

PositionProduct
1Tech Sheet (French)
1Tech Sheet
1Conversion Instructions
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
1Safe Cooking Tips
2WP4449809 Whirlpool Screw
3WP4449743 Whirlpool Screw
4Retainer, Gasket
58186360 Whirlpool Oven Drain Pump
6WP4450118 Whirlpool Nut
7Top, Chassis
84448520 Whirlpool Oven Bumper
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WP4455606 Whirlpool Right Hand Hinge
13WP4455605 Whirlpool Left Hand Hinge
14Frame, Front
15W11675844 Whirlpool Oven Gasket
164452152 Whirlpool Oven Mounting Bracket
17Spacer, Foam
188186352 Whirlpool Boiler
19Support, Insulation
20Reservoir (Includes Clamps)
21Bracket, Support
22Gasket, Sensor
23Sensor, Level
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4449154 Whirlpool Screw
31Screw
33Orifice, Boiler Slip Fit
34Cover, Orifice Boiler
358186365 Whirlpool Oven Hose
368186366 Whirlpool Oven Hose
37WP4450249 Whirlpool Thermostat
388186367 Whirlpool Oven Hose Assembly
40WP489503 Whirlpool Refrigerator Clamp
41Screw
43Base, Chassis
50W11684730 Whirlpool Insulation
50WPL 4450365
50Insulation Bottom Vent
50WPL 9758583
50FOLLOWING PARTS NOT ILLUSTRATED INSULATION
