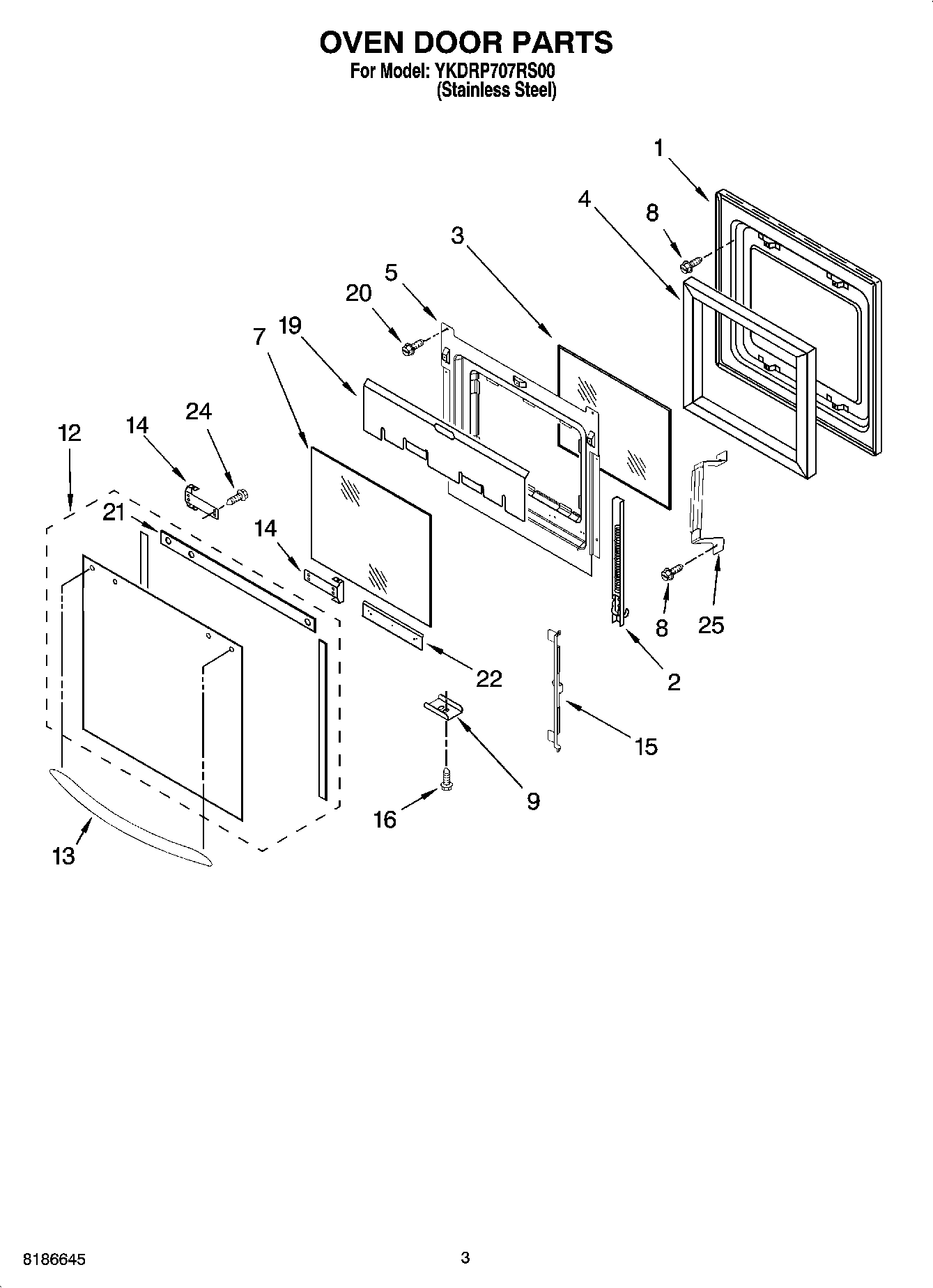

YKDRP707RS00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP9760577 Whirlpool Oven Right Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
9	Retainer, Glass-Clip (Stainless Steel)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Door Handle (Stainless Steel)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	WP3400832 Whirlpool Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
24	WPW10132940 Whirlpool Dishwasher Screw
25	Bracket (3rd Glsss)
