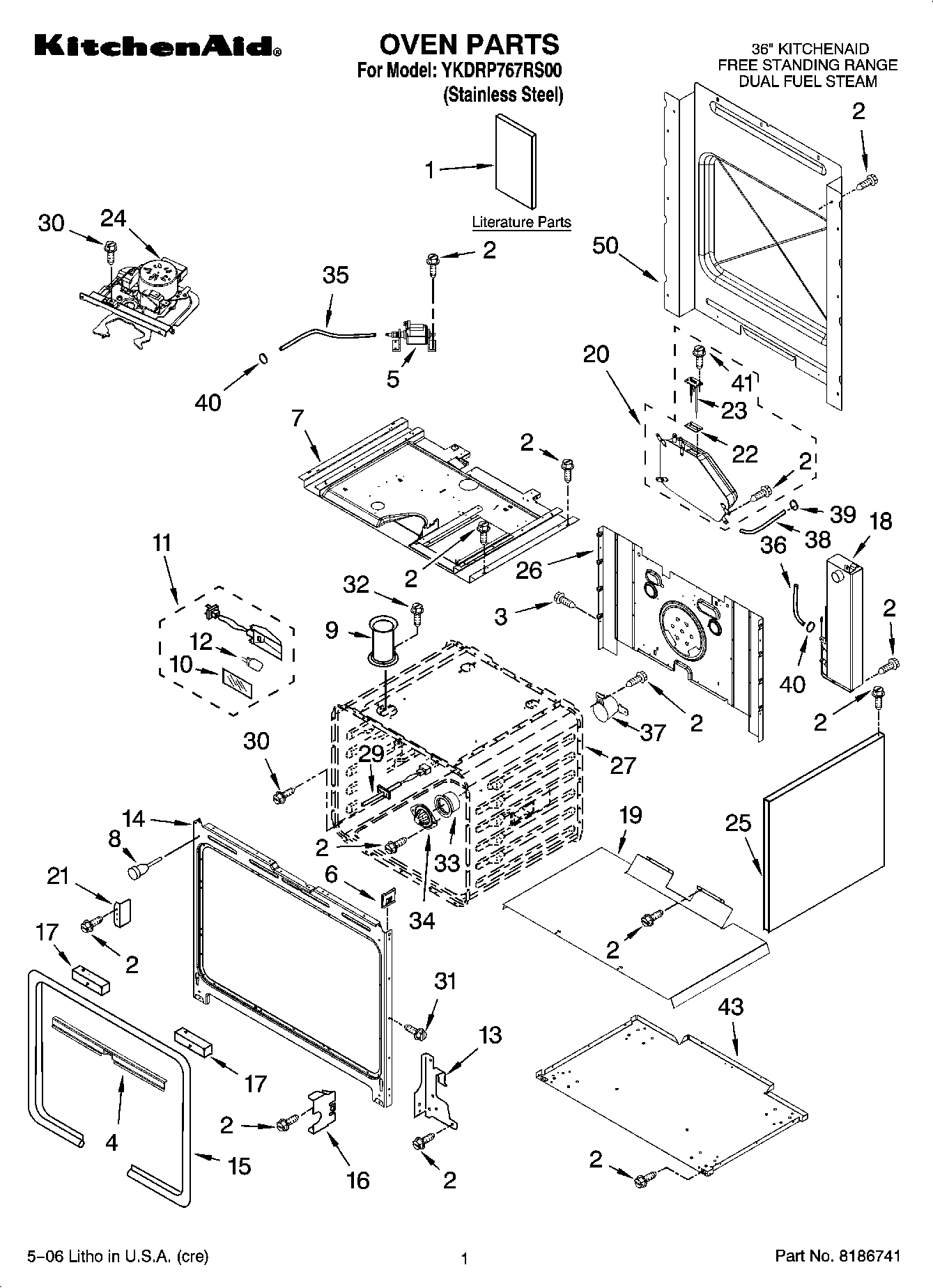

YKDRP767RS00 01 – OVEN PARTS

YKDRP767RS00 01 – OVEN PARTS

Written by

in

YKDRP767RS00 01 – OVEN PARTS

Products

PositionProduct
1Installation Instructions
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Tech Sheet
1Conversion Instructions
1Tech Sheet (French)
1Use & Care Guide
2WP4449809 Whirlpool Screw
3WP4449743 Whirlpool Screw
4Retainer, Gasket
58186360 Whirlpool Oven Drain Pump
6WP4450118 Whirlpool Nut
7Top, Chassis
8W10105790 Whirlpool Bumper
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13WP4455605 Whirlpool Left Hand Hinge
13WP4455606 Whirlpool Right Hand Hinge
14Frame, Front
15W10858111 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
17Spacer, Foam
188186352 Whirlpool Boiler
19Support, Insulation
20Reservoir (Includes Clamps)
21Bracket, Support
22Gasket, Sensor
23Sensor, Level
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4449154 Whirlpool Screw
31Screw
32SCREW
33Orifice, Boiler Slip Fit
34Cover, Orifice Boiler
358186365 Whirlpool Oven Hose
368186366 Whirlpool Oven Hose
37WP4450249 Whirlpool Thermostat
388186367 Whirlpool Oven Hose Assembly
40WP489503 Whirlpool Refrigerator Clamp
41Screw
43Base, Chassis
50WPL 9758583
50Insulation, Back
50Insulation, Wrap
50FOLLOWING PARTS NOT ILLUSTRATED INSULATION
