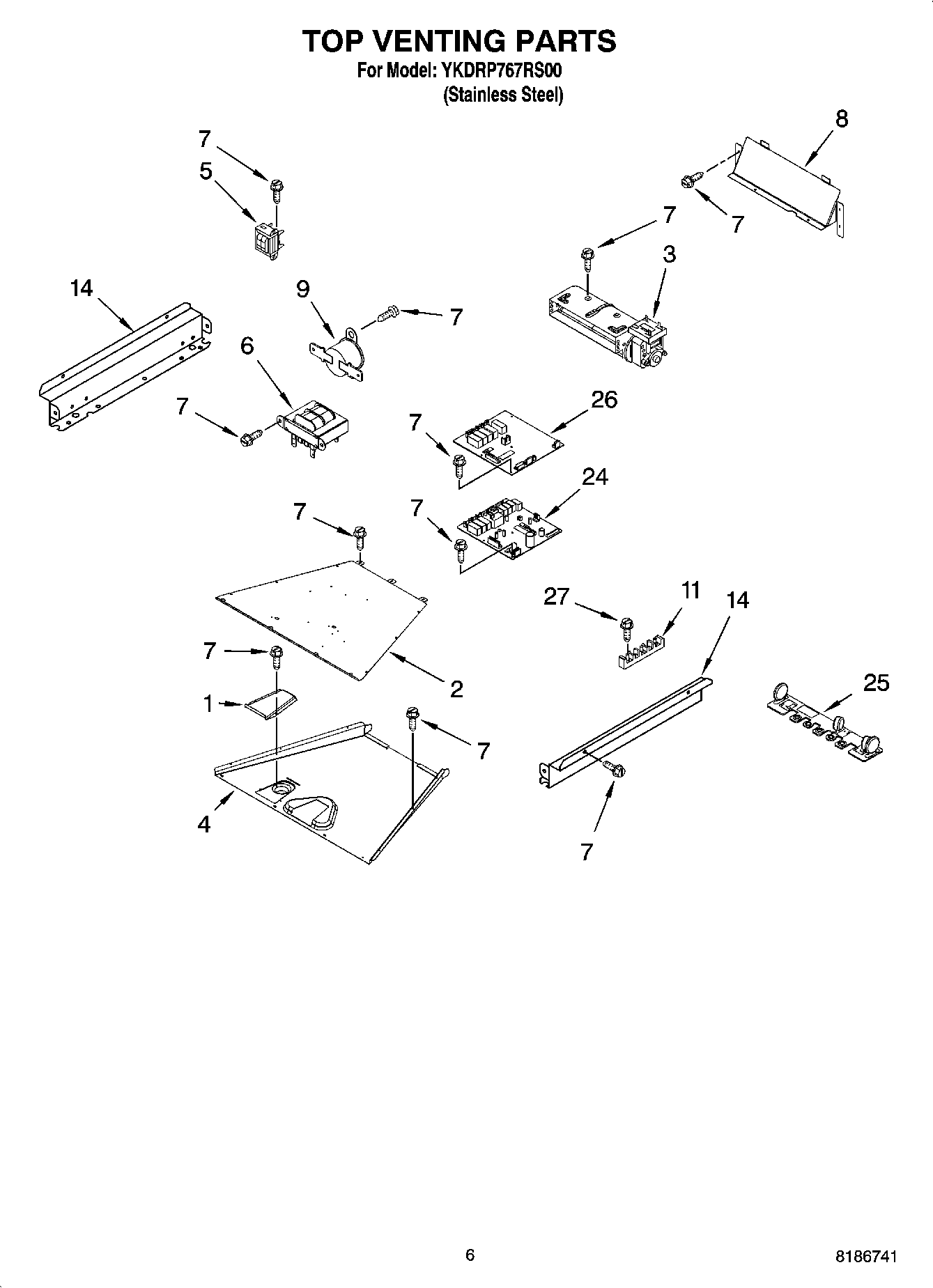

YKDRP767RS00 05 – TOP VENTING PARTS

Written by

Products

Position	Product
1	Vent, Exhaust
2	Vent-Top
3	Blower 60MM
4	Vent-Bottom
5	WP9760588 Whirlpool Transformer
6	Transformer, Control
7	WP4449809 Whirlpool Screw
8	Bracket, Blower
9	9758999 Whirlpool Oven Thermal Fuse
11	WP8203546 Whirlpool Terminal Block
14	Side, Control Top (R.Hand)
24	Control, Taurus (Appliance Mngr)
25	SUPPRESSOR
26	Control, Steam
27	4450800 Whirlpool Oven Screw
