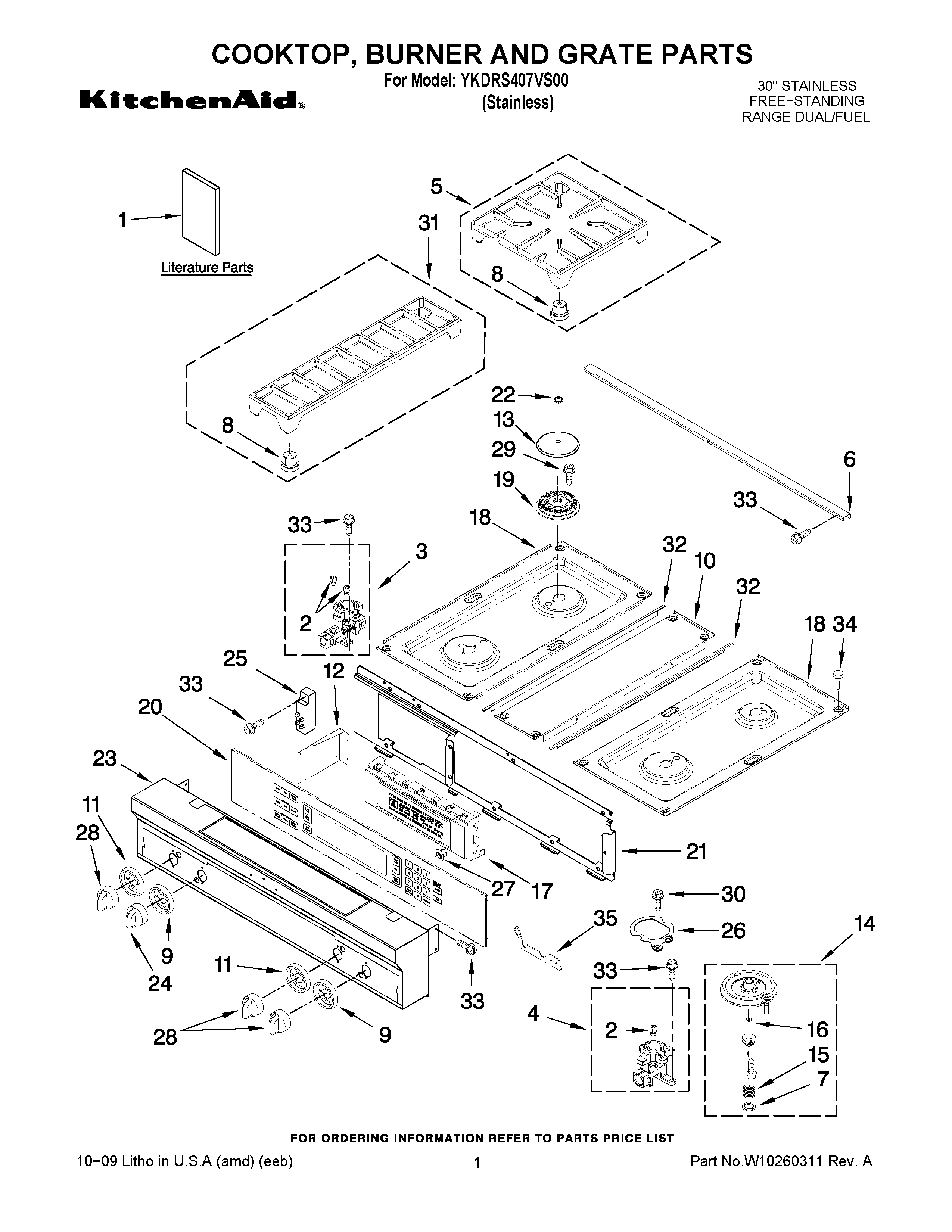

YKDRS407VS00 01 – COOKTOP, BURNER AND GRATE PARTS

YKDRS407VS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

YKDRS407VS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1TECH SHEET (ENGLISH)
1USE & CARE GUIDE
2ORIFICE (LEFT REAR & RIGHT FRONT)
2ORIFICE (LEFT FRONT, LOW)
2ORIFICE (LEFT FRONT, HIGH)
2W10791075 Whirlpool Orifice Spud
3WPW10160187 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
4W10282659 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269218 Whirlpool Trim Top
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10189105 Whirlpool Cooktop
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WPW10160229 Whirlpool Burner Cap
13WP8286816 Whirlpool Burner Cap
13WPW10115952 Whirlpool Burner Cap
14WPW10320937 Whirlpool Burner Top
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
158286863 Whirlpool Oven Clip
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
16WPW10160235 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
16WPW10250406 Whirlpool Surface Igniter
17WPW10298119-includeCORE Whirlpool WPW10298119 Refrigerator Electronic Control Board with Core
18W10282192 Whirlpool Cooktop Assembly
18COOKTOP (LEFT)
19WPW10250459 Whirlpool Burner Head
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
19BURNR-HEAD
20WPW10116104 Whirlpool Membrane Switch
21W10250476 Whirlpool Mounting Bracket
22W10115953 Whirlpool Nut
23WPW10115889 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10491985 Whirlpool Screw
31W11241670 Whirlpool Grill Grate
32W10271524 Whirlpool Trim Top
33SCREW
344448520 Whirlpool Oven Bumper
35W10130759 Whirlpool Mounting Bracket
35W10130760 Whirlpool Bracket Mounting
