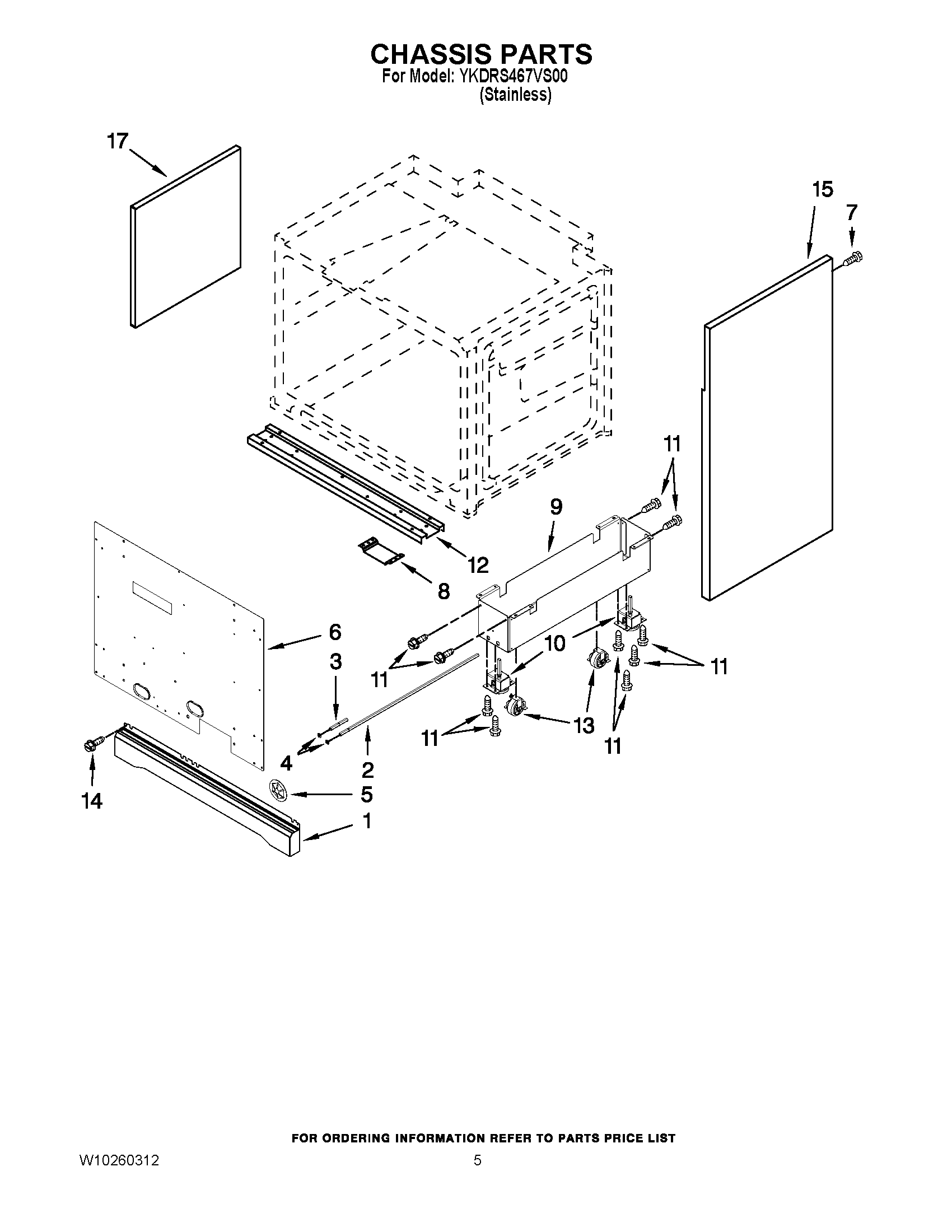

YKDRS467VS00 03 – CHASSIS PARTS

Products

Position	Product
1	WPW10225970 Whirlpool Oven Vent
2	W10115869 Whirlpool Shaft
3	W10115793 Whirlpool Shaft
4	489504 Whirlpool Oven Ring
5	WP3400968 Whirlpool Nut
6	W10269196 Whirlpool Duct
8	W10115850 Whirlpool Mounting Bracket
9	W10249333 Whirlpool Dishwasher Mounting Bracket
10	W10859931 Whirlpool Foot Level
11	WP4449743 Whirlpool Screw
12	W10269193 Whirlpool Support
13	WPW10138054 Whirlpool Refrigerator Cabinet Roller
14	WP3196557 Whirlpool Screw
15	WPW10250465 Whirlpool Cabinet Panel
15	W11333303 Whirlpool Side Complete Assembly
17	W10269205 Whirlpool Side Compartment
17	W10269206 Whirlpool Side Compartment
