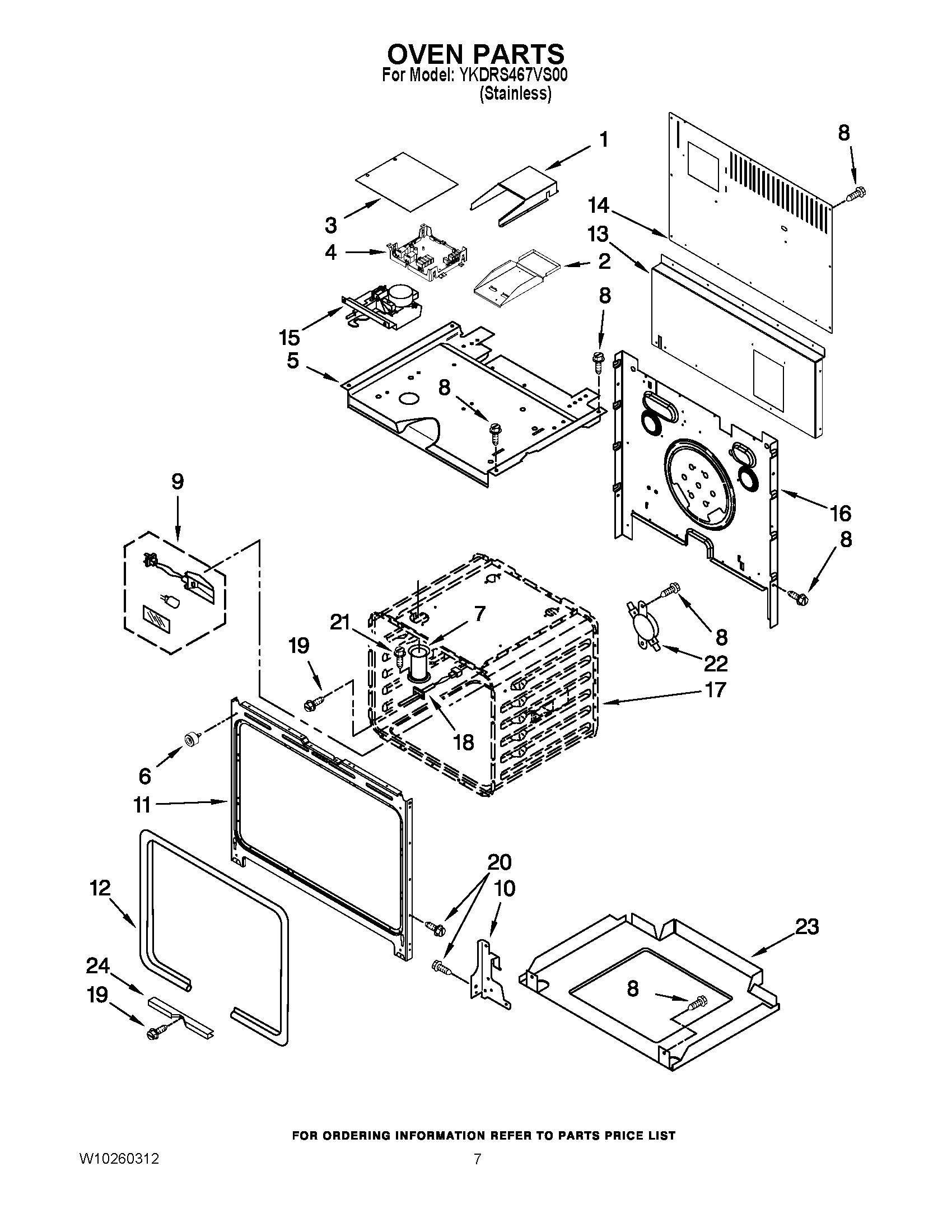

YKDRS467VS00 05 – OVEN PARTS

Products

Position	Product
NI	W10160807 Whirlpool Insulation
NI	Insulation, Wrap
1	ASSEMBLY, DRAWER
2	SUPPORT, CONTROL
3	W10239444 Whirlpool Foam Seal
4	WPW10116185 Whirlpool Electronic Control Board
5	TOP, CHASSIS
6	W10105790 Whirlpool Bumper
7	TUBE, VENT
8	SCREW
9	WPW10307114 Whirlpool Light
10	WP4455606 Whirlpool Right Hand Hinge
10	WP4455605 Whirlpool Left Hand Hinge
11	W10160867 Whirlpool Front Frame
12	W11676901 Whirlpool Range Gasket
13	PANEL, BACK BOTTOM
14	W10269208 Whirlpool Rear Cover
15	W11029221 Whirlpool Door Latch
16	BACK, CHASSIS
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10131825 Whirlpool Oven Temperature Sensor
19	WP4449154 Whirlpool Screw
20	Screw
21	SCREW
22	WP4449751 Whirlpool Range Oven Thermostat Fix
23	W10235536 Whirlpool Main Bottom
24	W11368870 Whirlpool Retainer Assembly
