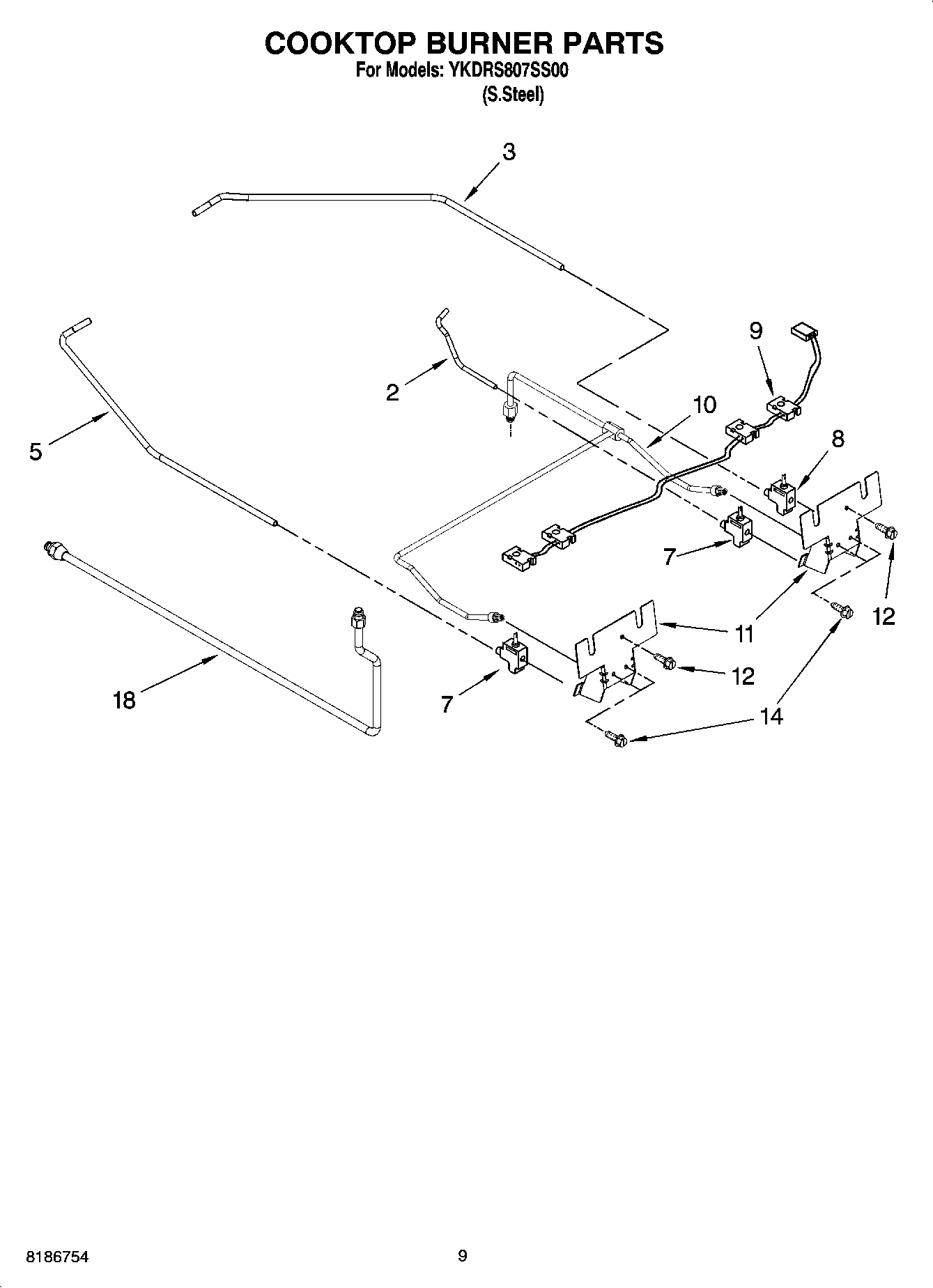

YKDRS807SS00 06 – COOKTOP BURNER PARTS

Written by

Products

Position	Product
2	TUBING, BURNER(RF)
3	TUBING, BURNER(RR)
5	TUBING, BURNER(LR)
7	WP4456816 Whirlpool Burner Valve
8	WP4456817 Whirlpool Burner Valve
9	WP9756824 Whirlpool Wire Harness
10	Tube, Manifold
11	9761642 Whirlpool Manifold Pipe
11	9761641 Whirlpool Oven Manifold Pipe
12	WP3196557 Whirlpool Screw
14	WP3186217 Whirlpool Screw
18	Tubing DF to Regulator
